Phocos Any-Bridge Quick Start Manual

Any-Bridge
Remote Monitoring & Control Gateway
Product Introduction

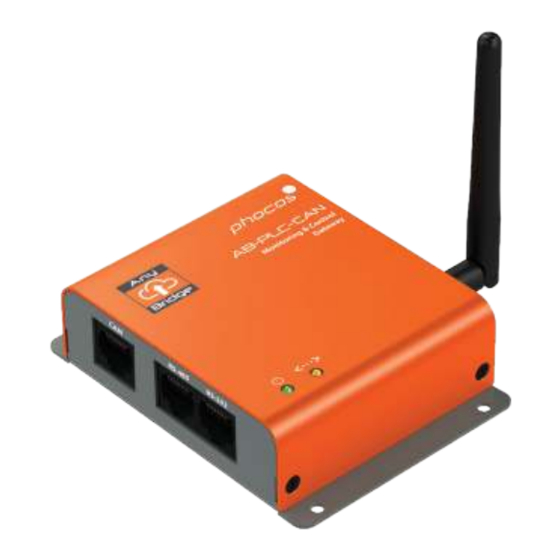

The Any-Bridge™ AB-PLC-CAN Monitoring & Control Gateway
allows access to your Phocos power system via the PhocosLink
Cloud portal.
Attaching to an internet-connected router through the Wi-Fi
or Ethernet LAN port on the Any-Bridge gives you access to
the PhocosLink Cloud portal enabling rich visual access to your
system from anywhere in the world.
Remote monitoring via the PhocosLink Cloud allows for quick
and easy system diagnostics improving system reliability and
minimizing the need for costly site visits.
Technical Data
Type
Wired Interfaces
Wi-Fi Standards
Wi-Fi Range
BLE Standard
BLE Range
Dimensions (WxHxD)
Weight
Certifications
* Wi-Fi range can vary based on building materials, antenna orientation and other factors.
** Free introductory access limited to 24 months from date of PhocosLink Cloud account
creation.
Remote Monitoring: Any-Bridge
Any-Grid TM PSW-H
www.phocos.com
TM & PhocosLink Cloud
•
Portal
Any-Bridge
RS-232, RS-485, CAN bus, solid-state
relay driver (≤ 12 mA, approx. 5 Vdc)
802.11b/g/n, 2.4 Ghz
Approx. 46 m / 150 feet indoors*
V4.2
Approx. 10 m, line-of-sight
77 x 105 x 28.2 mm / 3 x 4.1 x 1.1 in
235 g / 0.52 lbs
CE compliant
TM
AB-PLC-CAN Monitoring & Control Gateway Via The PhocosLink Cloud Portal
Technical Drawing
28.2 mm
105 mm
Product Features
• Free introductory access to the PhocosLink Cloud service**
• Compatible with all Any-Grid™ PSW-H Inverter/Chargers
• Connect up to 3 units of Any-Grid PSW-H
• RS-232, RS-485, CAN bus, Ethernet, Wi-Fi and BLE interfaces
• No external power supply required
• External antenna for extended wireless range
• Remote access of system status,
operation mode, and system faults
• Historical and real time data access
for key PV, AC source, battery, load
and inverter/charger parameters
Router/
PhocosLink
Internet
Cloud
Subject to change without notice
77 mm
PhocosLink
Mobile App
Computer &
Mobile Devices
Version: 2022-07-14
