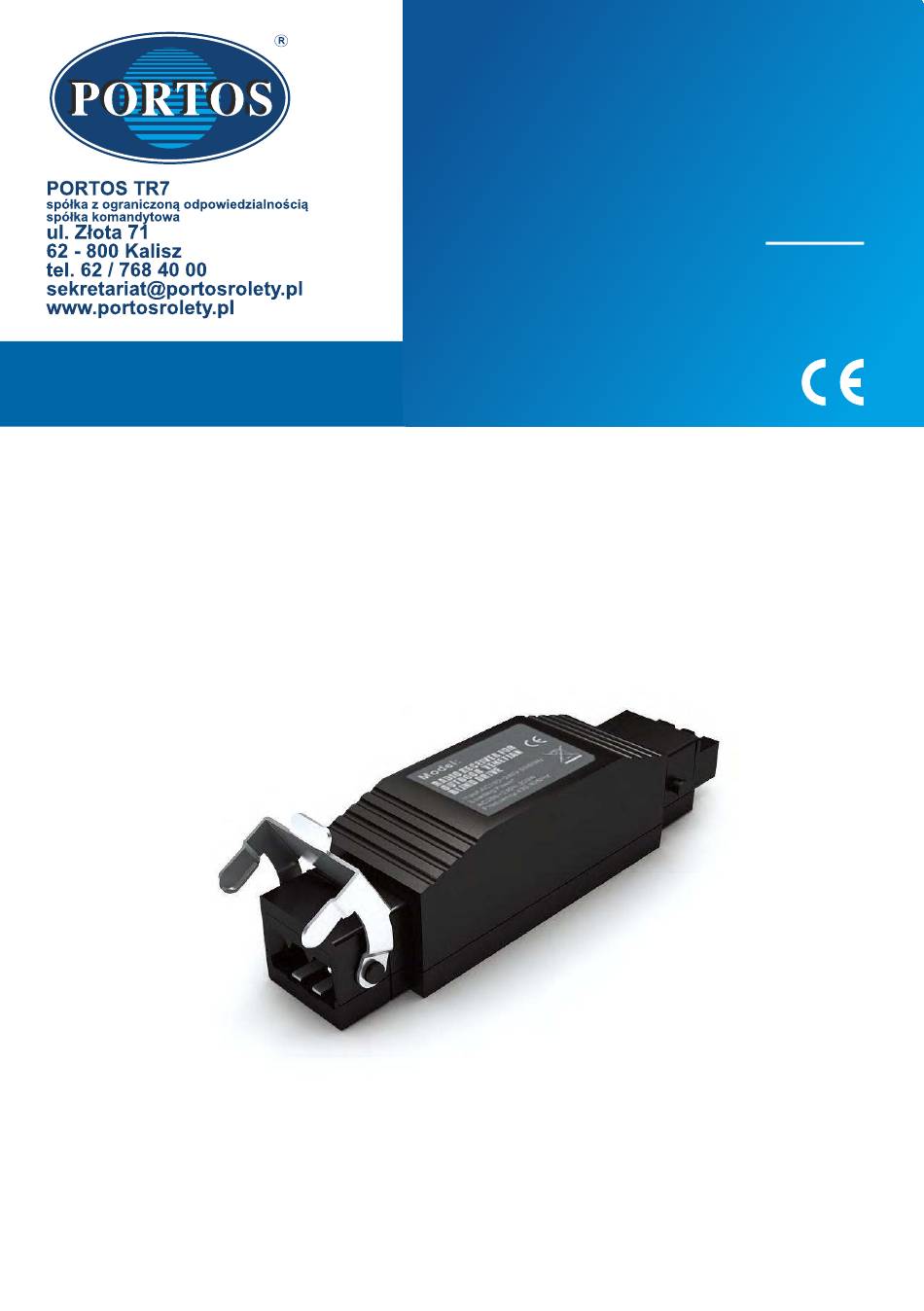

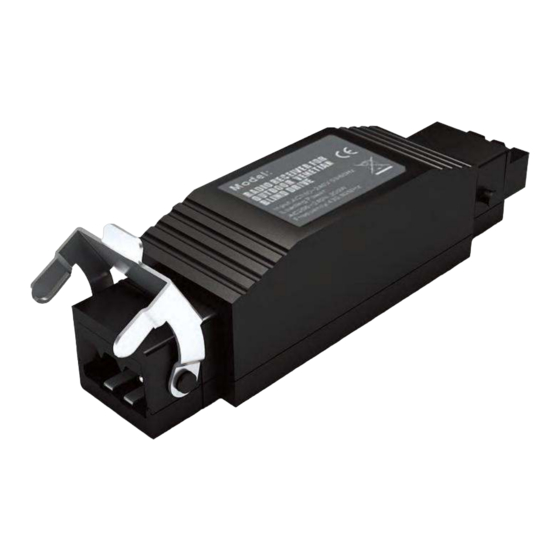

- Page 1 User's manual A-OK of an receiver The operating frequency of the receiver is 433MHz...
- Page 2 1. Connection scheme: The receiver shall be connected to the Hirschmann plug socket (STAS 3) installed in the motor. On the other side of the receiver, the power cord ended with the Hirschmann plug (STAK 3) shall be connected as per the scheme. Connection scheme of the radio receiver: The receiver connector Neutral...
- Page 3 3. Configuration of another remote control/ channel duplication: 1. Press and hold the 'stop' button for 5 seconds on the already programmed remote control - the UP/DOWN motor movement will confirm successful performance of the operation. 2. On the new remote control/ another channel, press the 'up' button - the UP/DOWN motor movement will confirm successful performance of the operation.
- Page 4 6. Resetting the programmed remote control: 1. Press and hold the 'stop' button for 5 seconds on the already programmed remote control - the UP/DOWN motor movement will confirm successful performance of the operation. 2. Press the configuration button at the back of the remote control. PROG.
- Page 5 7 seconds 8. Setting the preferable position: 1. Press the 'configuration' button at the back of the remote control - the UP/DOWN motor movement will confirm successful performance of the operation. 2. Using the 'up' and 'down' buttons, set the preferable position of the roller shutter. 3.
- Page 6 PROG. 10. Cancelling the preferable position: 1. Press the 'stop' button so that the roller shutter moves to the currently preferable position. 2. Press and hold the 'configuration' button at the back of the remote control for over 7 seconds - once the button is pressed, the motor will move up/down, next after 7 seconds another UP/DOWN motor movement will confirm successful cancellation of the preferable position.
- Page 7 WARNING - FOR THE SAFETY OF PEOPLE, IT IS IMPORTANT TO FOLLOW THESE USER'S INTRUCTIONS. KEEP THESE USER'S MANUAL AT ALL TIMES. PORTOS TR7 spółka z ograniczoną odpowiedzialnością s. k.
