User Manual
M3310 HMI Controller
Document Number: 160317ENG
Language: ENG
Date: 17 March 2016
Machine code: NR5109, NR5109A02
Marel Iceland ehf
Austurhraun 9
IS-210 Gardabaer
Iceland
+354 563 8000
www.marel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Marel M3310

  • Page 1 User Manual M3310 HMI Controller Document Number: 160317ENG Language: ENG Date: 17 March 2016 Machine code: NR5109, NR5109A02 Marel Iceland ehf Austurhraun 9 IS-210 Gardabaer Iceland +354 563 8000 www.marel.com...
  • Page 2 Information in this document is subject to change without further notice, and does not represent a com mitment by Marel Iceland ehf. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying or otherwise, without the prior written permission of Marel Iceland ehf.
  • Page 3 STANDARD SAFETY AND WARNING NOTICE FOR ALL MAREL EQUIPMENT All persons involved in the use and/or installation of this machinery should be aware of the following instruc tions. Failure to follow these instructions or other safety instructions in the manual voids all warranties and may res ult in malfunction of the machinery, property damage, serious personal injury, or death.
  • Page 5: Table Of Contents

    Contents Introduction About This Manual Improvements and Customer Support Warranty Information Technical Specifications The M3310 HMI Controller About the M3310 HMI Controller Initial Inspection Mounting Optional Wall and Table Mounting Cleaning Cleaning Materials Used in Marel Equipment Water and Temperature...
  • Page 6 M3310 HMI Controller User Manual 160317ENG...
  • Page 7: Introduction

    The M3310 HMI Controller User Manual describes the main mechanical characteristics of the M3310 HMI Controller, containing descriptions of the controller´s basic components and instructions how to use its basic functions. The manual is intended to assist you in installing and operating the M3310 HMI Controller con troller. NOTE Before you install or use the unit, make sure you read and understand the warnings and the warranty agreement.
  • Page 8: Technical Specifications

    M3310 HMI Controller User Manual Introduction Technical Specifications Figure 1 The measurements for M3310 HMI Controller Manufacturer: Marel ehf. Dimensions: Outer 408 x 366 x 120 mm (16 1/16 x 14 7/16 x 4 3/4 )" (W x H x D) dimensions w.
  • Page 9 Introduction M3310 HMI Controller User Manual 2 x ISO 11898 4 x USB 2.0 (2 internal: 2 external) Power: Voltage 24 VDC Battery backup 4.7V 1500 mAH Current 0.6 A max. at 24 VDC. consumption Typical requirement without external USB devices is 0.5 A.
  • Page 10 M3310 HMI Controller User Manual Introduction 160317ENG...
  • Page 11: The M3310 Hmi Controller

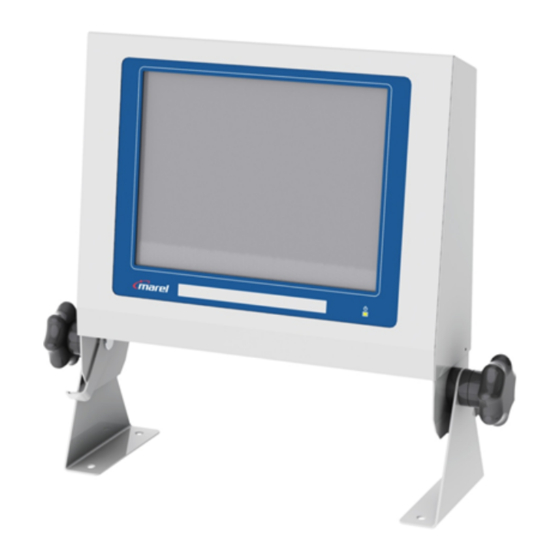

    LCD display. The M3310 HMI Controller is powered by CAN bus. Figure 2 M3310 HMI Controller, front view The M3310 HMI Controller is built on a Freescale ARM technology and runs a Linux real-time operating system that offers a range of connections to other equipment:...
  • Page 12: Initial Inspection

    M3310 HMI Controller User Manual The M3310 HMI Controller The M3310 HMI Controller includes stainless steel wall brackets with a tilting option. These bracket can be fastened with screws to other equipment or onto a tabletop. The controller is supplied with standard mounting lugs. Various other mounting solutions are supported.
  • Page 13: Mounting

    M3310 HMI Controller User Manual Mounting The M3310 HMI Controller is similar to the M3210 indicator. In fact, the lower part and mount ings are the same. All mounting options for the M3210 can therefore be used for the M3310.
  • Page 14 M3310 HMI Controller User Manual The M3310 HMI Controller 160317ENG...
  • Page 15: Cleaning

    Request technical advice from a reputable sanitizer manufacturer, if you have questions on which sanitizer to use, as well as questions on the appropriate solution strength.  It is very important that the M3310 HMI Controller is thoroughly cleaned every day after operation.
  • Page 16: Materials Used In Marel Equipment

    M3310 HMI Controller User Manual Cleaning Materials Used in Marel Equipment The materials listed here are common in Marel equipment. Use the list to determine the chemical tolerance of individual parts of the equipment. NOTE Specific recommendations on types and strength of solutions used for cleaning or san itization should, at all times, come from a qualified distributor of cleaning solutions.
  • Page 17: Detergents

    Detergents The pH value of detergents used on Marel equipment should preferably be pH 12-13. Strong base solutions are the main ingredients in most cleaning agents, for example potassi umhydroxid (KOH) or caustic soda (NaOH). Because of its corrosive effects, caustic soda is not a desirable detergent for Marel equipment.
  • Page 18: Training Staff

    After cleaning and sanitizing, make sure that all surfaces dry as well as possible. Special Cleaning Instructions NOTE Cross-contamination can easily occur if clean surfaces come in contact with other less clean surfaces. Cleaning the touch screen on the M3310 HMI Controller: 160317ENG...
  • Page 19 Cleaning M3310 HMI Controller User Manual Rinse the screen thoroughly every day of operation. Avoid continuous use of high-pressure jets on the touch screen. Instead, use low water pressure, or clean by hand and pour water over to rinse. 160317ENG...
  • Page 20 M3310 HMI Controller User Manual Cleaning 160317ENG...
  • Page 21: Parts Lists

    Parts Lists Mechanical Parts Figure 6 The rating plate on the M3310 HMI Controller NOTE Before contacting our service personnel or placing an order for spare parts, please note the serial number on the rating plate located on the upper enclosure.
  • Page 22 M3310 HMI Controller User Manual Parts Lists Figure 7 Main parts for the M3310 HMI Controller Item Item number Qty. Description 001-0028-1014 M3310 - Assembled lower enclosure 001-0028-A003 M3310 - Assembled upper enclosure 804-5200-0082 M3310 - Rating plate 160317ENG...
  • Page 23 Parts Lists M3310 HMI Controller User Manual Figure 8 M3310 HMI Controller, assembled lower enclosure Item Item number Qty. Description 001-0028-1003 M3310 - lower enclosure 001-0028-1013 M3310 - electronic base assembly (24 VDC) 160317ENG...
  • Page 24 M3310 HMI Controller User Manual Parts Lists Figure 9 M3310 HMI Controller, lower enclosure, details Item Item number Description 001-0009-1138 Assembled bottom 001-0009-2279 Handle knob ø60 001-0009-2277 Universal fastening bracket 001-0009-2285 Bolt for brake shim ø30 001-0009-2280 Brake shim ø30...
  • Page 25 Parts Lists M3310 HMI Controller User Manual Figure 10 M3310 HMI Controller, electronics assembly Item Item number Qty. Description 713-2608-1036022 Display AUO 10.4” G104XVN01.0 1024 x 768 LED 001-0028-A008 Mounting Bracket with fasteners 719-4403-0010 Battery 3.7V/1500 mAh (UP325385A4H) 740-7985-1005311 Screw M3 x 8...
  • Page 26: Electrical Parts And Diagrams

    M3310 HMI Controller User Manual Electrical Parts and Diagrams Electrical Parts and Diagrams 160317ENG...
  • Page 27: V391 Board And Connections

    Electrical Parts and Diagrams M3310 HMI Controller User Manual V391 Board and Connections eMMC: On-board hard disc storage Durability depends on disk mode SLC mode (60k P/E) MLC mode (3k P/E) Performance (20 MB write, 40MB read) Up to 64 Gigabytes available in same package...
  • Page 28 M3310 HMI Controller User Manual Electrical Parts and Diagrams Figure 11 V391 CPU board and connections 160317ENG...
  • Page 29: Index

    Index Acidity 11 CAN 3 Chlorine 9 strength 12 Cleaning daily 11 final inspection 12 M3210 display 12 water temperature 10 Consumption 3 Daily cleaning 11 Damages 6 Detergents choosing 11 use of 9 Diagrams, electrical 20 Dimensions 2 Disinfectants 11 Disk space 2 Display 2, 5 Electrical parts, diagrams 20...
  • Page 30 M3310 HMI Controller User Manual Index LCD display 5 Linux 5 M3000 indicator 7 M3210 display, cleaning 12 M3210, indicator 5 Micro-organisms, count 12 Monitor 5 Mounting bracket 7 Parts, electrical 20 Quaternary ammonium compounds (QACs) 11 Rating plate serial number 15...
