- Page 1 CPS-8910 Getting Started 2022-07-11...
- Page 2 Installing the CPS-8910 in a Rack........

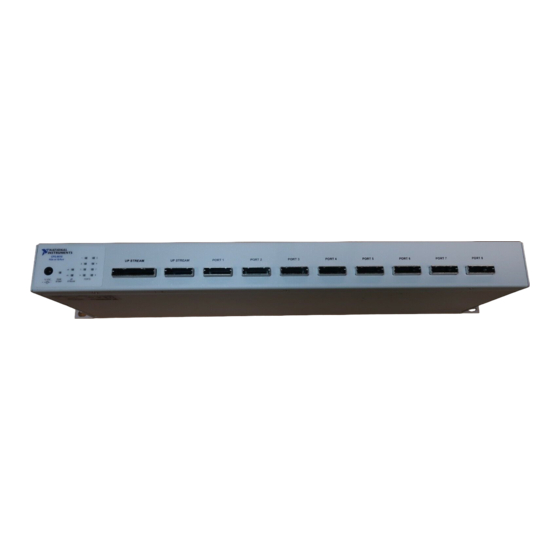

- Page 3 This document explains how to install the CPS-8910. CPS-8910 Description The CPS-8910 is a 1U rack-mountable PCI Express 10-port switch. It has a Gen 2 PCI Express x8 upstream port, a Gen 1 PCI Express x4 upstream port, and eight Gen 1 PCI Express x4 downstream ports to enable linking any PCI Express host to multiple expansion chassis or peripheral devices.
- Page 4 12 V, 24 W power supply ■ Note If you are using the CPS-8910 with fiber optic cables, you must purchase a 12 V, 50 W power supply with the proper connection from a different source. Refer to the Specifications section of this document for power supply connector information.
- Page 5 National Instruments could void your authority to operate it under your local regulatory rules. Installing the CPS-8910 in a Rack The CPS-8910 comes with adjustable rack-mount ears for front or rear-facing installation, as shown in the following figure. Complete the following steps to install the CPS-8910 and connect devices to it.
- Page 6 When mounting the equipment in the rack, do not create a hazardous condition due to uneven mechanical loading. 1. Mount the CPS-8910 in the desired position by installing the rack-mount ears and tightening the four rack-mounting screws as shown. Figure 2. CPS-8910 Rack-Mount Ear Installation 2.
- Page 7 NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. © National Instruments © 2022 National Instruments Corporation.
