Summary of Contents for XAiOX TrapScout SiRF III

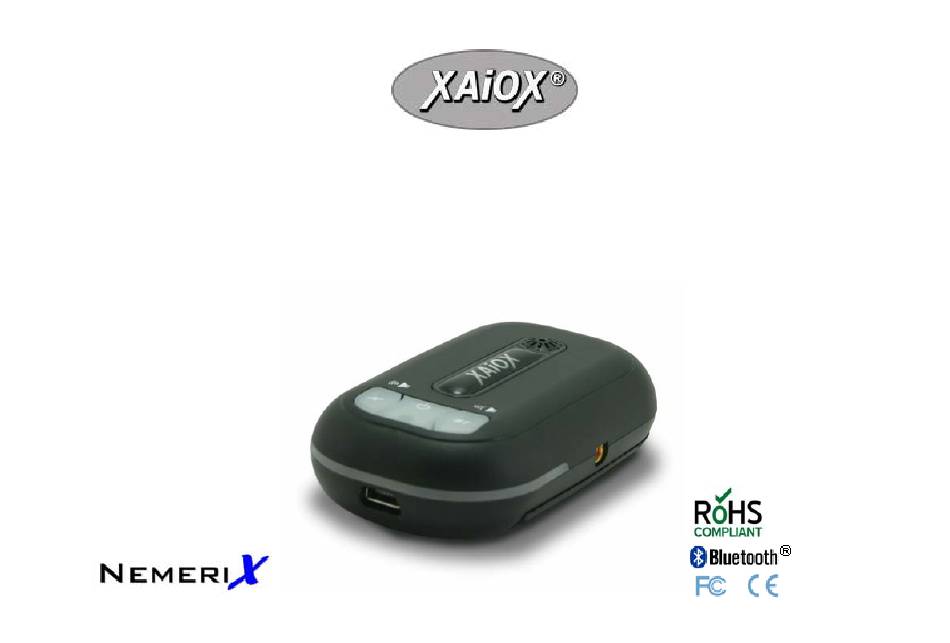

- Page 1 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver User’s Manual Bluetooth GPS Receiver XAiOX TrapScout SiRF III Speed Camera Detector Functionality and Voice Prompt Copyright©2007 XAiOX Technologies, USA All rights reserved...
-
Page 2: Table Of Contents
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver Table of contents 1. Introduction ……………………………………………….…………………………………………………………. 1.1 Read Me First ……………………….………………………………………………………………………. 1.2 Overview ……………………..……..…………………………………………………………………………. 1.3 Features ……………………………………………………………………………………………………………………… 2. Hardware Description ………..………………………………………..……………………………………… 3. Box Contents ……………………..………………………………………………………………………………… 4. Volume control/Database update …………………………………………..………………………….. 5. Auto Power ON/OFF ………………………………………………………………………..……………………... -
Page 3: Introduction
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver 1. Introduction 1.1 Read Me First • The battery must be charged for at least 8 hours for ‘INITIAL’ use. The LED2 (GREEN) will turn off after 3 hours’ charging, please keep on charging for 5 more hours. Thereafter, for each time charging the battery, please fully charge for 3 hours. -
Page 4: Features
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver 1.3 Features • 16-Channel-Tracking • Cold-/Warm-/Hot-Start: 45/38/6 seconds • Reacquisition-Time: 1 second • Supported Standard NMEA-0183 • Compatible with Bluetooth-Devices with Serial Port Profile (SPP) • Small, slim and lightweight device that fits well in your hand •... -
Page 5: Hardware Description
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver 2. Hardware Description Status-Tabelle Colour Status LED1 RED OFF GPS not yet fixed RED FLASHING GPS fixed. Will transfer data, when BT connection is on. LED2 GREEN ON Unit is switched on (flashing 1 x per second) - Page 6 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver GPS Bluetooth operates on OS with Bluetooth function that supports SPP In order to avoid any unexpected problem, DO NOT attempt to change the default baudrate...
-
Page 7: Box Contents
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver 3. Box Contents • XAiOX TrapScout Bluetooth GPS-Receiver • AC Adapter (220V/110V) • Car Charger (Input 12V, Output 5V) • 1100mA Lithium-Ion rechargeable battery • User’s manual (CD-ROM) • Gel Pad Holder... -
Page 8: Volume Control/Database Update
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver 4. Volume control/Database update 1. Volume up/Add data a. Volume up: press shortly the “volume up” button (notified by “beep” sound) b. Add data: press “volume up” button for 3 seconds 2. -
Page 9: Auto Power On/Off
6. Power OFF the XAiOX TrapScout Press power button for 1 second second to switch off the TrapScout. We strongly recommend that close the E-map before turning off the XAiOX TrapScout, in order to avoid any possible PDA /Smart phone freeze... -
Page 10: General Important Notes
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -10- 7. General Import Notes Car Charger At the tip of the car charger you find a removable cover (screw able). Behind this cover there is a changeable 1.5A-fuse. If you detect any malfunction please check this fuse first and replace it if necessary Installing your GPS Receiver to a PDA, Pocket-PC, Smart-Phone, etc. -
Page 11: Software-Installation - Pocket Pc Ce
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -11- 8. Connecting to your Bluetooth PDA 1. Turn on the TrapScout Press power button for 1 second, the LED2 (Power Status LED) and LED3 (Bluetooth Status) start blinking. 2. Activate Bluetooth function of your PDA / smart phone Before you are trying to activating the Bluetooth function of your PDA / smart phone, please make sure the device is equipped with Bluetooth function, and the driver software has been installed. - Page 12 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -12- Example: iPAQ Bluetooth with Pocket PC Software <1> Turn Bluetooth ON <2> Click ‚Connect!’ Select ‚Bluetooth Manager’ <3> Select ‚Explore a Bluetooth device’ <4> Select <No device selected>, Then click ‘Next’.
- Page 13 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -13-...
- Page 14 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -14- <5> Click ‚BT-GPS’ . <6> Select ‚SPP slave’, If you are asked to enter a then click ‚Next’. password, type ‚0000’.
- Page 15 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -15- <7> Click ‚Finish’. <8> Tap the Bluetooth icon again and BT-GPS connection is now select ‘Bluetooth setting’. established successfully.
- Page 16 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -16- <9> Settings for TomTom Navigation Software. You can use any free Serial COM Port (outgoing)
-
Page 17: Working Modes
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -17- 9. Working Modes Mode A: GPS + Bluetooth + Speed Camera Detector 1. Power on TrapScout by pressing power button for 1 second 2. “Bluetooth On” by voice alarm 3. Bluetooth status LED... - Page 18 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -18- b. 300 meters (or equivalent miles) (b.1) Notified by voice “300 meters (or XXX miles) ahead, a fix (or mobile) camera (b.2) LED alarm blinking quickly in turn (b.3) Noticed by voice “slow your speed” and LED alarm blinking quickly if over speed c.
-
Page 19: Modus B: Gps + Speed Camera Detector (Bluetooth Off)
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -19- Mode B: GPS + Speed Camera Detector (Bluetooth Off) 1. Power on TrapScout by pressing power button for 1 second. 2. Switch Bluetooth off by pressing power button for 1 second (please refer to remark D) 3. -
Page 20: Modus C: G-Maus + Speed Camera Detector (Bluetooth Off)
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -20- Mode C: G-Mouse + Speed Camera Detector (Bluetooth Off) The TrapScout can be used as a G-mouse by simply connecting to laptop PC via USB cable 1. Connecting TrapScout to laptop PC via USB cable, (USB to mini USB cable) please make sure that the Bluetooth is off 2. -
Page 21: Technical Specifications
User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -21- 2. Technical Specification GPS Chip: NEMERIX GPS Module Frequence: L1, 1575, 42 MHz C/A Code: 1,023 MHz Chip Rate Channels: Antenna: Built-in low noise patch antenna (External Antenna optional) Ext. Antenna Port... - Page 22 User’s Manual XAiOX TrapScout SiRF III Bluetooth GPS Receiver -22- Bluetooth Protocol: Bluetooth serial Communication: Distance up to 10 m NMEA-0183(V3.01) VTG, GGA, GSA,GSV,RMC GPS Protocol: 9600 bps (Data Bit: 8, Stop Bit: 1) Baudrate: Rechargeable 1000mA/h Lithium-Ion Battery Battery: And 5V DC Input Charging time: approx.
