Important Safety Instructions ......................2
Features at a Glance ...................................4
Installation ................................................5
Door Removal Instructions ..........................9
Installing Door Handles .............................11
Connecting Water Supply ..........................13
Controls ...................................................15
Automatic Ice Maker .................................17
www.frigidaire.com USA 1-800-944-9044
Great user manuals database on
&
Care
Refrigerator
TA B L E O F C O N T E N T S
Storage Features ......................................18
Storing Food and Saving Energy ................21
Normal Operating Sounds and Sights .........22
Changing the Filter ...................................23
Care and Cleaning ....................................25
Before you Call .........................................28
Major Appliance Warranty .........................30
UserManuals.info
www.frigidaire.ca Canada 1-800-265-8352
Advertisement
Table of Contents

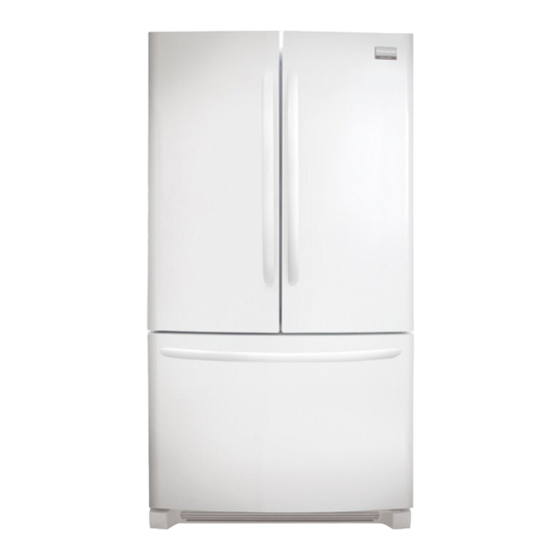

Related Manuals for Frigidaire FGUN2642LP
Summary of Contents for Frigidaire FGUN2642LP
-
Page 1: Table Of Contents
Changing the Filter ........23 Installing Door Handles ......11 Care and Cleaning ........25 Connecting Water Supply ......13 Before you Call .........28 Controls ...........15 Major Appliance Warranty ......30 Automatic Ice Maker .........17 www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352 Great user manuals database on UserManuals.info... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Installation Checklist WARNING Doors lease read all instructions before using this refrigerator. Handles are secure and tight For your Safety Door seals completely to cabinet on all sides • DO NOT store or use gasoline, or other ... - Page 3 IMPORTANT SAFETY INSTRUCTIONS refrigerators or freezers are still dangerous • Unplug the refrigerator before cleaning – even if they will sit for “just a few days”. If and before replacing a light bulb to avoid you are getting rid of your old refrigerator or electrical shock.
-
Page 4: Features At A Glance
SpillSafe Shelves Flipper Mullion Crisper Crisper Drawer Drawer Door Deli Drawer Adjustable *Ice Freezer Baskets Hinges Maker Grille IMPORTANT Features not included with your refrigerator can be purchased at www.frigidaire.com or by calling 1-800-944-9044. Great user manuals database on UserManuals.info... -
Page 5: Installation
INSTALLATION Required Tools You will need the following tools: Tools Necessary: (OR) Phillips™ Head or #2 Square Socket Adjustable 3/8" Fixed Drive Head Wrench Set Wrench Wrench Components Provided: CAUTION Top Hinge Top Hinge Cover Front Cover Rear Screw o Not install the refrigerator where the Screw temperature will drop below 55°F (13°C) or rise above 110°F (43°C). - Page 6 INSTALLATION Leveling Freezer Drawer (if To level the cabinet using the front rollers (select models): necessary) 1 Slightly open freezer drawer. Lift the 1 Check gasket seal around top, bottom, toe grille and gently pull forward (see and sides of freezer drawer. illustration).
- Page 7 INSTALLATION To adjust the door stop: 5 Retighten screw. Door stop is adjustable between 85 to 145 degrees. NOTE Rotate Door Stop View shown is looking up at the bottom of the refrigerator door. Lower Re-tighten Door Hinge Screw Stop Retighten Screw Open...
- Page 8 INSTALLATION 4 Lift the door while adjusting the washer. To adjust the flipper mullion: To raise the door, rotate washer clockwise 1 Loosen the screw located on the flipper (when viewed from the bottom). To lower mullion hinge. door, rotate washer counterclockwise (when viewed from the bottom). Flipper Mullion Screw...
-
Page 9: Door Removal Instructions
DOOR REMOVAL INSTRUCTIONS Getting through narrow spaces NOTE If your refrigerator will not fit through an entrance area, you can remove the doors. Check first by measuring the entrance. DO NOT remove the ground screw from hinge. To prepare for removing the doors: 1 Make sure the electrical power cord is To remove the refrigerator doors: unplugged from the wall outlet. - Page 10 DOOR REMOVAL INSTRUCTIONS Installing Freezer Drawer NOTE 1 With lower slides pulled out, hang drawer onto slide brackets ensuring pins on each You will be pulling approximately three (3) side are fully inserted into slots on each side. feet of water tube from the back of the refrigerator.
-
Page 11: Installing Door Handles
INSTALLING DOOR HANDLES Door Handle Mounting Instructions for Frigidaire Gallery ® 1 Remove handles from carton and any other protective packaging. 2 Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door. - Page 12 INSTALLING DOOR HANDLES Door Handle Mounting Instructions for Frigidaire Professional ® 1 Remove handles from carton and any other protective packaging. 2 Position fresh food handle end over upper and lower pre-installed shoulder bolts (A) that are fastened into door, ensuring the holes for the set screws are facing towards the opposite door.
-
Page 13: Connecting Water Supply
6 ft. Stainless Steel Water Line) and for manufacturer will not be responsible for homes without an existing valve, Frigidaire any damage if plastic tubing is used for recommends its Smart Choice water line ®... - Page 14 CONNECTING THE WATER SUPPLY To Connect Water Supply Line To Ice Maker Steel Plastic Water Inlet Valve Clamp Tubing to Ice Brass Maker Fill 1. Disconnect refrigerator from electric power Compression Tube source. 2. Place end of water supply line into sink or Ferrule bucket. Turn ON water supply and flush (Sleeve)
-
Page 15: Controls
CONTROLS IQ-Touch A red indicator light will be illuminated above most active features. Touch the icon to activate the options below. quick ice Increases the production of ice water filter Press and hold for three (3) seconds to reset after filter change. - Page 16 CONTROLS IQ-Touch “Sabbath Mode” The Sabbath Mode is a feature that disables portions of the refrigerator and its controls in accordance with observance of the weekly Sabbath and religious holidays within the Orthodox Jewish community. Sabbath Mode is turned ON and OFF by pressing and holding both the freezer “∨” and refrigerator “∧” indicators for five (5) seconds. The display shows “Sb” while in Sabbath mode.
-
Page 17: Automatic Ice Maker
AUTOMATIC ICE MAKER ( select models Ice maker operation & care • The following sounds are normal when the ice maker is operating: After the refrigerator is installed properly, the - Motor running ice maker can produce ice within 24 hours. It can completely fill an ice bin in about three (3) - Ice dropping into ice bin days. -
Page 18: Storage Features
STORAGE FEATURES Crispers CAUTION Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. - Page 19 STORAGE FEATURES Deli drawer 6 Place bin liner into bin. Ideal for storage of deli meats and cheese. Accessories (varies by model) Dairy compartment Doors Storage bins Use the dairy compartment, at the top of the fresh food compartment door, for short-term The doors to your fresh food compartment use storage of cheese, spreads, or butter.
- Page 20 STORAGE FEATURES To Remove Upper Basket Middle Basket Divider 1 Remove all items from basket. 2 Remove basket by pulling baskets out to their full extension and lift out. Retainers Stabilizer Middle Basket Divider Lift up on the rear of the lower divider and pull out. Lower Basket Divider Removing Upper Basket...
-
Page 21: Storing Food And Saving Energy
STORING FOOD AND SAVING ENERGY Ideas for storing foods designated for the freezer will be preserved as quickly as possible. Fresh food storage • Activating “quick freeze” also will help your freezer more efficiently maintain the • Keep the fresh food compartment selected temperature after placing new between 34° F and 40° F with an optimum purchases with pre-existing frozen foods. -
Page 22: Normal Operating Sounds And Sights
NORMAL OPERATING SOUNDS AND SIGHTS Understanding the NOTE sounds you may hear Your new, high-efficiency refrigerator may Energy efficient foam in your refrigerator is introduce unfamiliar sounds. These sounds not a sound insulator. normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more NOTE noticeable. -
Page 23: Changing The Filter
To order your replacement filters, please visit our in connector at the back of the housing. online store at www.frigidaire.com/store, by calling 5 Push firmly until the cartridge snaps toll-free at 877-808-4195, or by visiting the dealer into place (you should hear a click as the cartridge engages the snap-in where you purchased your refrigerator. - Page 24 5 Press and hold the Air Filter Reset button on the control panel for three (3)seconds. When the display changes from “Replace” to “Good,” the status has been reset. 6 The Air Filter Reset will turn itself off after a few seconds. Ordering replacement filters Order new filters by calling 877-808-4195, online at www.frigidaire.com/store, or through the dealer where you bought your refrigerator. You may want to consider ordering extra filters when you first install your refrigerator. Air Filter Replacement cartridge, part #PAULTRA Great user manuals database on UserManuals.info...
-
Page 25: Care And Cleaning
CARE & CLEANING Protecting your investment Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. NOTE Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. - Page 26 CARE & CLEANING Care and cleaning tips Part Cleaning Agents Tips and Precautions Interior & • Soap and water • Use two (2) tablespoons of baking soda in one (1) Door Liners quart of warm water. • Baking soda and water • Be sure to wring excess water out of sponge or cloth before cleaning around controls, light bulb or any electrical part.
- Page 27 3 Remove light cover, if necessary. The fresh food compartments of your refrigerator 4 Unscrew and replace old bulb with an may have LED lights. Always use Frigidaire parts appliance bulb of the same type and for replacement. wattage (normally 40 watts).
-
Page 28: Before You Call
BEFORE YOU CALL 1-800-944-9044 (United States) Visit our web site at www.frigidaire.com 1-800-265-8352 (Canada) CONCERN POTENTIAL CAUSE COMMON SOLUTION AUTOMATIC ICE MAKER Ice maker is • Ice maker power switch • Turn power switch to On (“I”) posi- not making is Off. - Page 29 DIGITAL TEMPERATURE DISPLAY Digital temper- • Electronic control • Call your Frigidaire service representative, ature displays system has detected a who can interpret any messages or num- are flashing. performance problem. ber codes flashing on the digital displays. WATER/MOISTURE/FROST INSIDE REFRIGERATOR Moisture col- •...
-
Page 30: Major Appliance Warranty
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice. Canada 1.800.944.9044 1.800.265.8352 Frigidaire Electrolux Canada Corp. 10200 David Taylor Drive 5855 Terry Fox Way Charlotte, NC 28262 Mississauga, Ontario, Canada...
