- Page 1 ALF-SUK2 HDMI 2.0 1x2 Splitter with Audio De-embedded...
- Page 2 ALF-SUK2 Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 ALF-SUK2 SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
ALF-SUK2 Table of Contents 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Packing List ....................... 2 2. Technical Specification ....................3 3. Panel Description ......................5 3.1 Front Panel ......................5 3.2 Rear Panel ......................5 3.3 Usage Precaution ....................6 3.4 System Diagram .................... -
Page 5: Product Introduction
ALF-SUK2 1. Product Introduction The ALF-SUK2 is an HDMI 2.0 splitter with one HDMI input and two HDMI outputs, for high dynamic range (HDR) formats. It is HDCP 2.3 compliant, supports 4K / UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. -
Page 6: Packing List
ALF-SUK2 1.2 Packing List 1x ALF-SUK2 1x Power Adapter (5V DC 2A) 4x Plastic Cushions 2 x Mounting ears with 4 screws 1 x 5 Pins phoenix terminal 1x User Manual Note: Please contact your distributor immediately should any damage or defect in the... -
Page 7: Technical Specification
ALF-SUK2 2. Technical Specification Video One HDMI in, two HDMI out Connector Type-A female HDMI HDMI Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard 420, 422, 444 (10 and 12 Deep Colour) HDR Formats HDR10, HDR10+, DOLBY VIDION, HLG Deep Colour... - Page 8 ALF-SUK2 Power Consumption 2W (Max) Dimension (W*H*D) 120 mm x 21mm x 75mm Net Weight Note: Please use a high-quality HDMI cable fully compliant with HDMI 2.0 for reliable transmission and connection.
-
Page 9: Panel Description

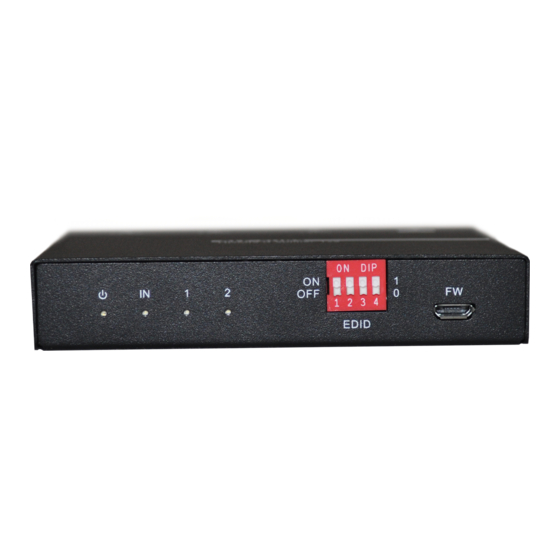

ALF-SUK2 3. Panel Description 3.1 Front Panel Name & Description Remark Power LED indicator The LED illuminates RED when it is powered on. HDMI input LED indicator The LED illuminates GREEN when the input is connected HDMI output LED indicator... -
Page 10: Usage Precaution
ALF-SUK2 System Connection 3.3 Usage Precaution Ensure all components and accessories are included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 11: Dip Switch Operation
ALF-SUK2 4. DIP Switch Operation 4.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with different capabilities are connected to the splitter, the DIP switch on the front panel can be used to set the EDID to a fixed value to ensure the compatibility in video resolution. -
Page 12: Hdcp Mode
ALF-SUK2 4.2 HDCP Mode Put the DIP-5 5 on the “OFF” position to select HDCP Active mode, or on the “ON” position for HDCP Passive mode. Switch Status Mode HDCP Passive ON (1) Automatically follows the display’s HDCP version. (Default) -
Page 13: Firmware Upgrade
ALF-SUK2 5. Firmware Upgrade Connect Micro-USB from the PC to the ALF-SUK2 Power on the ALF-SUK2 Run the “Uart” tool [UartAssist.exe] on PC, Select COM port which can be used for firmware upgrading. Choose [56700 bps] and click [open] button as shown below. - Page 14 ALF-SUK2 Load the firmware hex file, such as [SP12HH-H22-033-V1.04(DDEC).hex], then click [Next] button to upgrade, pictured below:...
- Page 15 ALF-SUK2 After completing the upgrade, then click [Finish] button Please reboot the unit once the firmware update is completed.
-
Page 16: Panel Drawing
ALF-SUK2 6. Panel Drawing... -
Page 17: Troubleshooting & Maintenance
ALF-SUK2 7. Troubleshooting & Maintenance Problems Potential Causes Solutions The connecting cables Check whether the cables may not be connected are connected correctly and correctly or may be Colour loss or no video in working condition. broken. signal output in HDMI... -
Page 18: After-Sales Service
ALF-SUK2 8. After-sales Service Should you experience problems using the ALF-SUK2, please refer to the manual and troubleshooting and maintenance section (8). Should the error persist, note that any transport costs of the equipment to the distributor are borne by the user during the warranty. - Page 19 ALF-SUK2 1. Limited Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
- Page 20 ALF-SUK2 1.10 The Company will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty: 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labour to complete the repair and restore this product to its proper operating condition.;...
