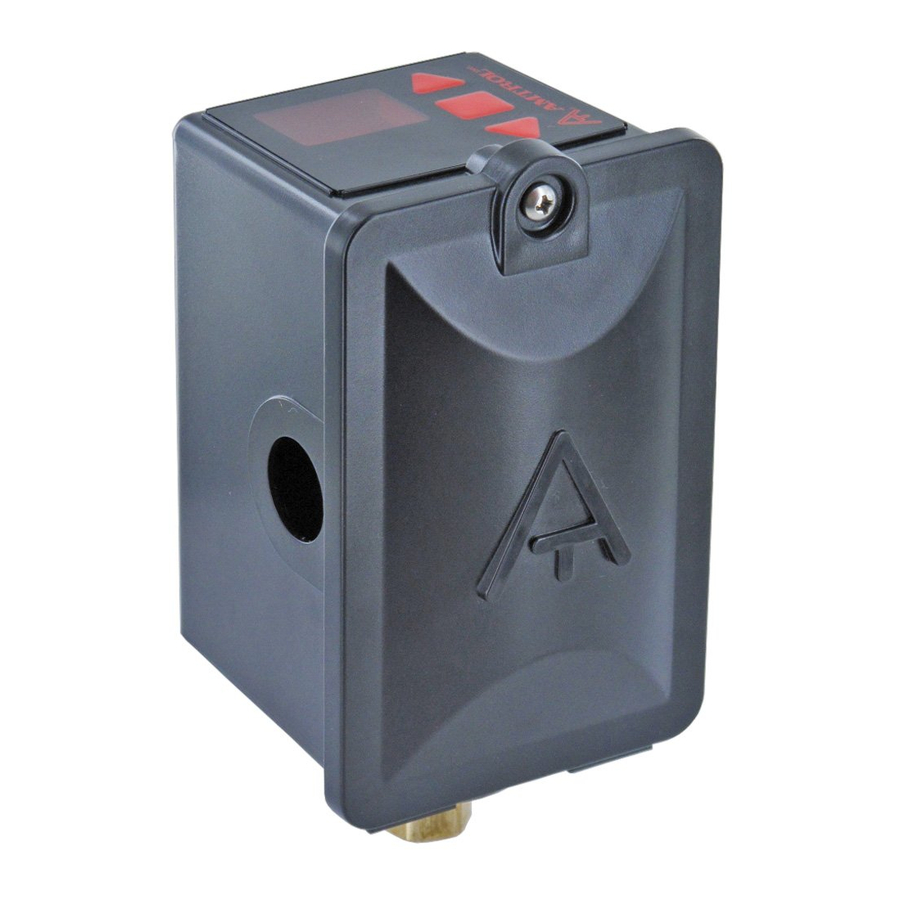

Amtrol GUARDIAN CP DC2 Installation & Operation Instructions

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
Your Guardian CP DIGITAL CONTROL has been carefully assembled and factory tested. To enjoy the full service this
unit can provide, you should read and follow all of the instructions in this manual. When all installation steps have been
completed, make sure you also follow the startup, adjustment and operation instructions before using your AMTROL
product. You should also read carefully the section describing proper product maintenance and follow the required
procedures as you use your Guardian CP DIGITAL CONTROL. Keep this manual with the product. This manual may
become out-of-date by later amendments. Check our web site, www.amtrol.com or ask your AMTROL supplier for any
updates relating to your product.
NOTE: Inspect for shipping damage. Notify freight carrier or store where purchased immediately if damage is present. To
avoid risk of personal injury and property damage, if the product appears to be malfunctioning or shows signs of corrosion,
call a licensed professional immediately. Current copies of the product manual can be viewed at www.amtrol.com. Use
proper safety equipment when installing.
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU TO POTENTIAL PERSONAL
INJURY AND OTHER HAZARDS. OBEY ALL SAFETY MESSAGES THAT FOLLOW THIS
SYMBOL TO REDUCE THE RISK OF PERSONAL INJURY AS WELL AS PROPERTY DAMAGE.
OPERATION INSTRUCTIONS. FAILURE TO FOLLOW THE
INSTRUCTIONS AND WARNINGS IN THE MANUAL MAY
RESULT IN SERIOUS OR FATAL INJURY AND/OR
PROPERTY DAMAGE, AND WILL VOID THE PRODUCT
WARRANTY. THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PROFESSIONAL. FOLLOW ALL APPLICABLE
LOCAL AND STATE CODES AND REGULATIONS. IN THE
ABSENCE OF SUCH CODES, FOLLOW THE CURRENT
EDITIONS OF THE NATIONAL PLUMBING CODE AND
NATIONAL ELECTRIC CODE, AS APPLICABLE.
under pressure, which may over time corrode, weaken and
burst or explode, causing serious or fatal personal injury,
leaking or flooding and/or property damage. To minimize risk,
a licensed professional must install and periodically inspect
and service the product and system. A drip pan connected to
an adequate drain must be installed if leaking or flooding could
cause property damage. Do not locate system in an area
where leaking could cause property damage.
exceed the limitations of system components. Never set the
operating pressure higher than that of the safe system capacity.
sized tank can cause the pump to cycle and lead to pump damage.
This may require a larger pressure tank than is normally used.
GUARDIAN CP
FOR WELL PUMP & BOOSTER SYSTEMS
INSTALLATION & OPERATION INSTRUCTIONS
READ CAREFULLY
PRODUCT INSTALLATION
This product is used in conjunction
with a system containing a tank
This control is capable of running
pumps to pressures that may
This control can be adjusted to a narrow
pressure differential. An improperly
DIGITAL CONTROL
®
THE
&
First disconnect all electrical power before attempting service.
For your safety, the installation and operation instructions must
be followed to minimize the risk of electric shock, property
damage or personal injury.
equipment. The water quality can significantly influence the life
of your system. You should test for corrosive elements, acidity,
total solids and other relevant contaminants, including chlorine
and treat your water appropriately to insure satisfactory
performance and prevent premature failure.
required by state and federal codes.
installed to prevent pressure in excess of local code requirement
or maximum working pressure designated in the product
manual, whichever is less. Do not expose system to freezing
temperatures or temperatures in excess of 130°. Failure to
properly size the system or follow instructions in the manual
may result in excessive strain on the system and may lead to
product failure, leakage, flooding and/or property damage.
known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Model DC2
ELECTROCUTION HAZARD. Must
be installed by a licensed professional.
A water test must be taken before
installation of any water treatment
Use only lead-free solder and flux for
all sweat-solder connections, as
EXPLOSION OR
HAZARD! A relief valve must be
This product can expose you to
chemicals including lead, which is
RUPTURE
