Hiland SL20 Series User Manual

I Safety Instruction

1.1 For security, please read instructions carefully before initial operation; making sure that the power is off before connection.
1.2 Please clear the memory before initial operation. (Ref.: Erasing ALL learned/memorized Transmitters)
1.3 Do not learn the remote control when motor is operating in order to avoid mis-operation.
1.3 The received signal may be interfered by other communication devices. (e.g. the wireless control system with the same frequency range)
1.4 It is used only for the manual remote control and wireless control equipment / system which must not endanger life or property during
running failure, or its security risks have been eliminated.
1.5 It should be applied in dry indoor place or in the electric appliance place.

II Technical Index

2.1 Working voltage: 220VAC/110VAC,50Hz/60Hz
2.2 Temperature range: -20℃ to 60℃
2.3 Loading capacity : 2HP 220VAC/1HP 110VAC
2.4 Built-in fuse: electric circuit(0.5A); Motor(10A),Please
exchange appropriate fuse accoding to loading capacity
2.5 Time of soft-start : 1S ; soft-stop: 3S/5S/7S are optional
2.6 Running time: Adjustable from 5s to 150s ----S4 is to set up
2.7 Frequency: 433.92MHz
2.8 Transmitter stored: 30PCS/200/300PCS
2.9 Output voltage: AC24V
2.10 Output with electric lock: AC220V/AC110V

III Wire connection

IV Set up

4.1 Learning and erasing transmitters: Press the learning button S3 in the board, LED DL2 is on, enters into the learning process; Press the
same button twice, LED blinks for several times, then off. The learning process is successful. Press the learning button, continue pressing for
8s until LED turns off; Release learning button, LED will be on (about 1s) and then off; the erasing process is successful. (Ignore this step
if transmitter already matches the opener before delivery)
4.2 self-learning function: Learning new remotes by old remotes
·Tip of Remote control
learned as old transmitter, press button 1 and button 2 at the same time and then press button 2
to let it enters into the learning process .In this way , new transmitter can be learned without
press the learning button on the control board. (SL2000 and SL2020 can learn 30pcs max，SL2003
and SL2023 can learn 300pcs max)
Old one
4.3 Opening/closing limit adjustment: Remote control the door ( or move the door manually ) , adjust the position of limit device to make sure
the door would touch the limit switch when open or close the door .LED LD6/DL5 in the controller will be off when limit device touches limit
switch(Limit switch is NC).
4.4 External infrared switch:Photocell connector connects the NC contact of photocell switch , DL4 LED turn on after the connection, And DL4
LED turn off when blocking out the transmit or receive signal of photocell artificially. Infrared sensor doesn't react when door openning and
the door will reverse to limit point if photocell signal disconnect when door closing. If no need of using photocell protection, make the
connector of photocell short circuit with terminated line(the connector is short circuit when leave factory).

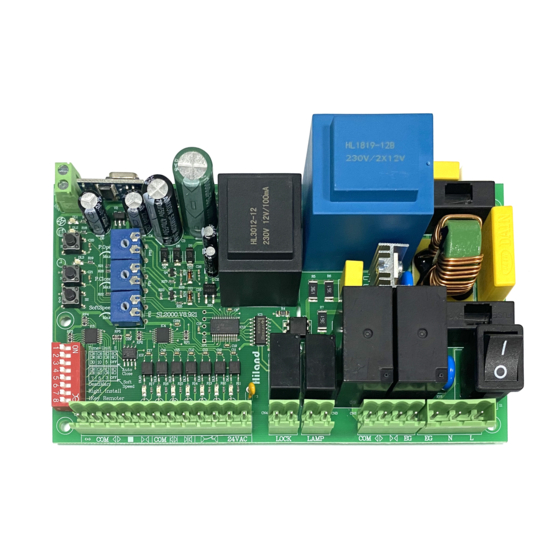

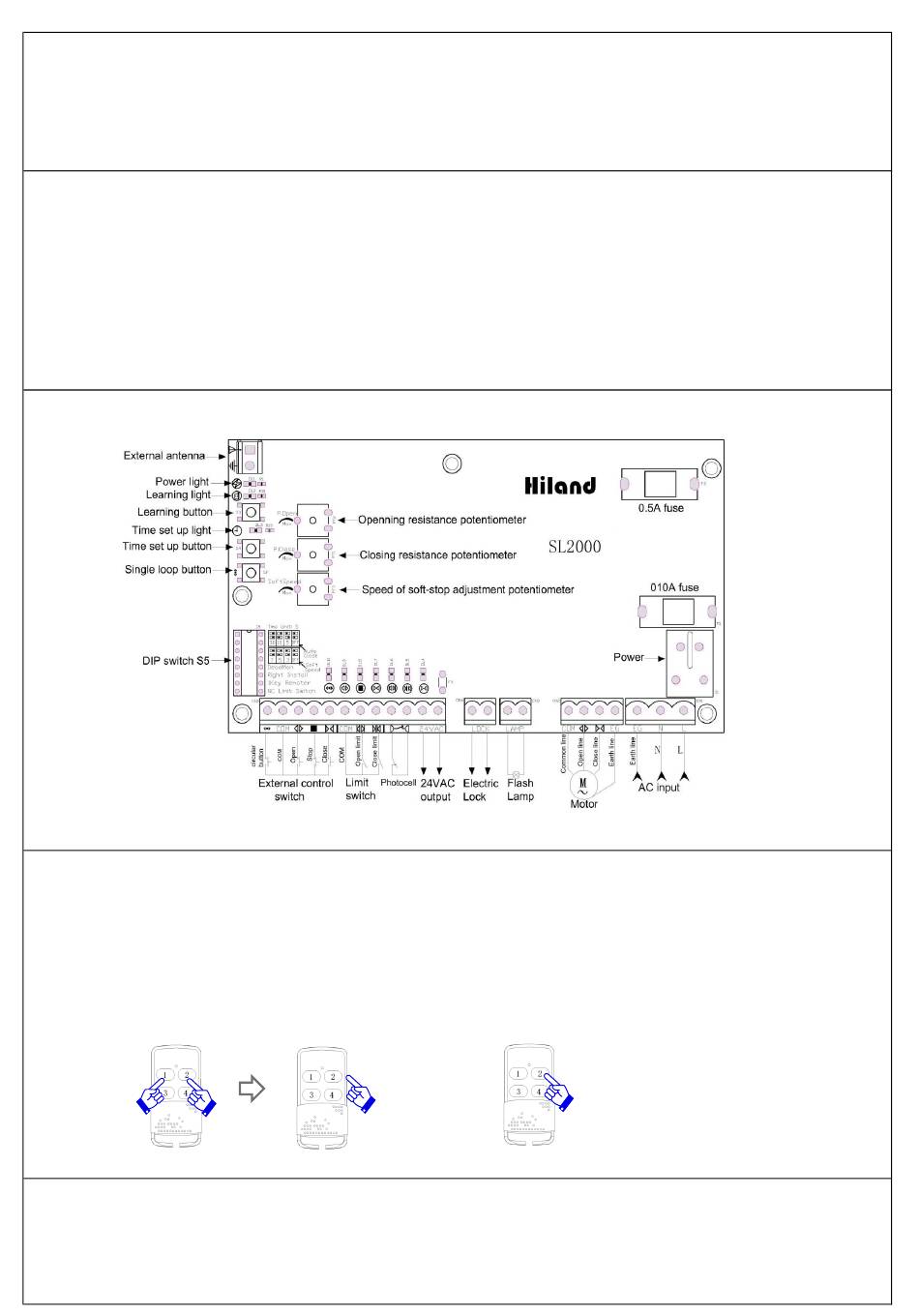

SLIDING GATE OPENER CONTROL BOARD SL20XX
self-learning function: Use the transmitter that already has been
Old one
2.11 Output with flash lamp: AC220V/AC110V
2.12 External switch (open,stop,close in a loop)
2.13 External limit ( DIP8 to select NO and NC)
2.14 External infrared (NC contact)
2.15 Resistance of opening and closing door is adjustable
2.16 Auto close time is adjustable: (5S,10S,30S are optional by using
DIP1,DIP2)
2.17 Deadman and Impulse remote system are optional by DIP5
2.18 Installation at left or right side is optional by DIP6.
2.29 Single / three button control is optional by DIP7
2.20 Size: 165*92*38
2.21 Weight: 453g
New one
A5
electric lock
