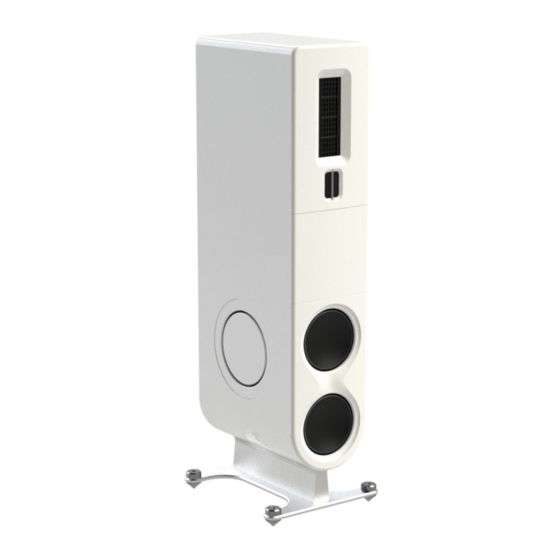

Summary of Contents for PS Audio Aspen FR20
- Page 1 Owner’s Reference aspen FR20 ®...
-
Page 2: Table Of Contents
Table of Contents aspen FR20 ® Safety Information Introduction Getting Started Getting Started Getting Started Getting Started Getting Started Operation Guide Specifications Warranty Information Warranty Information Service Information... -
Page 3: Safety Information
Clean only with a dry cloth. Do not place flammable material on top of or beneath the unit. Turn off all systems’ power before connecting the PS Audio® component to any other component. Make sure all cable terminations are of the highest quality. -
Page 4: Introduction
® Thank You Thank you for your purchase of the PS Audio aspen FR20 loudspeaker. This is your comprehensive Operator’s Guide, intended to provide a full overview of the aspen FR20’s functions and capabilities. It is our intention to provide you with full details about the aspen FR20 and to answer any and all questions you may have. -
Page 5: Getting Started
Getting Started aspen FR20 ® Included with the Speaker enclosure in cloth bag aspen FR20 Cloth magnetic grille Accessory box – this product manual, jumpers (for configuring the inputs for mono or bi-wiring), tool kit (allen wrenches for all of the metric socket head screws used... -
Page 6: Getting Started
Getting Started aspen FR20 ® Once all four brackets are removed, lift the top carton upwards and take it off. The sides of the interior box will open to reveal your speaker. Please note that the speaker will be feet side up to make lifting easier. -
Page 7: Getting Started
Getting Started aspen FR20 ® Now that the box is removed, take the packaging foam off the top and place it to the side of Configuring the speaker (you can use it as fulcrum when it’s time to move the speaker). Now the spiked Speaker Feet feet are exposed. -
Page 8: Getting Started
Getting Started aspen FR20 ® These are leveling feet as well. Loosen the top gap of the foot and adjust the bottom spiked foot until the speaker is level. Then tighten the top cap into place to lock them in position. -
Page 9: Getting Started
Getting Started aspen FR20 ® Jumper / Input The FR20 comes with four input terminals as shown. For single wiring/amping, connect Wiring the set of jumpers from the accessory box to parallel wire the black and red terminals sets (bi-amp, bi-wiring) together (black to black and red to red) as shown below. -
Page 10: Operation Guide
Operation Guide aspen FR20 ® Basic Setup Loudspeakers and rooms work together as a system and, to get the best performance, and Placement great care in setup is important to optimize the listening experience. Some helpful tools include a tape measure (or laser measurement tool), pen/paper to note the distances and listening impressions, and some demo music. -
Page 11: Specifications
Specifications aspen FR20 ® aspen FR30 Color Options Pearl White, Sable Black Specifications Enclosure Type Passive radiator (two, 10” side- firing passive radiators) High Frequency Transducer 2.5” planar magnetic with Teonex diaphragm Mid Frequency Transducer 10” planar magnetic with Teonex diaphragm Low Frequency Transducer 2 x 8”... -
Page 12: Warranty Information
3 years from the date the unit was first purchased from PS Audio or its dealers and agents. If you do not register your product within 30 days of service, a copy of your purchase receipt from an authorized PS Audio dealer may be used as proof of purchase to establish the warranty start date. -
Page 13: Warranty Information
FR20 ® Limitations Under In no event will PS Audio’s liability to you exceed the original purchase price of your unit. This Warranty This warranty does not cover the cost of custom installation, customer instruction, setup adjustments, or signal reception problems. Consequential and incidental damages are not covered under this warranty. -
Page 14: Service Information
Authorization Number (RMA#) prior to returning any item. Please contact PS Audio or an authorized PS Audio repair center to receive an RMA#. The RMA# must be on all returned items. If it is not clearly marked, PS Audio will return the package back to you, freight collect. - Page 15 Your Product Your Product aspen FR20 ® ® Your Serial Number Your Purchase Information Date of Purchase...
- Page 16 In fact, we believe that every nutty, hertz-counting audiophile out there is part of our tribe. That’s how we’ve built our company over the last 50 years - with the kind of care and respect that you give to your family. PS Audio® Inc. 800-PSAUDIO 4865 Sterling Drive Boulder, Colorado 80301...
