Eldat MiniPager RRP01 Manual

RRP01 MiniPager
EN

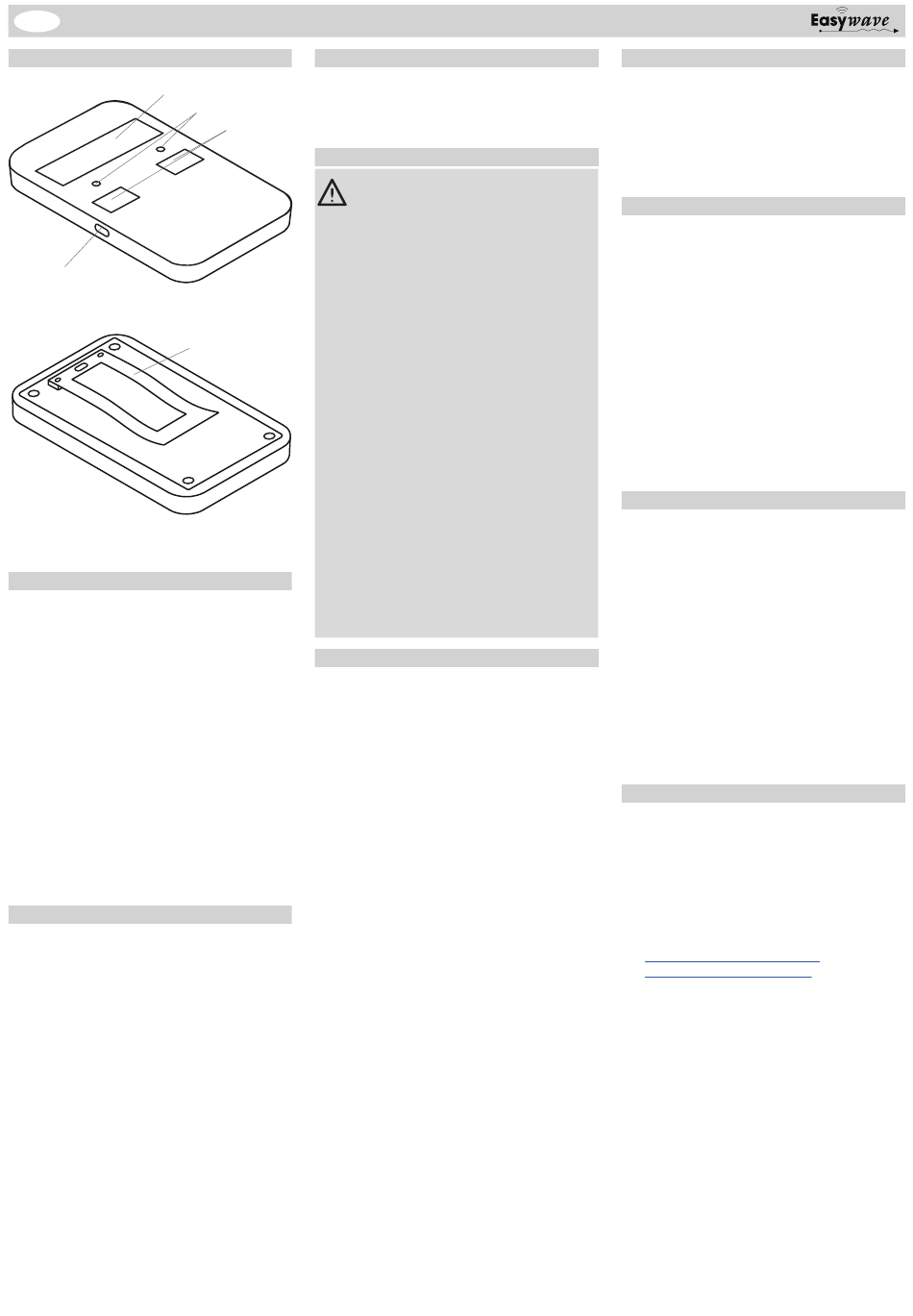

Models

Display
Mini USB connection
RRP01E5023A01

Technical Data

Frequency: 868.30 MHz
Radiated power: 0.54 mW
Modulation: FSK
Coding: Easywave
Power supply: Mini USB, 5 V DC / 1 A
3.7 V / 750 mAh Li-Ion battery
Runtime: approx. 48 h
Charging time: approx. 3 h
Power consumption: 16 mA in standby mode
26 mA when transmitting
Display Type: LCD
Dimension: 41x10 mm
Resolution: 128x32 Pixel
Operat. temperature: +10 °C to +40 °C
Dimensions w/l/h : 62/96.5/13.6 mm
( )
Weight: approx. 73 g
Interfaces: Windows PC
from USB 1.1
10 MB hard disk

Scope of Delivery

MiniPager RRP01, mini USB cable,
operating instructions

Intended Use

The device may only be used as a pager for per-
sonal calls.
LEDs
Control The manufacturer shall not be liable for any dam-
buttons
age caused by improper or non-intended use!

Safety Advice

Carefully read through these instructions
before connecting and operating the unit!
- We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
- The device may not be used in areas where
malfunctions could lead to personal injury or
damage to property.
- Please check regularly to make sure your
Retaining clip
device is ready to transmit and receive!
The device functions in the 868 MHz range,
which is also used by other radio services.
Therefore, devices that function on the same
frequency or on neighbouring frequencies
may cause limitations in the operation and
range of the pager. The reception quality
may be affected by non-suppressed devices
and systems, by the presence of other trans-
mitters using the same frequency range or
by the weather. Should you need to improve
the radio range of your device, please use
an Easywave repeater.
- Have faulty units checked by the manu-
facturer!
- Do not open the unit housing!
- Do not make any unauthorised alterations or
modifications to the uni!

Function

The RRP01 MiniPager receives messages from
previously programmed Easywave transmitters.
The pager alerts recipients to messages by vibra-
ting and/or buzzing, and by displaying text.
The buttons on the device can be used to ack-
nowledge messages. If there are multiple messa-
ges, each message must be separately acknow-
ledged.
In total, 64 Easywave transmission codes can be
programmed into the receiver.
The retaining clip on the back allows the
MiniPager to be fastened in a shirt pocket or onto
a belt.
Only clean the device with a damp cloth, never
use harsh or abrasive cleaners!

START UP

Fully charge the pager before first use. Only use
the supplied USB cable or a charging cradle! (see

Charge the battery).

Then switch on the RRP01 by pressing both but-
tons for approximately 2 seconds.
Transmitters are configured and programmed via
a Windows PC or laptop. (see "Programming")
Charge the battery
There is a mini USB socket on the left-hand side.
Plug the USB cable into this socket and connect
the other end to a 5 V USB plug-in adapter or
powered-up computer.
The charging process starts automatically after
plugging in and takes approximately 3 hours to
complete.
The ambient temperature during charging should
be between +10°C and +30°C.
The two green LEDs above the buttons flash du-
ring charging. Once the battery is fully charged,
the message "Battery full" appears on the display
and both LEDs are lit.
The runtime with a fully charged battery depends
on the ambient conditions and is approximately
48 hours.

Charging cradles

There is a mini USB socket on the left-hand side.
Plug the USB cable into this socket and connect
the other end to a 5 V USB plug-in adapter or
powered-up computer.
The charging process starts automatically after
plugging in and takes approximately 3 hours to
complete.
The ambient temperature during charging should
be between +10°C and +30°C.
The two green LEDs above the buttons flash du-
ring charging. Once the battery is fully charged,
the message "Battery full" appears on the display
and both LEDs light up.
The runtime with a fully charged battery depends
on the ambient conditions and is approximately
48 hours.

Installation

1. Connect the MiniPager to a Windows PC
or laptop via the supplied USB cable. The
driver is automatically installed. Wait until
the driver installation is complete (only when
plugging in for the first time).
2. Download the
"RRP01_MiniPager_en.zip" file from our
website:
https://www.eldat.de/produkte/
schnittstellen/rrp01e_en.html
Unzip the file into any folder and start the
program.
If a security warning appears, confirm it by
clicking "Run".
