Eldat RCP25 Manual

RCP25 Plug-in socket pager
EN

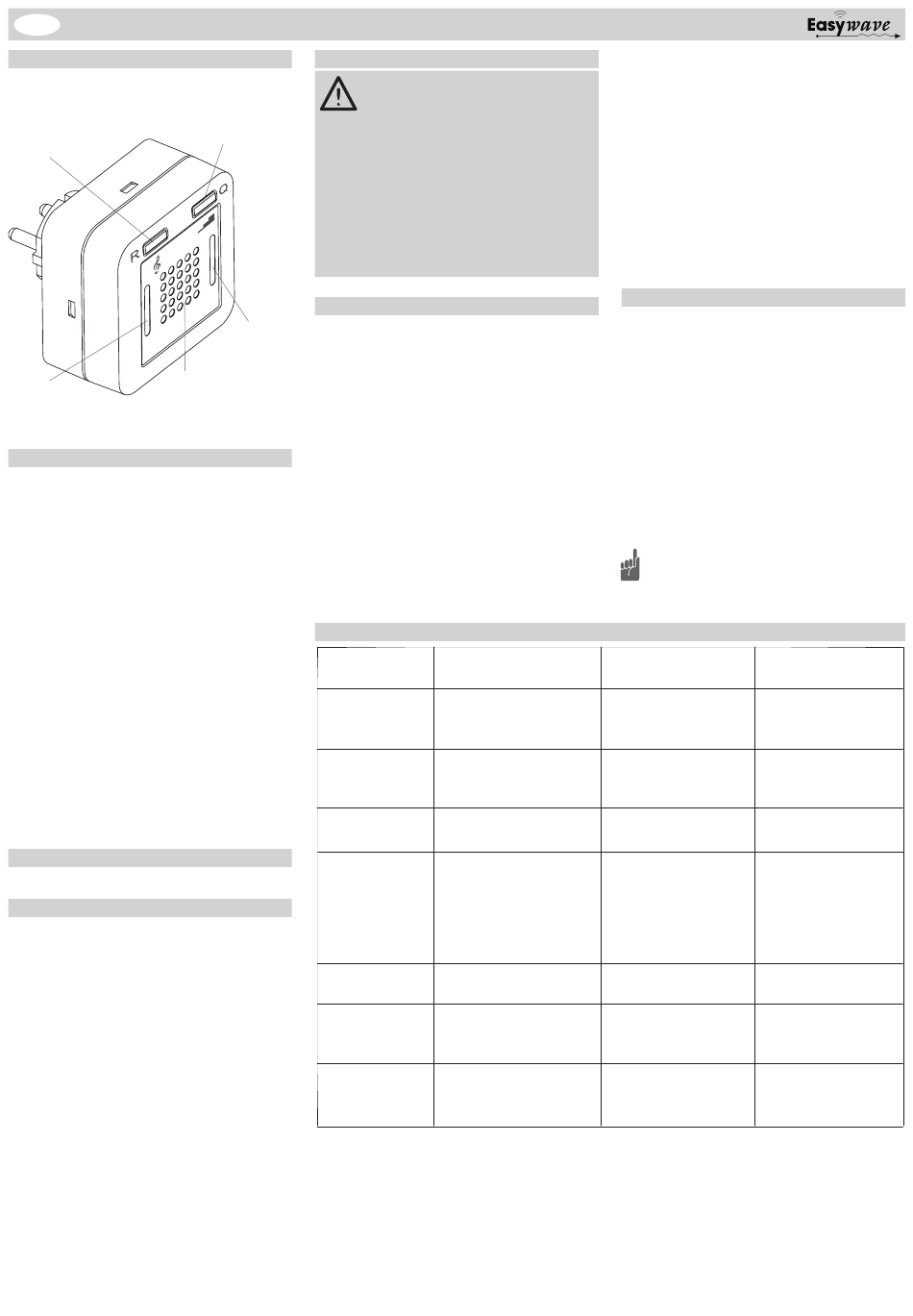

Models

Button Q | LED Q
Select volume/flashlight
Button R | LED R
Teach in the acknowledg-
Select melody
ment transmitter
Teach in the call trans-
mitter
Flashlight
RCP25E5001A01

Technical details

Frequency: 868.30 MHz
Modulation: FSK
Coding: Easywave
Range: approx. 150 m under
free field conditions
Power supply: 230 V AC 50 Hz
Power consumption: 0.2 W stand by
1.1 W (at max. load)
Current consumption: 2 mA stand by
Operating temperature: -20 °C to +35 °C
Transport and storage
temperature: -20 °C to +75 °C
Max. relative air humidity: 75%
Loudness: quiet:
distance 30 cm medium: 85 dB(A)
loud:
Dimensions (W/H/D): 71.4/71.4/40 mm
without plug
71.4/71.4/75.5 mm
with plug
Weight: approx: 115 g
Scope of delivery
Plug-in socket pager RCP25, operating manual
Intended use
The device may only be operated indoors as an
acoustic and visual signaling device of alarm si-
gnals and low battery conditions of transmitters
(evaluation of undervoltage telegrams).
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety advice
- We do not accept any liability for personal
injury or damage to property caused by incor-
rect handling or non-observance of the safety
instructions!
- Have malfunctioning devices checked by the
manufacturers!
- Do not open the appliance's casings!
- Do not make any unauthorized alterations or
modifications to the unit!
Function
The socket pager RCP25 is used for acoustic and
Flashlight
optic signalling of care requests. The call is trigge-
red by any Easywave radio transmitter.
Twelve multi-channel melodies are available as
Speaker
call tones. The melodies can be played at three
volume levels (approx. 80 dB, 85 dB, 90 dB).
If the call tone is muted (0 dB), the call is only
signaled by the flashlight.
Calls are signalled cyclically as follows:
1. 1.5 min ring tone
2. 1.5 min ring tone
3. 1.5 min ring tone
4. 1.5 min ring tone
The optic signal by the flashlight (if activated)
continues until the call is acknowledged.

Operation

Function / Chapter
Teaching in a
80 dB(A)
call transmitter
90 dB(A)
Teaching in an
acknowledgment
transmitter
Selecting call tone
1 to 12
Setting the
volume/flashlight
Acknowledge
a call
Deleting
individual
transmitters
Reset to default
settings
(RESET)
Please read these instructions carefully
before using the device!
 3 min pause,
 3 min pause,
 10 min pause,
 timeout.
Operation
[press button]
1. button R (>1,6 s)
2. button call transmitter
3. button R (< 1,6s)
1. button Q (>1,6 s)
2. button acknowled. transm.
3. button Q (< 1,6s)
button R
button R
button R etc.
button Q
button Q
button Q
button Q
button Q
button Q
button Q
button R, button Q or
acknowledgment transmitter
1. button R+button Q (>1,6 s)
2. call- or acknowl. transmitter
3. button Q or R (<1,6s)
1. button R+button Q (>1,6 s)
2. button R+button Q (>1,6 s)
button R or Q
The call can be acknowledged directly on the
socket pager or with an acknowledgment trans-
mitter.
Altogether 64 transmitter codes can be program-
med into the socket pager (32 call codes and 32
acknowledgment codes).
It is also possible to evaluate an undervoltage
telegram indicating a low battery status of the ra-
dio transmitters. To find out whether a transmitter
supports this function, please refer to the corres-
ponding operating instructions.
A weak battery status is indicated by the alternate
blinking of the buttons and can be deactivated by
pressing one of the two buttons.

Start up

1. Plug the socket pager into a properly func-
tioning, earthed outlet. You will hear a brief
confirmation signal and the flashlight flashes
briefly.
2. Teach the coding of a call transmitter into the
call detector (see section „Teaching in the call
transmitter").
3. Teach the coding of an acknowledgment
transmitter into the socket pager, if desired
(see section „Teaching in an acknowledgment
transmitter").
4. Select a new melody if desired.
5. Change the volume/flashlight combination if
desired.
Attention! Ensure an interference-free wire-
less connection. Do not install the device in
a distribution box, metal housings or close to
large metal objects.
LED indicator RCP25 Further actions
button R flashes after 20 s operation mode
button R lights up 4 s
teaching in further transmitter
end the learning process
button Q flashes
after 20 s operation mode
button Q lights up 4 s
teaching in further transmitter
end the learning process
melody 1
default setting
melody 2
melody 3 etc.
1. 80 dB+flashlight
default setting
2. 85 dB+flashlight
3. 90 dB+flashlight
4. mute+flashlight
5. 80 dB
6. 85 dB
7. 90 dB
button R or Q flashes after 20 s operation mode
button R or Q lights up 4 s
deleting further transmitters
end the deletion process
button R or Q flashes after 20 s operation mode
button R or Q lights up 4 s
default settings
cancel
