F64-SC V3
steering wheel for racing simulators
product manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIMUCUBE F64 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ASCHER RACING SIMUCUBE F64 Series

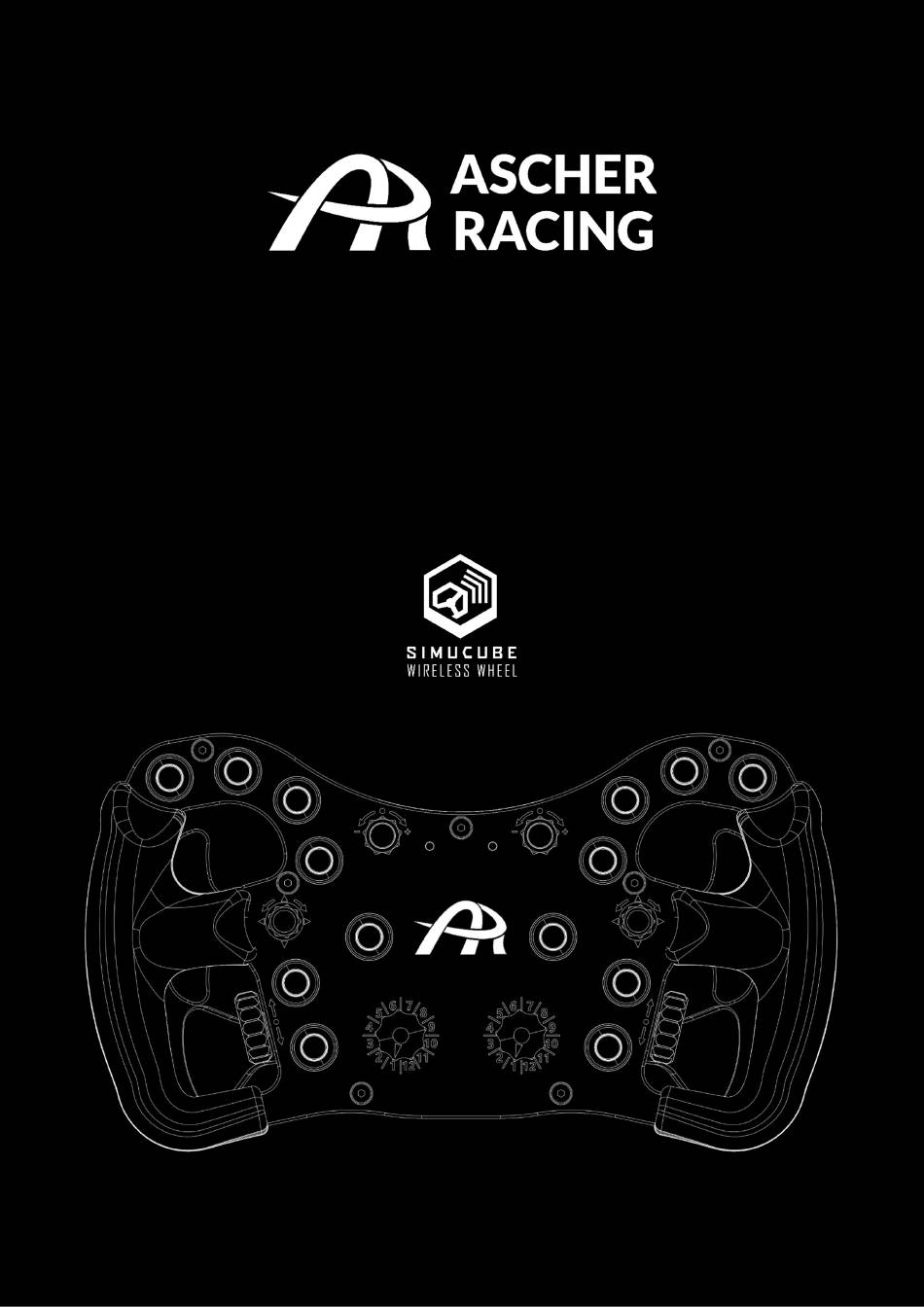

  • Page 1 F64-SC V3 steering wheel for racing simulators product manual V1.0...
  • Page 2: Table Of Contents

    Quick Release Mounting Options ....................6 5.1. SC2 SQR WHEEL SIDE – Simucube Adapter ................6 5.2. SC2 SQR WHEEL SIDE – Ascher Racing SQR Adapter ............... 6 5.3. 70mm bolt pattern Quick Release – outside mounting ............6 5.4.
  • Page 3: Safety Information

    1. Safety Information Thank you for purchasing the Ascher Racing F64-SC V3 steering wheel. Please read the manual carefully before installing and using the product. 1.1. Intended Use The steering wheel is designed to be used in a competitive sim racing environment for indoor use only and connects wirelessly to a Simucube.
  • Page 4: Box Contents

    3. Box Contents The box contains the following components and accessories:  F64-SC V3 steering wheel  USB-C to USB-A charging cable  standard screws and washers for Quick Release mounting  sticker sheets for encoders and buttons  alternative magnets and spacers p a g e...
  • Page 5: Product Overview

    4. Product Overview p a g e...
  • Page 6: Quick Release Mounting Options

    Adapters or QRs are not part of the scope of supply and have to be purchased separately. 5.1. SC2 SQR WHEEL SIDE – Simucube Adapter 5.2. SC2 SQR WHEEL SIDE – Ascher Racing SQR Adapter 5.3. 70mm bolt pattern Quick Release – outside mounting Standard 70mm bolt pattern Quick Releases with non-threaded through holes (e.g.
  • Page 7: 70Mm Bolt Pattern Quick Release - Inside Mounting

    5.4. 70mm bolt pattern Quick Release – inside mounting QRs with either M5 threaded blind holes or other features preventing from conventional mounting can be attached from the inside of the wheel casing. Captive screws are required to bypass the thread of the casing.
  • Page 8: Getting Started

    During this time, the left green LED blinks quickly – a successful connection is visualized by 3 slow green blinks. 1. open True Drive / Wireless Wheels Tab 2. (Automatic connection mode: Connect to previously connected wheel) 3. switch ON steering wheel 4. double click Ascher Racing F64 V3 p a g e...
  • Page 9 p a g e...
  • Page 10: Normal Operation

    6.2. Normal Operation First switch ON the Simucube wheel base and then the wireless wheel. If step 2 (automatic connection mode) is enabled the wheel will connect automatically. A successful connection is indicated by:  green connection LED blinks 3 times ...
  • Page 11 11 | p a g e...
  • Page 12 Deadzones need to be adjusted so that a resting paddle has 0% output whereas a fully pulled paddle results in 100% output. The position indicator shows the resulting output which is reported to the simulation. Raw value is the absolute, unaltered value of the paddle. Deadzone low defines the Raw value at which the output starts (0%).
  • Page 13: Adjust Clutch Bite-Point

    6.4. Adjust Clutch Bite-Point The clutch bite-point (maximum output of the slave clutch) can be adjusted on the steering wheel: 1. push right joystick for 1s to enter bite-point mode 2. right LED lights up orange 3. adjust bite-point in 1% increments by turning the left joystick or 0.1% with the right one 4.
  • Page 14: Battery

    7. Battery The steering wheel is equipped with a rechargeable lithium polymer battery. The shipping battery charge is approx. 50%, which is also the optimum storage charge. 7.1. Charging  The wheel can be charged in both conditions, switched ON and OFF ...
  • Page 15: Paddle Shifter Force Adjustment

    8. Paddle Shifter Force Adjustment The paddle shifter snap action force can be reduced by using the supplied alternative magnets and spacers. Use those alternative magnets to carefully pull out the installed ones – if unsuccessful pull the paddle shifter in order to reduce the force between the installed magnets. Make sure that no loose magnets are in close proximity in order to avoid magnets crashing into each other unintentionally.
  • Page 16: Steering Wheel Dimensions

    9. Steering Wheel Dimensions 16 | p a g e...
