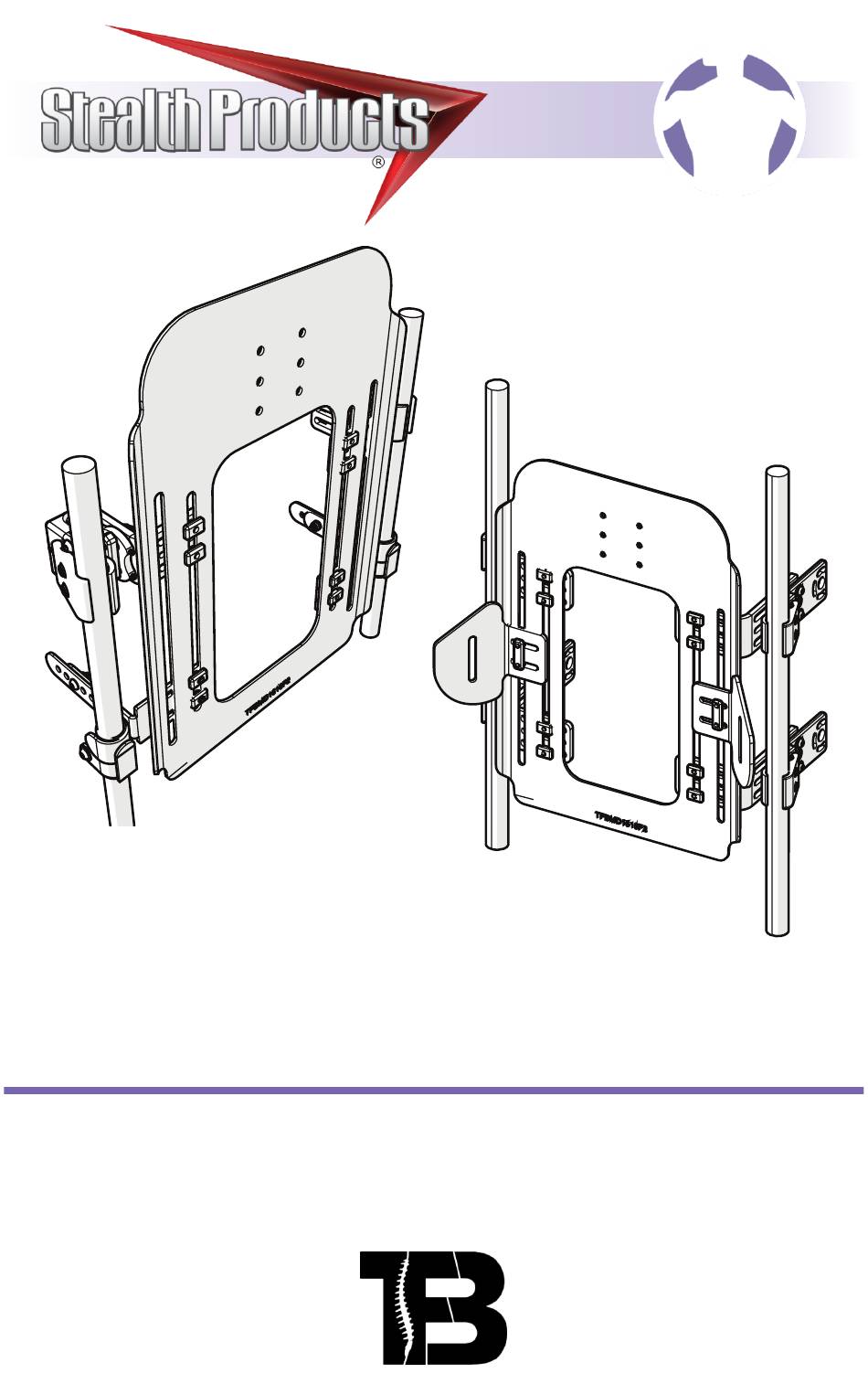

- Page 1 Backs & Support tooltip Flex Owner’s Manual - Maintenance Guide True Forming Back - Flex Back Shells...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i General........................i Important Information............... ii-iii Warranty ........................ii Supplier Reference ....................ii Warning Labels ....................iii Limited Liability....................iii Testing ........................iii Design and Function ..............1-2 Intended Use ......................1 Features ........................1 Mounting ........................ -
Page 3: Customer Satisfaction
Customer Satisfaction Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at:... -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material and workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 6: Design And Function
Design and Function Intended Use The True Forming Back, or TFB, has been created to provide extreme comfort, unparalleled customizable options, and trouble-free adjustability. The hardware is durable, easily accessible, and is hidden with a hook-and-loop attached back for a clean, sleek look. -
Page 7: Parts And Accessories Breakdown
Design and Function Parts and Accessories Breakdown A typical True Forming Back (TFB) package contains the following parts: 1. Back Composed of a rigid aluminum shell with a dual layer of soft, supportive foam and a supple cover made of materials such as Neoprene, Airmesh, or Coolcore. A foam- in-place option is also available. -
Page 8: Installation Instructions
Installation Instructions tooltip Installation 2-point Fixed Installation: 1. Install the Simple Solutions Stability hardware to the back shell. See page 3, "Mounting the Hardware to the Back Shell", in the TFB Simple Solutions Fixed Hardware Manual. 2. Adjust the Simple Solutions Stability hardware for width to fit the back posts. -
Page 9: 2-Point Removable Installation
Installation Instructions tooltip 2-point Removable Installation: 1. Install the Fliplock 2 hardware to the back shell. See page 3, "Mounting the Hardware to the Back Shell" in the TFB Simple Solutions Removable Hardware Manual. 2. Adjust the Fliplock 2 hardware for width to fit the back posts. See page 6, "Adjustments"in the TFB Simple Solutions Removable Hardware Manual. -
Page 10: 4-Point Fixed Installation
Installation Instructions tooltip 4-point Fixed Installation: 1. 4-point fixed installation requires the Simple Solutions Stability hardware mounted in the upper position of the back shell, and the J&L hardware in the lower position. Install the hardware in these positions. See page 3, "Mounting the Hardware to the Back Shell", and page 5, "Mounting the J&L Hardware"... -
Page 11: 4-Point Removable Installation
Installation Instructions tooltip 4-point Removable Installation: 1. 4-point removable installation requires the FlipLock 2 hardware in the upper position of the back shell, and the J&L hardware in the lower position. Install the hardware in these positions. See page 3, "Mounting the Hardware to the Back Shell"... -
Page 12: 4-Point Heavy Duty Installation
Installation Instructions tooltip 4-point Heavy Duty Installation: 1. 4-point Heavy Duty installation utilizes the Simple Solutions Stability hardware in both the upper and lower positions on the back shell. Install the hardware in these positions. See page 3, "Mounting the Hardware to the Back Shell"... -
Page 13: Installing Wings And Laterals
Installation Instructions Installing Wings and Laterals 1. Align the holes in the wing or lateral bracket with the vertical slots near the outer edges of the back shell. 2. Insert the stud plate or screws through the lateral or wing, and then through the corresponding slot in the back shell. -
Page 14: First Time Use
First Time Use Dealer Assistance During first-time use by the client, it is advised that the dealer or service technician assists and explains the set-up to the customer (the user and/or the attendant). If needed, the dealer may make final adjustments. User Testing It is important that the customer is fully aware of the installation, how to use it, and what can be adjusted in order to gain as much mobility as possible. -
Page 15: Maintenance
Maintenance Cleaning • Use a so� cloth to clean the back shell. • Ensure all cleaners are approved for finished steel, aluminum, plas�c, and upholstered surfaces. • Hand wash the foam pad cover with mild, soapy water or detergent, rinse well, and let dry. - Page 16 © 2022, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P136D690R2 TFB Flex Manual.afpub Oct 21, 2022...
