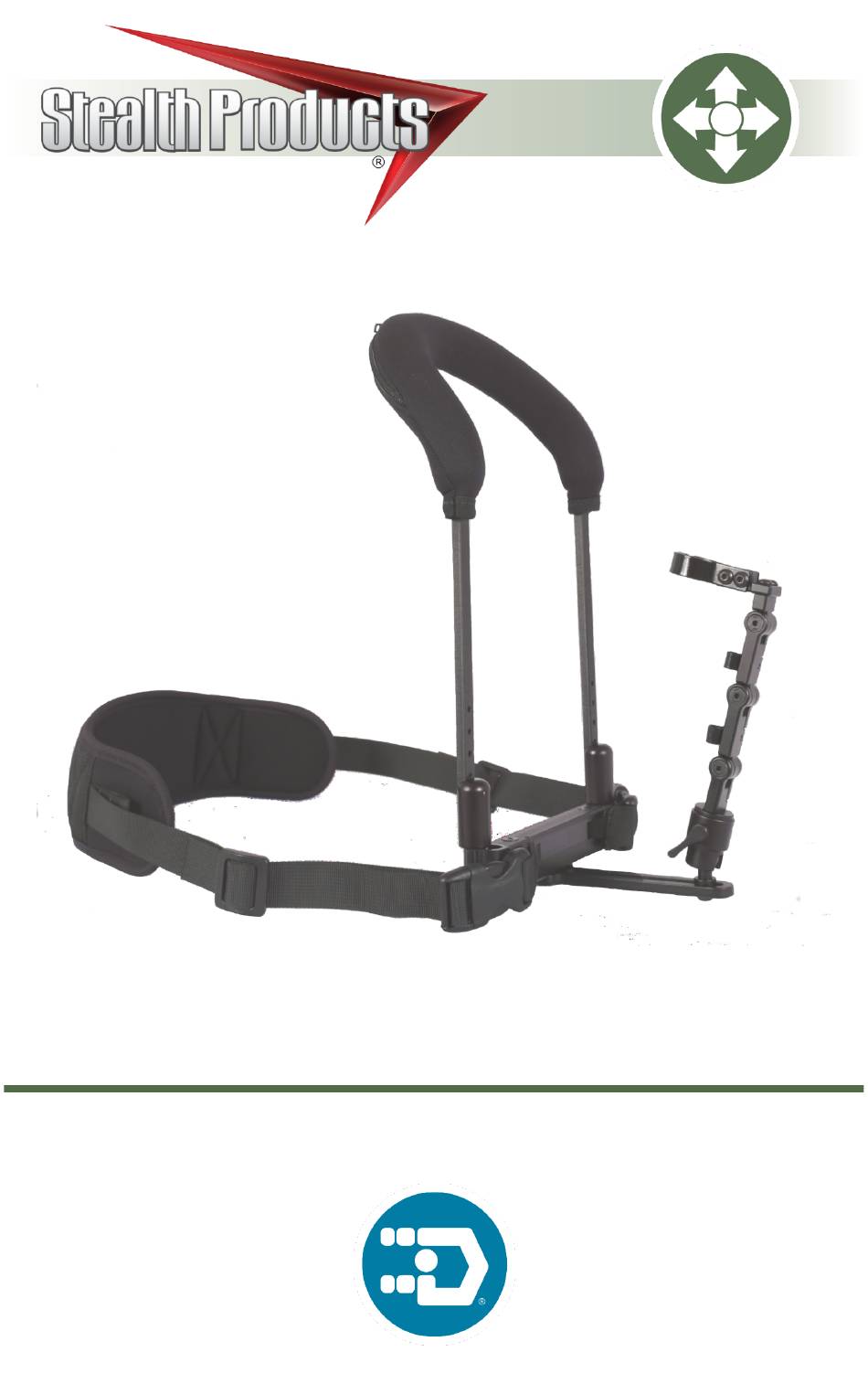

- Page 1 Alternative Drive Controls i-Drive Control Harness Owner’s Manual - Maintenance Guide i-Drive Control Harness...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i Important Information............... ii-iii Warranty .......................ii Supplier Reference..................ii Warning Labels..................iii Limited Liability..................iii Testing ......................iii Design & Function ............... 1-6 Intended Use....................1 Features......................1 Mounting..................... 1 IDCH Package .................... 2 IDCH Accessories ..................3 IDCH Replacement Parts ............... -
Page 3: Customer Satisfaction
They also contain important safety and maintenance information, as well as describe possible problems that can arise during use. For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 6: Design & Function
Design & Function Intended Use The i-Drive Control Harness is a secure platform to attach control devices in positions that accommodate users limited in their ability to use traditional joysticks or switch combinations. Smaller switches and joysticks with various input force requirements can be configured to assist users with conditions ranging from paralysis to paraplegia, allowing them the freedom to control devices and mobility platforms with nearly any facial surface. -
Page 7: Idch Package
Parts and Accessories IDCH Package The i-Drive Control Harness part numbers/descriptions are as follows: Part Product Description Image Number Pediatric i-Drive Control Harness IDCH-P Small i-Drive Control Harness IDCH-S Medium i-Drive Control Harness IDCH-M Large i-Drive Control Harness IDCH-L i-Drive Control Harness... -
Page 8: Idch Accessories
Parts and Accessories IDCH Accessories The IDCH accessories include switches and fiber optics installed on Loc-Line. The part numbers/descriptions are as follows. Product Description Part Number Image Left Side Single Twister Basic Button on Loc-Line - Specify Color IDCH-A1L *See colors below Right Side Single Twister Basic Button on Loc-Line - Specify Color IDCH-A2R... -
Page 9: Idch Replacement Parts
IDCH-SC Control Harness IDCH-MC IDCH-LC 6" Loc-Line for Mounting Accessories to the IDCH-FL6 Control Harness Pediatric i-Drive Control Harness Collar IDCH-PNC Small i-Drive Control Harness Collar IDCH-SNC Medium i-Drive Control Harness Collar IDCH-MNC Large i-Drive Control Harness Collar IDCH-LNC Mount for IDCH-JM01 IDM-MULTI-9 &... -
Page 10: Configuration
Parts and Accessories Configuration i-Drive Control Harness Belt (provided with IDCH order): • Two sizes are available. • Standard belt size - 16" x 3 3/4"* (Pediatric, Small and Medium IDCH) • Extra Large Belt size - 18 1/2" x 4"* (Large IDCH) NOTICE Measurements shown include pad sizes only. - Page 11 Parts and Accessories Loc-Line with Twister Basic Button/Fiber Optic Switch • Switches, attached by Loc-Line tubing, may be ordered for the IDCH. • Approximately 12" of Loc-Line is provided. • Loc-Line will be secured via M5 x .8 x 25mm SHS & M5 locknuts and share the same track as the swivel mount.
-
Page 12: Installation Instructions
Installation Instructions The i-Drive Control Harness should be installed WARNING ONLY by a qualified service technician. Installation Plan Set up an installation plan before starting the installation. Based on the user's needs, this plan should specify: • Which joystick is necessary for the client to operate. •... - Page 13 Testing Mounting a Joystick to the Control Harness To mount the mo-Vis Multi joystick: • Use the four screws provided in the Multi Accessory Pack to mount the joystick. • The screws will travel through the joystick mount on the IDCH and into the base of the Multi Joystick. •...
- Page 14 Installation Instructions Step 1: Place Multi or IDPMP joystick atop the joystick mount. Match the holes on the base of the joystick to the holes on the mount. Step 2: Secure joystick to mount by inserting the provided screws through the matching holes.
- Page 15 Installation Instructions Removal/Addition of Link Replace with additional link. Remove the link and joystick mount. Remove the screw and link nut. Loosen this screw. Remove this screw and link nut and replace joystick mount on this end. Tighten this screw into the link nut.
- Page 16 Adjustment Instructions Adjustment The IDCH has multiple points of adjustment. To determine the size needed, measure the circumference of the client's neck. Refer to the table below for sizing information. Collar Size Arm Lengths Size Inches Part Number Size Width Circumference IDCH-P Pediatric...
- Page 17 Adjustment Instructions Lateral Adjustment & Depth Adjustment • Lateral adjustment of the track and joystick mount is determined by the size of the collar. • 3 1/4" of depth adjustment is available for all harnesses. Inches of Lateral Size Adjustment Pediatric 3"...
- Page 18 Adjustment Instructions Angle and Link Adjustment • The swivel link, located at the base of the joystick mount, offers 360° of adjustment for the user. • 90° of adjustment forward and backward provides the client with the ability to move the joystick as close to them as necessary.
- Page 19 Adjustment Instructions Removing the Collar The track may be released from the collar (illustrated from the client's perspective). Three (3) different options are available to remove the arms from the latch: Left Release Right Release Full Release (Swings to client's right side) (Swings to client's left side) Step 1: For your safety, unbuckle the belt from the collar.
-
Page 20: First-Time Use
First Time Use Replacing the IDCH Belt STEP Step 1: With the 2mm hex key, unscrew and remove the M3 x 0.5 x 12mm flat head screws. Separate the arms (B) from the latch (C1). STEP Step 2: Loosen and remove the M5 x 0.8 x 20mm FHS (2) from the i-Drive latch (top). - Page 21 Care and Maintenance Step 4: Remove the STEP buckles from the pins. Replace new buckles by sliding the 3/8" webbing onto the pins. Match the holes of the track to the holes of the latch, and snap it back together again. STEP Step 5: Give a slight tug to the female buckles to ensure...
-
Page 22: Dealer Assistance
First Time Use Dealer Assistance During first time use by the client, it is advised that the dealer or service technician assists and explains the different drive configurations to the customer (the user and/or the attendant). If needed the dealer can make final adjustments. User Testing It is important that the customer is fully aware of the installation of the i-Drive Control Harness, how to use it, and what can be adjusted in order to gain as much... -
Page 23: Maintenance
Cleaning and Maintenance Care and Maintenance We recommend that all products be checked for wear and function on a periodic basis and replaced, if necessary, by a wheelchair professional. • Repairs should be done with genuine Stealth parts, fasteners, or items appropriate for the service needed. - Page 24 © 2023, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P132D399R2 IDCH Owner's Manual.afpub Oct 23, 2023...
