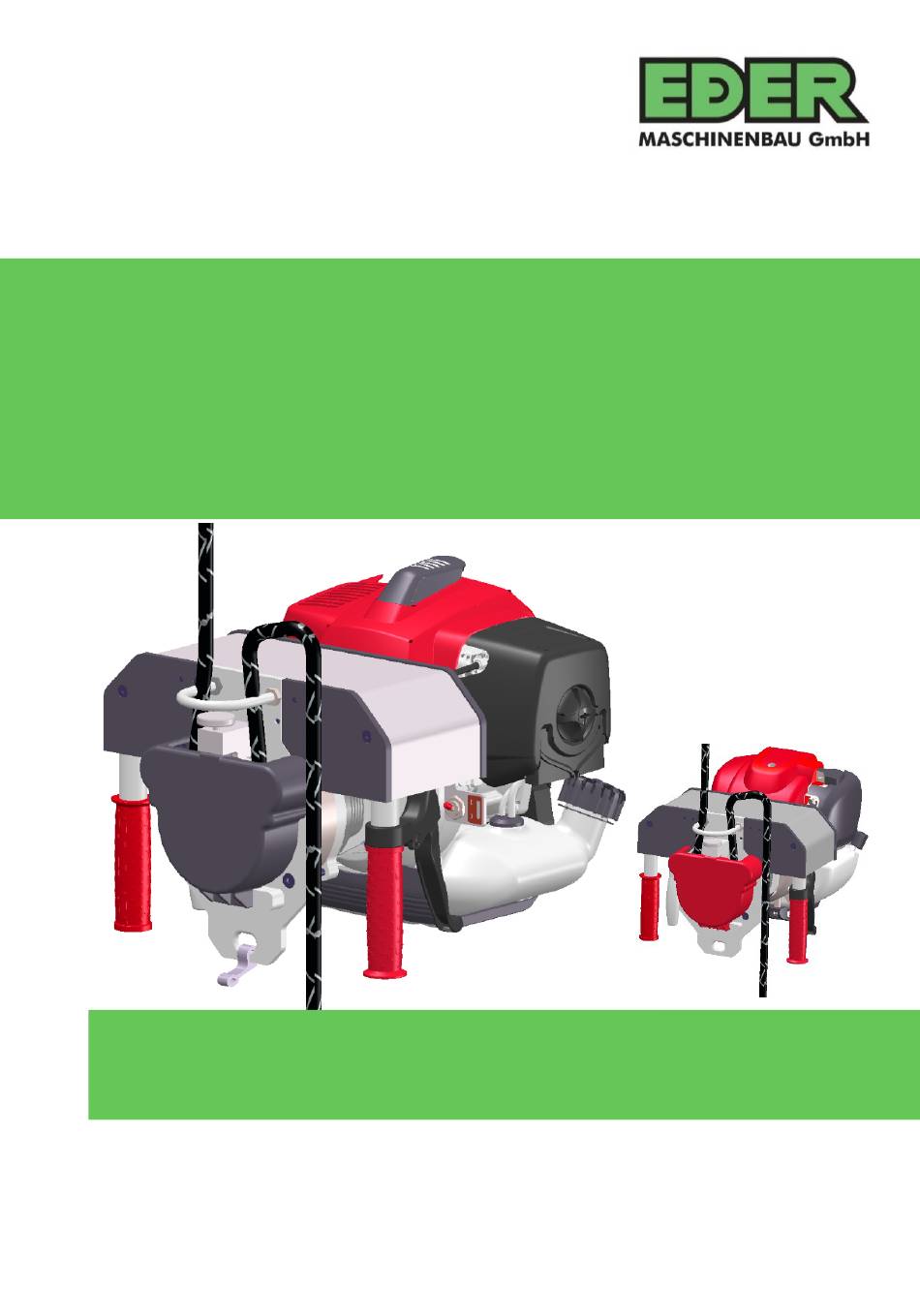

- Page 1 Original 270900_00 | 09.2021 Operating instructions EDER Power Climber Climbing aid for ascending/descending a rope Type EPC 130 Type EPC 240 Schweigerstraße 6 – 38302 Wolfenbüttel - Germany EDER Power Climber 270900_00 | 09.2021...
-
Page 2: Table Of Contents
Starting the engine ................. 24 Operation ....................24 Cleaning and maintenance ..............27 Rope wear ....................28 Maintenance and faults ................28 Decommissioning and disposal ............. 29 Technical data ..................30 Declaration of conformity ................ 31 270900_00 | 09.2021 EDER Power Climber... -
Page 3: Validity
About this guide Validity These instructions apply to the EPC 130 and EPC 240 versions of the EDER Power Climber. In addition to these instructions, the separate instructions for the respective combustion engine apply. The instructions are intended for trained industrial climbers, arborists and height rescuers. -
Page 4: Presentation Of The Warning Notes
It is imperative that you comply with these measures for averting danger! The signal words have the following meaning: Warning Meaning word DANGER! Indicates a hazard that will certainly lead to death or serious injury if you do not avoid the danger. 270900_00 | 09.2021 EDER Power Climber... -
Page 5: Symbols Used In This Manual And On The Device
The operating instructions contain important information for safe operation. Be sure to read them before operating the engine. Exhaust gases contain carbon monoxide, a colourless, odourless and lethal gas. Do not run the engine in a closed room. EDER Power Climber 270900_00 | 09.2021... -
Page 6: Safety Instructions
EDER Power Climber. > Keep the manual in a legible condition. > Make sure that the manual is always accessible to all users. > Always pass on the EDER Power Climber to third parties together with this manual. Intended use You may only use the EDER Power Climber for the activities described in these instructions. -
Page 7: Improper Use
The EDER Power Climber EPC 130 is designed for the transport of one user with equipment and materials if necessary. The EDER Power Climber EPC 130 may only be controlled by one person. Total load on the EDER Power Climber EPC 130 must not exceed 130kg. -
Page 8: Points To Observe
Persons who use the EDER Power Climber must not be under the influence of alcohol, other drugs or medicines that affect their ability to react, nor must they be tired, ill or irritable. -
Page 9: Safety Devices
> Switch off the EDER Power Climber. > Only release yourself from the EDER Power Climber when you are secured through another belay system. > Have the malfunctions eliminated by an authorised specialist dealer. WARNING Hanging motionless in a harness can cause suspension trauma, resulting in serious injury or death. -
Page 10: Design And Function
Design and function Design EPC 130 Pulley disc Spark plug (covered) (inner/outer) Rope guide Release Descent lever Ascent lever Cover Handle Handle 30 cm Eyelet for carabiner or webbing sling 270900_00 | 09.2021 EDER Power Climber... - Page 11 36 cm 27 cm ON/OFF switch Ascent lever Air filter cover Fuel filler Strap tab Choke Starter Exhaust EDER Power Climber 270900_00 | 09.2021...
-
Page 12: Design Epc 240
Design EPC 240 Spark plug (covered) Pulley disc (inner/outer) Rope guide Release Descent lever Cover Ascent lever Handle Handle 30 cm Eyelet for carabiner or webbing sling 270900_00 | 09.2021 EDER Power Climber... - Page 13 39 cm 28 cm Descent lever Petrol pump ON/OFF switch Air filter cover Choke Exhaust Fuel filler Strap tab Starter EDER Power Climber 270900_00 | 09.2021...
-
Page 14: Transport
Reporting damage after this time is usually not accepted. > Make a note on the shipping documents in any case: "Goods are accepted subject to concealed transport damage". 270900_00 | 09.2021 EDER Power Climber... -
Page 15: Commissioning And Operation
> the ropes or other equipment do not show any damage or excessive wear, otherwise replace the equipment accordingly. > the last maintenance of the EDER Power Climber took place less than one year ago. > the handles are clean and dry >... -
Page 16: Inserting The Rope
Inserting the rope WARNING Rope type Only the official Eder climbing rope may be used for the EDER Power Climber (see name plate). This rope is certified type A according to EN 1891. Other rope types can lead to increased wear, spinning or tearing. -
Page 17: Assembly And Use
Observe the applicable work safety regulations, directives on industrial safety and health, and legislation in your country. The possible configurations for using the EDER Power Climber are shown below. Before ascending or descending with the device, familiarise yourself with the local situation and check whether it is possible to set it up and use it in accordance with the applicable safety standards. - Page 18 Mobile fall arrester Belay rope Harness Belay rope type A according to EN 1891 - Observe the operating instructions of the mobile fall arrester and the maximum permissible weight for the energy absorber used. 270900_00 | 09.2021 EDER Power Climber...
- Page 19 Energy absorber Belay rope Mobile fall arrester Belay rope type A according to EN 1891 - Observe the operating instructions of the mobile fall arrester and the maximum permissible weight for the energy absorber used. EDER Power Climber 270900_00 | 09.2021...
- Page 20 Belay rope type A according to EN 1891 - Observe the operating instructions of the mobile fall arrester and the maximum permissible weight for the energy absorber used. Visual contact and communication must be possible at all times. 270900_00 | 09.2021 EDER Power Climber...
- Page 21 Belay rope type A according to EN 1891 - Observe the operating instructions of the mobile fall arrester and the maximum permissible weight for the energy absorber used. Visual contact and communication must be possible at all times. Ensure that a suitable pulley is used. EDER Power Climber 270900_00 | 09.2021...
- Page 22 Person to be rescued Rescuer Belay rope type A according to EN 1891 - Observe the operating instructions for the mobile fall arrester and the energy absorber, as well as the maximum permissible weight. 270900_00 | 09.2021 EDER Power Climber...
- Page 23 Use of the Eder Power Climber without a belay rope is always at your own risk and Eder Maschinenbau GmbH accepts no liability in this case.
-
Page 24: Starting The Engine
Starting the engine See the separate instruction manual for the engine. Operation To climb the rope, the operator hooks into the EDER Power Climber's carabiner loop with his carabiner on the climbing harness or with a webbing sling. 270900_00 | 09.2021... - Page 25 In this case, observe the regulations that apply in your country. By pressing the ascent lever, the engine is accelerated and the EDER Power Climber moves upwards on the rope. To stop, release the lever again. Be careful not to accelerate too much.
- Page 26 Replace the rope. The rope will wear out within a few seconds if it slips and can be heavily damaged, or even break. Burns • During operation the engine becomes hot, especially at the exhaust. 270900_00 | 09.2021 EDER Power Climber...
-
Page 27: Cleaning And Maintenance
> Remove possible rope abrasion from the device > Use a dry or slightly damp cloth and, if necessary, a commercially available cleaning agent for the exterior surfaces. > Do not use any grease-dissolving, caustic or aggressive cleaning agents EDER Power Climber 270900_00 | 09.2021... -
Page 28: Rope Wear
Maintenance and faults The EDER Power Climber must be inspected annually by a certified workshop. If the inspection sticker next to the name plate has expired, the EDER Power Climber must not be used. -
Page 29: Decommissioning And Disposal
Decommissioning and disposal If the EDER Power Climber is no longer fit for use and is to be scrapped, you must deactivate and dismantle it, i.e. you must bring the device into a state in which it can no longer be used for the purposes for which it was designed. -
Page 30: Technical Data
Technical data EPC 130 Technical data Value Note Rope Eder climbing rope Other ropes not permitted EN 1891 Type A Type: ECR (Eder 12.9mm Climbing rope) Weight 10.9 kg Without 4-stroke fuel Max. permissible load 130kg Max. 1 person Ascent speed 0.5m/s (130kg) -
Page 31: Declaration Of Conformity
Germany Herewith declares that the machine designated below complies with the relevant essential safety and health requirements of the EC Machinery Directive 2006/42/EC due to its design and construction. Main designation: EDER EDER Power Climber Type: EPC 130 Serial number: EPC-130-01000... - Page 32 Eder Mechanical Engineering GmbH Schweigerstraße 6 38302 Wolfenbüttel Germany www.eder-maschinenbau.de info@eder-maschinenbau.de 270900_00 | 09.2021 EDER Power Climber...
