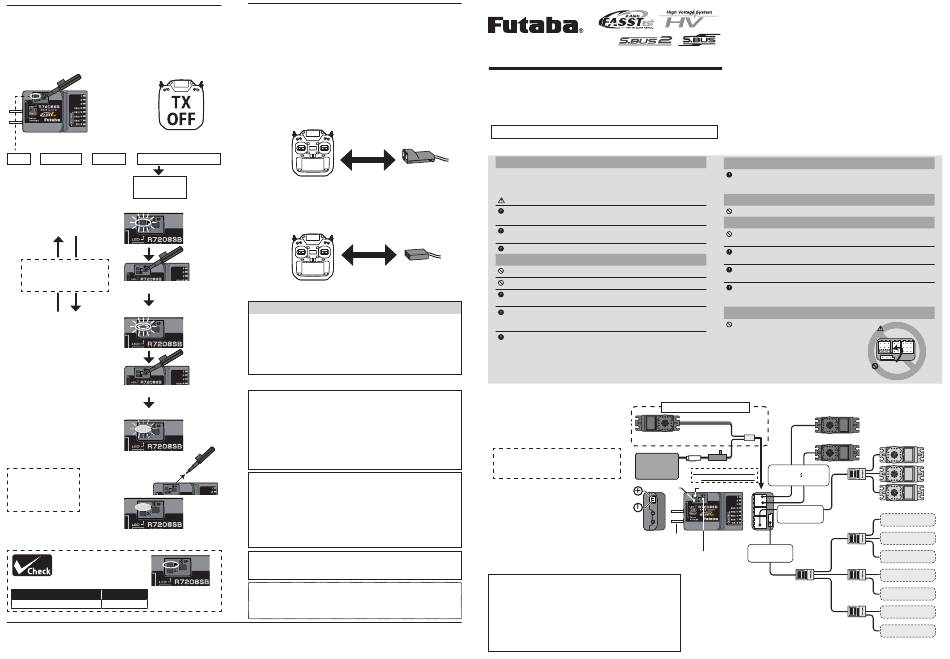

FUTABA R7208SB User Manual

FASSTest12CH(Telemetry OFF）mode
This mode is forcibly turning off telemetry transmission to prevent
collision of telemetry signals from the receiver to the transmitter
when using dual RX link mode in FASSTest12ch mode.
1
Turn on the receiver. [Transmitter is always OFF]
2
Press and hold the SW for 5 seconds or more.
Blinking switches every 5 seconds as follows.
RED ⇒ ORANGE ⇒ GREEN ⇒ ORANGE slow blink
3
Release the
switch here
Blinks ORANGE once
FASSTest12CH(Telemetry
OFF）mode : OFF
Press SW once more
to return to flashing
4
orange once
Press switch
Blinks ORANGE twice
FASSTest12CH(Telemetry
OFF）mode : ON
5
Press and hold the SW
Blinks ORANGE
6
Release SW
C h a n g e t o t h i s C h a n g e t o t h i s
mode when using mode when using
FASSTest12CH in FASSTest12CH in
dual RX link mode. dual RX link mode.
Solid ORANGE
7
Turn off the receiver power
After restarting, the
LINK LED lights up.
In Fasstest12Ch Telemetry Off Mode
Status LINK LED
Start Orange Solid
Hobby Radio Control Business Center Sales & Marketing Department
1080 Yabutsuka, Chosei-mura, Chosei-gun, Chiba-ken, 299-4395, Japan TEL: +81-475-32-6051, FAX: +81-475-32-2915

How to Dual Rx Link

1. Install two receivers on the aircraft as shown in the
wiring diagram.
2. Link the two receivers using the dual receiver feature
of the transmitter.
For systems without dual receiver capability, link
each receiver in turn.
Transmitter in link mode
For FASSTest 18CH Select
dual mode and link primary
*Follow the link procedure
for each receiver manual.
Transmitter in link mode
For FASSTest 18CH Select dual
mode and link secondary
◆ About telemetry system
When using the dual receiver function
・The telemetry function of the main receiver can be used
・Sub-receiver telemetry function is not available
Other than dual receiver function
・Telemetry not available
・Set telemetry to INH (disabled)

Compliance Information Statement (for Canada)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device. This equipment com-
plies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
French: Cet appareil radio est conforme au CNR-210 d'Industrie Canada. L'utilisation de ce dispositifest
autorisée seulement aux deux conditions suivantes : (1) il ne doit pas produire de brouillage, et (2) l'utilisateur
du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même sice brouillage est suscep-
tible de compromettre le fonctionnement du dispositif. Cet équipement est conforme aux limites d'exposition
aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement
non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la
.
source de rayonnement et votre corps

Compliance Information Statement (for U.S.A.)

This device, trade name Futaba Corporation, model number R7208SB, complies with part15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION: To assure continued FCC compliance
1. Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
The responsible party of this device compliance is:
FUTABA Corporation of America 2681 Wall Triana Hwy Huntsville, AL 35824, U.S.A.
Phone:1-256-461-9399 FAX:1-256-461-1059 E-mail: service@futabaUSA.com

Declaration of Conformity (for EU)

Hereby, Futaba Corporation declares that the radio equipment type is R7208SB in compliance with Directive
2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
http://www.rc.futaba.co.jp/english/dl/declarations.html
本產品符合低功率電波輻射性電機管理辦法 第十二條、第十四條等條文規定
1. 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大
功率或變更原設計之特性及功能。
2. 低功率射頻電機之使用不得影響飛航安全及干擾合法通信 ； 經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射
頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
FUTABA CORPORATION
©FUTABA CORPORATION
1M23N38308
R7208SB
◆ FASSTest-2.4GHz Bidirectional Communication System
◆ Dual Rx Link System Equipment
◆ S.BUS2 / S.BUS Port and 8 Channels for Conventional System
Receiver
● Applicable systems: Futaba FASSTest-2.4GHz system transmitter

Usage precaution

Turn on the main
• Analog servos cannot be used with the R7208SB in the FASSTest
12CH mode.
receiver and link
• Don't connect to Extra Voltage before turning on a receiver.

WARNING

Changes or modification not approved by the party responsible for
compliance could void the user's authority to operate the equipment.
The R7208SB receiver should be protected from vibration by foam
rubber, Velcro, or similar mounting methods. Protect from moisture.
Keep away from conductive materials to avoid short circuits.

Antenna installation precaution

Do not cut or bundle the receiver antenna wire.
Turn on the sub
Do not bend the coaxial cable. It causes damage.
receiver and link
The antennas must be mounted in such a way to assure they are strain
relieved.
Keep the antenna as far away from the motor, ESC and other noise
sources as you possibly can.
Do not touch the antenna to metal, carbon, or other conductive material.
Be sure that the two antennas are placed at 90 degrees to each other.
■ The R7208SB has two antennas. In order to maximize signal reception
and promote safe modeling Futaba has adopted a diversity antenna system.
This allows the receiver to obtain RF signals on both antennas and fly
problem-free.
(Typical installation)
The R7208SB The R7208SB has a port switching has a port switching
function. If SB2/4 function. If SB2/4 to to SB2/7
set to S.BUS2, sensors can be connected. set to S.BUS2, sensors can be connected.

R7208SB Specifications

FASSTest-2.4 GHz system(18 ch/12 ch mode)
S.BUS2 and S.BUS port and 8 channels for conventional system receiver
• Dual antenna diversity
• Size: 0.98 x 1.53 x 0.56 in. (24.9 x 38.8 x 14.3 mm)
• Weight: 0.39 oz. (11.0 g)
• Power requirement: 3.7 V to 7.4 V(Voltage range: 3.5 V to 8.4 V)
• Battery F/S Voltage: It sets up with a transmitter
• Extra Voltage port: 0 ～ 70 V DC
2022, 9 (1)

Antenna installation for carbon fuselage

You must leave 30mm at the tip of the antenna fully exposed. The
exposed antenna should be secured so that it cannot move around or
back inside of your aircraft.
Be careful of connector insertion
Don't connect an S.BUS servo / gyro to S.BUS2 connector.

Link precaution

Do not perform the linking procedure while the motor's main power is
connected or the engine is operating as it may result in serious injury.
When the linking is complete, please cycle the receiver power and
ensure the receiver is properly linked to the transmitter.
Please power up your system in this order: Transmitter first, followed
by the receiver.
If the R7208SB receiver was previously linked to another transmitter,
make sure that transmitter is not operating while linking the receiver to
the new transmitter.

Connector precaution

Don't connect a connector, as shown in a
before figure.
■ It will short-circuit, if it connected in
this way. A short circuit across the battery
terminals may cause abnormal heating,
fire and burns
When all ports are used.
Servo
SB2/7 ports are also ports are also
Battery
Switch
3.7 ～ 7.4 V
A battery is connectable
also with which port.
Mode LED
Link LED
Extra Voltage Port
It connects with the battery
for power, etc.
Ex t e r n al vo l t a g e i n p u t
cable of an option is used.
R7208SB
The voltage of the battery
Antenna
can be displayed with a
transmitter.
Mode switch
(It is not used for a link.)
*Be sure that when using ESCs regulated
output the capacity of the ESC must meet
your usage condition.
*Never use dry batteries for the power sup-
ply of the R7208SB as they may cause
difficulties.

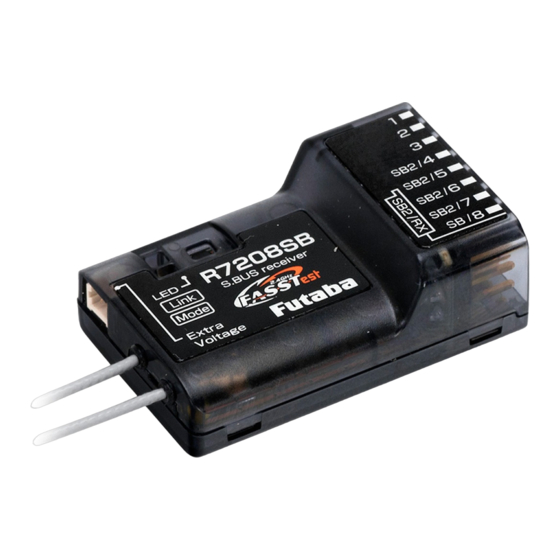

Thank you for purchasing a Futaba R7208SB
FASSTest-2.4GHz compatible receiver. The
R7208S B r e c e i v e r f e a t u r e s b i - d i r e c t i o n a l
communication with a FASSTest Futaba transmitter
using the S.BUS2 port. Using the S.BUS2 port
an impressive array of telemetry sensors may be
utilized. It also includes both standard PWM
output ports (1-8ch) and S.BUS output ports. The
R7208SB can also be switched to the Dual Rx
Link System. This system can ensure safety by
mounting two receivers on one aircraft.
DANGER
Receiver
Do not insert either a switch
or battery in this manner.
Servo for conventional
system
HUB
S.BUS Servo
S.BUS Gyro
Channel 1 output
Channel 8 output
HUB
S.BUS port
(8/SB）
Temperature
Sensor
Voltage
Sensor
HUB
S.BUS2 port
Voltage
(S.BUS2）
Sensor
RPM
Sensor
HUB HUB
Altitude
Sensor
Airspeed
Sensor
HUB
S.BUS2 Tool
