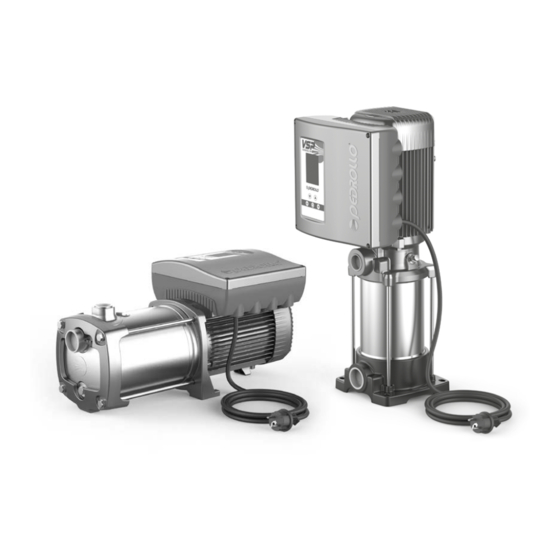

Inverter on board for electric pump control

Advertisement

Quick Links

PEDROLLO S.p.A.
Via E. Fermi, 7 37047 – San Bonifacio (VR) - Italy
Tel. +39 045 6136311 – Fax +39 045 7614663
e-mail: sales@pedrollo.com – www.pedrollo.com
code 12039901Q01
00/22
VSP
INVERTER ON BOARD FOR ELECTRIC PUMP
CONTROL
MADE IN ITALY
EN Correct disposal of WEEE (DIRECTIVE 2012/19/EU)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PEDROLLO VSP

  • Page 1 PEDROLLO S.p.A. Via E. Fermi, 7 37047 – San Bonifacio (VR) - Italy Tel. +39 045 6136311 – Fax +39 045 7614663 e-mail: sales@pedrollo.com – www.pedrollo.com code 12039901Q01 00/22 INVERTER ON BOARD FOR ELECTRIC PUMP CONTROL MADE IN ITALY EN Correct disposal of WEEE (DIRECTIVE 2012/19/EU)
  • Page 3: Table Of Contents

    PUMPS CONNECTION IN PARALLEL ............................ 11 START-UP ................................... 11 PUMP PRIMING ................................11 FUNCTIONING PARAMETERS ............................. 12 ADVANCED PARAMETERS MENU ............................14 ALARMS ..................................... 21 TROUBLESHOOTING ................................23 MAINTENANCE ................................. 26 DISPOSAL................................... 26 DECLARATION OF CONFORMITY ............................26 VSP |...
  • Page 4: General Information

    5 days from receipt to our retailer or, in the event of direct purchase, to Pedrollo Customer Service. • The indications and instructions in this manual refer to standard use of the product; for situations, functions or particular applications not described below, contact the retailer.
  • Page 5: Warnings

    • Only qualified personnel capable of making electrical connections in accordance with national regulations may carry out installation and maintenance. • The VSP must only be used for the purpose and operation for which it was designed. Any other application and use should be considered misuse and hazardous.
  • Page 6: Product Description

    PRODUCT DESCRIPTION VSP is a speed regulator with the following characteristics. • It receives mono-phase or three-phase alternating voltage. • It supplies alternating three-phase output voltage. • Check motor on 3 phases. • Variable speed adjustment (inverter) • Keeps system pressure constant (curves with variable rotations).
  • Page 7: Use Limitations

    AUTO-LIMITATION FOR OVERLOAD If the current detected by the inverter or the temperature of the inverter components exceeds the safety limits, VSP proceeds with a progressive reduction in operating frequency until the values exceeding the limits have returned within them.
  • Page 8: Display Symbols

    • In a ventilated room, protected from the weather and not exposed to sunlight. • On a solid horizontal base with screws. • Do not install the VSP in explosive environments or in the presence of dust, acid, gas that are corrosive and/or flammable. TYPICAL INSTALLATIONS...
  • Page 9: Pressure Sensor

    • Fasten the unit to a horizontal surface with screws. • If the pump must be installed outside where frost can occur, protect it to avoid freezing. For correct operation of the VSP, installation is indispensable of an adequate expansion tank. • The expansion tank: –...
  • Page 10: Electrical Connection

    • The voltage of the VSP power line can vary in a range between +/-10% of the plate power voltage. • Check the rated current absorbed by the VSP unit is compatible with the plate data.
  • Page 11: Power Supply Terminal Board

    POWER SUPPLY TERMINAL BOARD The power terminals are different if the VSP is three-phase or mono-phase.  F = MAINS SUPPLY PHASE VSP mono-phase terminals 1 ~ 230 V  N = MAINS SUPPLY NEUTRAL  U = MAINS SUPPLY PHASE...
  • Page 12 "STRUCTURE OF THE ADVANCED PARAM- INOUT CONFIG. ETERS MENU". OUTPUT 1 RELAY COM_1 Specific relay first digital output for signalling "RUN=VSP unit running" or "ERROR=VSP unit error". NO_1 SELECT For further details, see in the part "STRUCTURE OF THE ADVANCED PARAM- NC_1 INOUT CONFIG.
  • Page 13: Pumps Connection In Parallel

    – OUT OF SERVICE if at time of last switch off it was OUT OF SERVICE. In the event of accidental contact of the voltage, if VSP was IN SERVICE (ON), on resetting the mains, it returns IN SERVICE (ON).
  • Page 14: Functioning Parameters

    FUNCTIONING PARAMETERS • The display on the control panel assumes three different types of colours based on the status in which the VSP is found. – WHITE display if the VSP is found in STAND BY –...
  • Page 15 • Press the key to return to the initial system pressure display.. • The VSP basic operating parameters are set by default at certain values. • In this section, only the SYSTEM PRESSURE parameter can be edited. The other parameters are display.
  • Page 16: Advanced Parameters Menu

    ADVANCED PARAMETERS MENU If the default values have to be edited, the ADVANCED MENU contains all the advanced parameters of the VSP. The control panel display will turn YELLOW. List of parameters CONFIG. CONF. CONF. CONF. CONF. CONF. TEST PAR.
  • Page 17 INVERTER REACTION RAPIDNESS BASIC CONFIG REACTIONF 3 • Sets the rapidness of inverter response to pressure variations. Default 3 Range 1–5 Step 1 (*) The DEFAULT value depends on the electric pump model associated with the VSP inverter Continued VSP |...
  • Page 18 • Sets the pump stoppage delay in the dry run condition. (0=Dry0=dry run disabled) Default 0 sec Range 0–100 sec Step 1 sec (*) The DEFAULT value depends on the electric pump model associated with the VSP inverter 16 | VSP...
  • Page 19 AN1 (First analogue input selected, see terminal board diagram) AN2 (Second analogue input selected see terminal board diagram) AN1+AN2 (Selected the total of the two analogue inputs see terminal board diagram). Default NO_PREX Range NO_PREX–AN1–AN2–AN1+AN2 Continued VSP |...
  • Page 20 • Configuration and choice of use mode first external input. OFF = Disabled input FLUX = External minimum flow sensor. If this function is enabled, the VSP will be capable of determining dry running after the time set in "T DRY" BASIC CONFIG...
  • Page 21 SINGLE= use single VSP MASTER= use of VSP in MASTER mode that controls the second VSP in SLAVE mode SLAVE = use of VSP in SLAVE mode which is controlled by the second VSP in MASTER mode Default SINGOLO Range SINGOLO–MASTER–SLAVE TYPE OF PARALLEL VSP OPERATION CONF.GROUP...
  • Page 22 RESTORE DEF LOAD DEFAULT PARAMETERS RESTORE DEF CONFIRM? • This menu allows you to reset the VSP parameters if the client wants to restore the values by returning to the initial default configuration. Default No Range Yes–No 20 | VSP...
  • Page 23: Alarms

    Typical example of use can be signalled by alarm float to signal the lack of water. If the VSP is ON, that is, the operation of the electric pump is enabled in any work mode and SENSOR PRES...
  • Page 24 In this condition the pump is blocked, at the same time the ALARM OUTPUT relay activates, which can generate an external acoustic and visual signal. If the VSP is found in any work mode and an error occurs on the display board or it does ERROR LCD ERROR not respond, the VSP goes to alarm mode.
  • Page 25: Troubleshooting

    ALARM DESCRIPTION If the VSP is found in any work mode and the voltage of the “Bus DC Link” is too low, the VSP ERROR PFC.VDC.LOW goes in alarm mode. In this condition the pump is blocked, at the same time the ALARM OUTPUT relay activates, which can generate an external acoustic and visual signal.
  • Page 26 • Check the input voltage for some reason has not increased in value, or the to protection due to input overvoltage VSP is not connected to an inadequate power system (400V instead of 230V). alarm “MAX.VOLTAGE”. • Check the condition on the power cables.
  • Page 27 PROBLEM AND/OR ALARM TEST TO CARRY OUT AND/OR SOLUTION The VSP on start-up of the pump goes to • Check correct power supply on the interface board. protection due to "PFC.INV.ERR” alarm • Latching alarm • If the alarm persists, contact your nearest technical support centre for power board replacement.
  • Page 28: Maintenance

    DISPOSAL For disposal of parts composing the VSP, comply with the standards and legislation in force in the country in which the unit is used. Do not dispose of polluting parts in the environment.
