- Page 1 RV WI-FI Installation Guide and User Manual 2022V1...

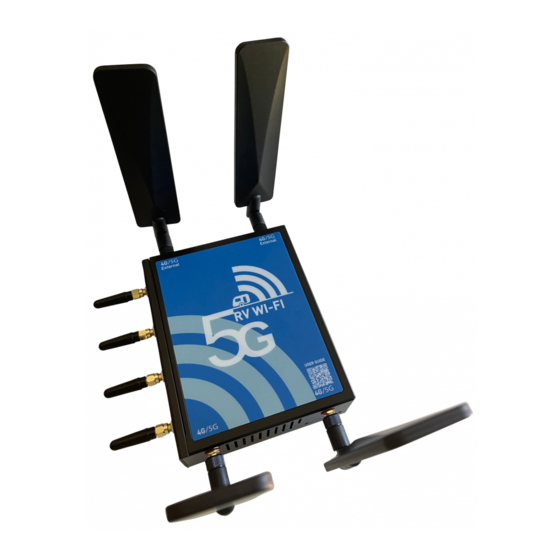

- Page 2 What makes up your RV Wi-Fi 5G Congratulations on your This purchase will give you greater freedom to enjoy your purchase of an RV Wi-Fi travelling without sacrificing the lifestyle that the internet Router. provides. RV WIFI 5G Router 4G/5G Stick Antenna’s Mounting Bracket Wi-Fi Stick Antenna’s...
- Page 3 External 4 in 1 Antenna External 4 in 1 Antenna Bracket...
-
Page 4: Warranty Registration
How to Activate the Telstra Pre Paid SIM The Telstra satchel contains your Sim Card. You need to activate this and add credit to it to finish the set up stage of your RV Wi-Fi unit. We strongly advise to do this instore to make sure the activation has been confirmed. You MUST use a Full Sized SIM card in the router OR in conjunction with the SIM adapter provided. - Page 5 SIM card Insert the SIM/Adapter into the SIM card tray with the router turned : OFF Turn the router on and wait 5 minutes for it to boot up You are now ready to connect your RV WiFi to your devices.
- Page 6 Screw into place on router: 2 x 4G/5G antenna cable into ‘4G/5G External’ ports on the top of the router; Screw into place on router: 2 x Wi-Fi antenna cables into ‘Wi-Fi/External’...
- Page 7 4G/5G external antenna 4G/5G external antenna Wi-Fi external antenna Wi-Fi Internal antenna 4G/5G internal antenna...
- Page 8 Installing your RV Wi-Fi 5G without the external antenna Set up for use with NO external antenna Choose a position for RV Wi-Fi 5G router adjacent to a single 12v power point; Screw the 4 Wi-Fi antenna’s into the Wi-Fi ports on the control Panel.
- Page 9 Connection to the RV Wi-Fi+ Router Connecting your device via Wi-Fi to your RV Wi-Fi 5G Turn on the device/s (phone/laptop etc.), that you wish to connect to the internet. Click on: ‘Settings’ or equivalent page on your device Click on : ‘Wi-Fi’ and choose the RV Wi-Fi network: On some de-...
- Page 10 Setting your Wi-Fi 5G Password. One of the great features of RV Wi-Fi is the security it provides whilst using the internet. This next section provides step by step instructions on setting your Wi-Fi password. Open the web/internet browser on your device and enter the address http://10.0.1.1 into the ‘search’...
- Page 11 Select/click on the following tab: Network. Select/click on the dropdown box: Wireless You will see two options here and will need to complete both. Choose the 5.8 option first as shown below. Select/Click on the ‘Edit’ box...
- Page 12 Setting your Wi-Fi 5G Password. Go to the ‘Interface Configuration’ Section. • Click on the ‘Wireless Security’ tab. Next to the ‘Key’ drop down box, click on the astrix. This shows what the current Wi-Fi password is set to.
- Page 13 Delete the password, by backspacing or use the delete button. • In the Key box , type your new Wifi password - your choice! (Your password must be a minimum of 8 characters, and it is case sensitive). Click on the ‘Save and Apply’ button. The screen will indicate that it is ‘waiting for configeration to apply’...
- Page 14 • Wait for this to apply. Do not turn off your device during this time. You will see a countdown clock appear from 30 seconds. The next screen will say ‘Device Unreachable’ This is due to the password being changed and the two devices no longer recognising each other.
- Page 15 Remember that it is case sensitive and some devices will automatically capitalise the first letter. Wait for your device to let you know that you are connected, You are now ready to access the internet through your RV Wi-Fi 5G. Scan to watch: How to change your Wi-Fi password from factory to your own personal password.
-
Page 16: Frequently Asked Questions
6) There is a fault with the modem. We suggest if 5.8 is available to use, then connet to it as your first option. To establish if it is a SIM card issue or a router issue, follow these steps 1) Turn on your RV WIFI router... - Page 17 What do I do if I can’t connect to the 2) On the device (phone/laptop/tablet), go to: settings Wi-Fi? 3) Go to: Wi-Fi There are a couple of causes that may have made this happen. 4) Wait for RV Wi-Fi123abc (each router will have its own unique series of numbers and 1) The Wi-Fi may have been accidently deleted letters following RV Wi-Fi), to come up on the...
-
Page 18: General Information
There are four antennas inside the external 3. When not using, turn it off, devices might antenna. 2 x 3G/4G/5G and 2 x WIFI. still be using data even when you have put them down, such as a VPN connection on What is an ‘omni-directional’... -
Page 19: Specifications
Supports: 4G/5G (MIMO) Yes, we are continually looking for new and Frequencies: 5G bands (700MHz / 850MHz / exciting features and improvements. We will 2300MHz / 3500MHz (n1/ 2/3/5/ 7/ 8/ 12/ 13/ make these available for download on our 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ website. - Page 20 2300MHz / 2600MHz (B1 / B3 / B5 / B7 / B8 / B28 /B40 ) Dimensions: Diameter: 130mm, Height: 50mm Weight: 550gms (inc bracket) Bracket: Aluminium SMA: Female (WIFI), Male (4G/5G) Gain: 6dBi Cable Length: 2 metres (x4) Type of cables: 2 x 4G/5G, 2 x WIFI...
-
Page 21: Need Help
Need Help For help with your RV Wi-Fi unit please go to: info@rvwifi.com.au and a service agent will be in touch.
