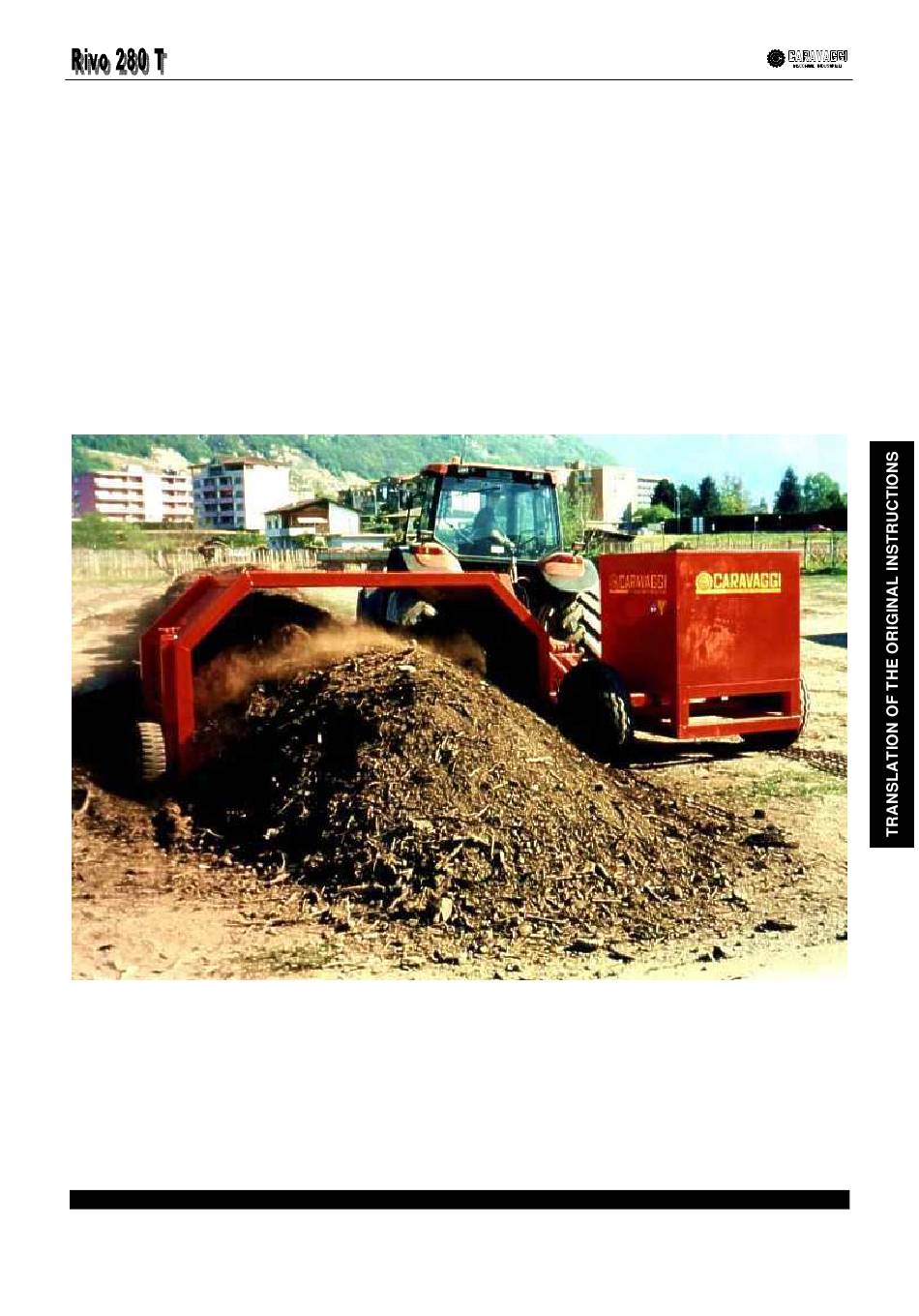

USE AND MAINTENANCE HANDBOOK
Windrow turner
RIVO 280 T
PLEASE READ THIS HANDBOOK THOROUGHLY BEFORE OPERATING THE
MACHINE.
Caravaggi Srl - Via Monte Adamello, 20 - 25037 Pontoglio (BS) - ITALY
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIVO 280 T and is the answer not in the manual?

Questions and answers

Related Manuals for Caravaggi RIVO 280 T

Summary of Contents for Caravaggi RIVO 280 T

  • Page 1 USE AND MAINTENANCE HANDBOOK Windrow turner RIVO 280 T PLEASE READ THIS HANDBOOK THOROUGHLY BEFORE OPERATING THE MACHINE. Caravaggi Srl - Via Monte Adamello, 20 - 25037 Pontoglio (BS) - ITALY...

  • Page 2: Table Of Contents

    CONTENTS 1 - INTRODUCTION PAG. 3 2 - ABOUT THIS INSTRUCTION MANUAL PAG. 6 3 - IDENTIFICATION OF THE MAIN PARTS PAG. 7 4 - CORRECT USE OF THE MACHINE PAG. 8 5 - UNPACKING AND PREPARATION PAG. 8 6 - TECHNICAL CHARACTERISTICS PAG.
  • Page 3 1. HAZARD PICTORIALS Warning! Wear a hard hat, hearing protectors and safety goggles. Warning! Wear protective gloves. Warning! Wear safety shoes. Warning! Wear clothes that are suitable for work on machines with moving parts. Hazard! Projection of splinters. Keep to a safety distance from loading and unloading equipment.
  • Page 4 Hazard! Keep arms well away from moving parts. Hazard! Keep fingers well away from cutting elements. Hazard! Make sure the blades have stopped completely before approaching. STOP Caution! Only one person must operate the machine. Caution! Machine lifting point.
  • Page 5 Danger! Keep well away from moving parts. Important! Keep to the correct machine power takeoff revs.

  • Page 6: About This Instruction Manual

    2. ABOUT THIS INSTRUCTION MANUAL This instruction manual has been written for the user of the machine, the owner, the maintenance operator and the repair technician and must always be available for consultation. It explains the purposes for which the machine was designed and the machine’s technical characteristics. It contains instructions for transport, cleaning, adjustments, use, maintenance and ordering spare parts.

  • Page 7: Identification Of The Main Parts

    3. IDENTIFICATION OF THE MAIN PARTS 1 - CARRIAGE 2 - ROTOR 3 - FRAME 4 - FRAME WHEEL 5 - BALLAST BOX...

  • Page 8: Correct Use Of The Machine

    Stop the machine immediately if anyone approaches. The mobile turner mod. Rivo 280 T of Caravaggi has been built to be able to turn and amass in piles plant material previously crushed and screened. It is not allowed to use for different purposes (eg. Turning materials other than those listed above).

  • Page 9: Technical Characteristics

    6. TECHNICAL CHARACTERISTICS A CE identification plate is affixed on the mobile turner 280 T in a clearly visible position (Fig. 5). In all communications with the manufacturer, state the serial number on the identification plate. 25037 PONTOGLIO (BS) - VIA M. ADAMELLO, 20 TEL.

  • Page 10: Safety Rules

    The mobile turner mod. Rivo 280 T of Caravaggi has been built to be able to turn and amass in piles plant material previously crushed and screened. It is not allowed to use for different purposes (eg. Turning materials other than those listed above).
  • Page 11 7.2 SPECIFIC SAFETY RULES 7.2.1 Cardan-shaft models • All maintenance, adjustment and cleaning operations (e.g. removing foreign bodies from the blades) must be carried out with the machine standing on firm ground, the tractor engine off, the handbrake engaged, the ignition switched off and the key removed.

  • Page 12: Starting Up

    • Only use cardan shafts with integral guards. • When the cardan shaft is disconnected from the power takeoff, it must always be placed on its support. • Caravaggi declines all liability for damage or injury caused by incorrect installation and use of the cardan shaft.
  • Page 13 8.4 Functioning Make sure the work area is clear of people, vehicles and any other obstacles. Perform the following operations with the utmost care. 8.4.1 Preliminary operations Check the dimensions of the pile of compost to be turned (max width 2800 mm, max height 1500 mm). 8.4.2 Operating procedure •...

  • Page 14: Maintenance

    9. EXTRAORDINARY MAINTENANCE Maintenance must always be performed with cardan shaft and power takeoff disengaged. Always follow the accident prevention rules very carefully. 9.1 Replacing the rotor paddles • Raise the rotor 20-30 cm off the ground from the edge of the paddles by operating the jack on the frame wheel.

  • Page 15: Fault-Finding

    10. FAULT-FINDING PROBLEM CHECKS THE ROTOR DOES NOT TURN WITH THE TRACTOR ENGINE ON. A + B + C LOSS OF POWER DURING TURNING. B + D + E + F EXCESSIVE VIBRATION. EXCESSIVE PADDLE WEAR. CHECKS CHECK THAT THE TRACTOR POWER TAKEOFF IS ENGAGED. CHECK THE REDUCTION GEAR.

  • Page 16: Maintenance Schedule

    11. MAINTENANCE SCHEDULE Operations to be performed at the end of each day. Follow the instructions in this order, always bearing in mind the safety rules. Check all the rotation points (brackets, joints, etc.) and lubricate with a suitable grade and quantity of grease.

  • Page 17: Warranty

    If the WINDROW TURNER presents material or manufacturing defects, the owner should send a written claim under the warranty, as instructed below. 1 – The machine must be taken to the dealer from which it was purchased or to an authorised CARAVAGGI dealer.
