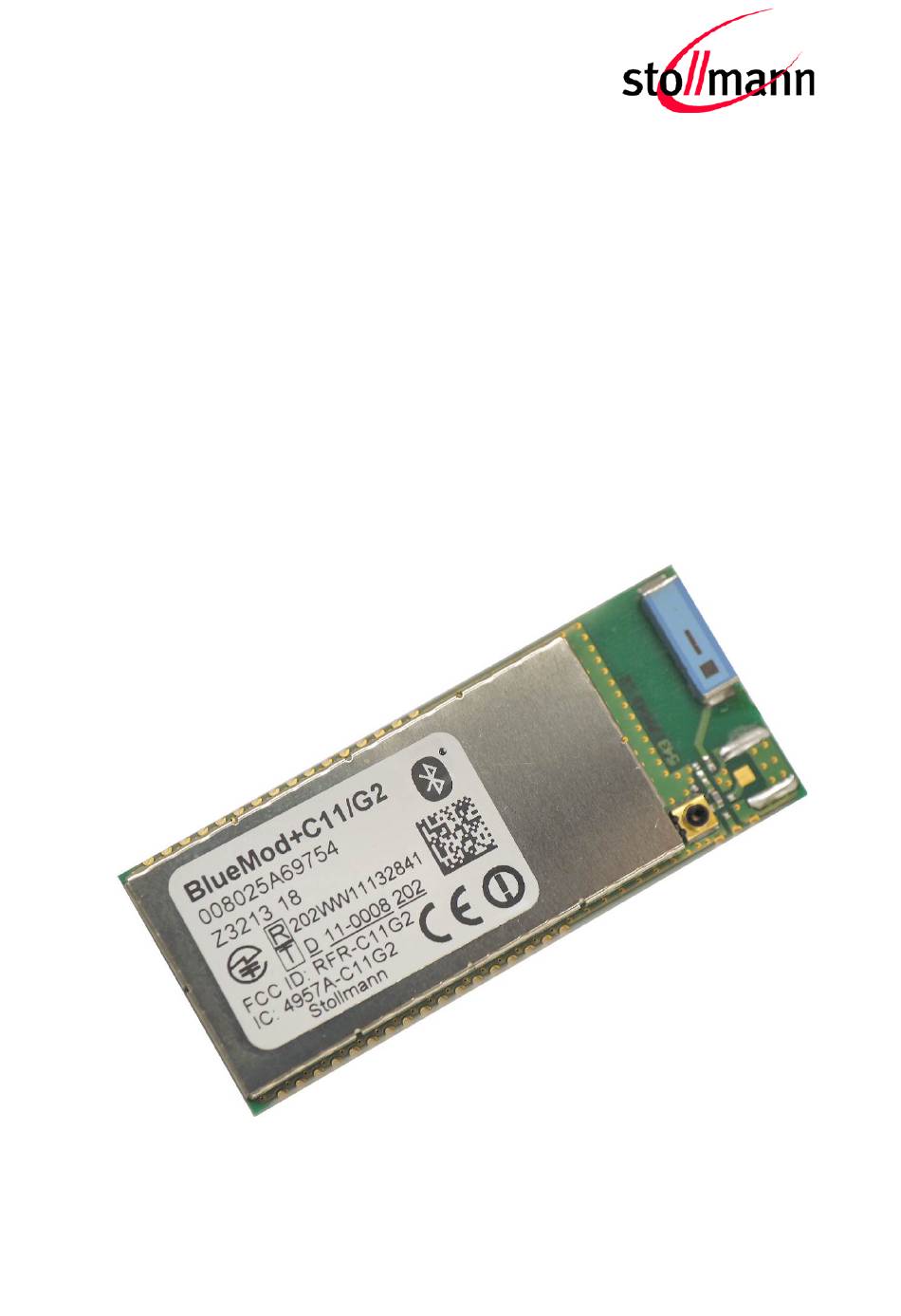

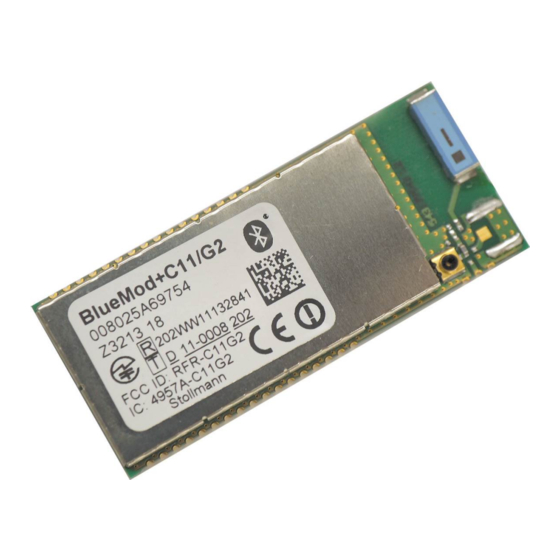

- Page 1 BlueMod+C11/G2 Hardware Reference Release r09...
- Page 2 Stollmann reserves the right to make changes to the product without prior notice or to replace the product with a successor model. Of...
-
Page 3: Table Of Contents
BlueMod+C11/G2 Hardware Reference Table of contents Introduction ....................... 6 1.1 Feature Summary ..................7 1.2 Applications ....................7 Block Diagram ....................8 Application Interface ..................9 3.1 Power Supply ....................9 3.2 Power-up slew-rate ..................10 3.3 Power-On-Reset ..................11 3.4 Serial Interface .................... - Page 4 BlueMod+C11/G2 Hardware Reference 5.3.2 GPIO, JTAG; Serial IF and Test Pins ..........24 5.3.3 USB Pins .................... 24 5.4 Power consumption and power down modes ..........24 5.4.1 SPP configuration ................25 5.4.1.1 Deep Sleep state ................25 5.4.1.2 Power down state ................. 25 5.4.1.3...
- Page 5 BlueMod+C11/G2 Hardware Reference 7.6.1 NCC Certificate ................... 45 7.6.2 NCC Warning in Chinese ..............45 7.7 Bluetooth Qualification ................46 7.8 RoHS Declaration ..................47 Related Documents ..................48 Packing ......................49 9.1 Package Label .................... 50 10 Ordering Information..................51 11 History ......................
-
Page 6: Introduction
BlueMod+C11/G2 Hardware Reference 1 Introduction This Hardware Reference Guide documents how BlueMod+C11/G2 can be integrat- ed into customer systems. It addresses developers of hardware environments for BlueMod+C11/G2. For detailed information about software interfaces refer to the software reference manual. For the latest version of this document please check the following URL: http://www.stollmann.de/en/modules/bluetooth-products/bluemod-c11g2/... -
Page 7: Feature Summary
• 5V tolerant I/Os • -40°C to +85°C industrial operating temperature range • RoHS Compliant 1.2 Applications BlueMod+C11/G2 can be used in different applications. Available applications are • Bluetooth SPP • BlueCluster Adhoc Networking Please refer the software reference and interface specifications for further infor- mation. -
Page 8: Block Diagram
BlueMod+C11/G2 Hardware Reference 2 Block Diagram BlueMod+C11/G2 +3V3-PA +3V3 EXT-RES# ARM7 RS-232 (TTL) AT91SAM7S GPIO 256k Single Chip USB 2.0 FS FLASH Class1 JTAG Bluetooth BC04-ROM SRAM TEST Fig. 1 Block Diagram Release r09 www.stollmann.de Page 8 of 54... -
Page 9: Application Interface
3 Application Interface 3.1 Power Supply The BlueMod+C11/G2 has two power supply rails, which always should be kept on the same voltage level. Although we recommend using two different power rails, it is as well possible to feed both rail from a single supply. -
Page 10: Power-Up Slew-Rate
RF performance. 3.2 Power-up slew-rate The Power up slew-rate for the BlueMod+C11/G2 must be more then 6V/ms for proper startup of the AT91SAM7S Controller used on the BlueMod+C11/G2. Figure 3 shows an example circuit for a power supply. The Output Voltage of the Regulator is enabled by the Threshold Voltage of a RESET-Circuit, when VCC Startup ramp reaches a valid Voltage. -
Page 11: Power-On-Reset
BlueMod+C11/G2 Hardware Reference 3.3 Power-On-Reset The BlueMod+C11/G2 is equipped with circuitry for generating Power-On Reset and to provide under-voltage supervision. An integrated circuit type Maxim DS1818R provides this functionality. A reset is generated if the 3.3V supply rail including noise falls below 2,8V to 2,97V. -
Page 12: Baudrate Deviation
BlueMod+C11/G2 Hardware Reference 3.4.1 Baudrate Deviation The following table shows the deviation in percent of the standard data rates. The deviation is caused by the inaccuracy of the crystal oscillator. Data Rate (bits/s) Deviation (%) 1200 2400 4800 9600 19200 ±0.5... -
Page 13: Rs-485 Support
BlueMod+C11/G2 Hardware Reference 3.4.2 RS-485 Support For RS-485 support the serial interface has to be connected to an external Trans- ceiver, we suggest the MAX3491E from Maxim Integrated Products, due to it sup- ports full duplex transmissions. BlueMod+C11/G2 MAX3491E UART_TX... - Page 14 BlueMod+C11/G2 Hardware Reference y tes max Figure 4. UART Timing Diagram Release r09 www.stollmann.de Page 14 of 54...
-
Page 15: Gpio Interface
Please refer to the ATMEL data sheet AT91SAM7Sxxx Rev. F for complete information. The possibilities de- picted in the following chapters are a subset only. The following function blocks may be usable on the BlueMod+C11/G2: Release r09 www.stollmann.de... -
Page 16: Master/Slave Spi Interface
BlueMod+C11/G2 Hardware Reference 3.6.1 Master/Slave SPI Interface Pin # GPIO# Alternative Description Direction IO Name Signal Name Master Slave GPIO1 MISO Master In Slave Out GPIO0 MOSI Master Out Slave In GPIO3 SPCK Serial Clock GPIO2 NPCS0 Peripheral. Chip Select Clock polarity and phase are programmable. -
Page 17: Multi Channel Pwm Controller
BlueMod+C11/G2 Hardware Reference 3.6.3 Multi Channel PWM Controller Each PWM channel can be programmed individually in regard to IO pin assignment and PWM functionality. Therefore, PWM application designers can choose a proper channel and pin for their application with the chance not to interfere with other nec- essary interfaces. -
Page 18: Bluetooth Radio Interface
Pins A-26 and A28 shall always be connected directly to the reference GND plane 3) The BlueMod+C11/G2/AP variant presents a 50Ω impedance antenna interface on pin A-27 with adjacent GND pins A-26 and A-28. In this case Pin A-26 and A28 shall be connected directly to the reference GND plane. -
Page 19: Pin Description
BlueMod+C11/G2 Hardware Reference 4 Pin Description The BlueMod+C11/G2 module is soldered on customers PCB via stamp pins locat- ed on the module PCB edges. 4.1 Pin Numbering Top View Release r09 www.stollmann.de Page 19 of 54... -
Page 20: Pin Description
BlueMod+C11/G2 Hardware Reference 4.2 Pin Description 4.2.1 General Pin Description Signal Type Description tive /EXT_RES I-PU Reset low active internal 47k pull-up GPIO11 (DTXD) I/O-PU General Purpose IO – Debug Uart Output GPIO3 I/O-PU General Purpose IO GPIO0 I/O-PU General Purpose IO... -
Page 21: Application Specific Pin Description
BlueMod+C11/G2 Hardware Reference 4.2.2 Application Specific Pin Description 4.2.2.1 SPP Configuration Pin Name SPP function Type Description tive GPIO8 Reserved I-PU GPIO10 Reserved I-PU GPIO7 /LED1 Device ready GPIO9 /LED2 Bluetooth connected. Active if a Bluetooth connection exists. Inactive in idle state. -
Page 22: Electrical Characteristics
BlueMod+C11/G2 Hardware Reference 5 Electrical Characteristics 5.1 Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause per- manent damage to the device. These are stress ratings only, and functional opera- tion of the device at these or any other conditions beyond those indicated under “Electrical Requirements”... -
Page 23: Operating Conditions
BlueMod+C11/G2 Hardware Reference 5.3 Operating Conditions 5.3.1 RF and Supply Connections Vcc = 3.0V to 3.6V, T = - 40°C to +85°C Item Condition Limit Unit Frequency Range 2400 2483.5 Pin A-27 Load impedance Measured with network ana- Ω Pin A-27 or... -
Page 24: Gpio, Jtag; Serial If And Test Pins
3.6- 5.4 Power consumption and power down modes To reduce power consumption of the BlueMod+C11/G2 power down modes can be activated automatically by the BlueMod+C11/G2 (controlled by parameter settings). If no Bluetooth connection is established, the following states are implemented, the activation of these states can be controlled by the parameters bpsm and pwd. -
Page 25: Spp Configuration
The Bluetooth RF is activated every 1.25 seconds, paging requests from other Blue- tooth devices will be recognized after that intervals and accepted if allowed. Addi- tionally rising control line DTR will activate the BlueMod+C11/G2 and may initiate a Bluetooth link dependent on other parameters. -
Page 26: Power Consumption
BlueMod+C11/G2 Hardware Reference 5.4.1.4 Power Consumption = +3,0V to +3,6V V nominal = +3,3V I/O lines open SUPPLY’ SUPPLY = - 40°C to +85°C nominal = +20°C All given Values are typical measured values, for max. values add 25% Condition... -
Page 27: Rf Performance
BlueMod+C11/G2 Hardware Reference 5.5 RF performance Vcc = 3.0V to 3.6V, T = - 40°C to +85°C Receiver Frequency [GHz] Limit Unit Spec 2.402 -80,0 -93,0 Sensitivity at 0.1% ≤-70 2.441 -80,0 -93,0 BER DH1 2.480 -80,0 -93,0 2.402 -80,0 -93,0 Sensitivity at 0.1%... - Page 28 BlueMod+C11/G2 Hardware Reference Normal Condition Vcc = 3.3V Tamb = + 20°C Extreme Conditions: Vcc = 3.0V to 3.6V, Tamb = - 40°C to +85°C Given parameters are valid for extreme conditions unless otherwise noted Transmitter Frequency [GHz] Limit Unit...
-
Page 29: Antenna-Gain And Radiation-Pattern
BlueMod+C11/G2 Hardware Reference 5.5.1 Antenna-Gain and Radiation-Pattern Peak Antenna-Gain is appr. 2dBi Release r09 www.stollmann.de Page 29 of 54... -
Page 30: Power-Up Time
BlueMod+C11/G2 Hardware Reference 5.6 Power-up Time The time until the BlueMod+C11/G2 is able to accept link requests or serial data is about 4 seconds after power-up. This time can be reduced to approx. 1.5 seconds by parameter change. 5.7 Wake-up Time The time until the BlueMod+C11/G2 is able to process commands coming from a sleep state / deep sleep state. -
Page 31: Mechanical Characteristics
BlueMod+C11/G2 Hardware Reference 6 Mechanical Characteristics 6.1 Dimensions +0,1 +0,1 47,5 0,15 -0,1 -0,1 +0,25 3,35 -0,25 6.2 Connectors Except for the stamp pins A-[1-17,26-28] and C-[1-16] no user accessible connect- ors are implemented. Release r09 www.stollmann.de Page 31 of 54... -
Page 32: Recommended Land Pattern
BlueMod+C11/G2 Hardware Reference 6.3 Recommended Land Pattern Land pattern recommended for manual soldering Alternative land pattern recommended for reflow soldering Release r09 www.stollmann.de Page 32 of 54... -
Page 33: Soldering Temperature-Time Profile (For Lead-Free Re-Flow Soldering)
BlueMod+C11/G2 Hardware Reference 6.4 Soldering Temperature-Time Profile (for lead-free re-flow solder- ing) The data here is given only for guidance on solder and has to be adopted to your process and other re-flow parameters for example the used solder paste. The paste manufacturer provides a re-flow profile recommendation for his product. -
Page 34: Housing Guidelines
BlueMod+C11/G2 Hardware Reference 6.5 Housing Guidelines The individual case must be checked to decide whether a specific housing is suita- ble for the use of the internal antenna. A plastic housing must at least fulfill the fol- lowing requirements: Non-conductive material, non-RF-blocking plastics... -
Page 35: Antenna Issues
This is functional for a BlueMod+C11/G2/-AI integrated into a plastic housing. No additional antenna is required. For an external antenna to be set in, e.g. because the BlueMod+C11/G2 is integrated into a metal housing, the ceramic antenna is replaced by an alter- native solution •... - Page 36 Hardware Reference Optimal placement The best position to place the BlueMod+C11/G2 on the target PCB is in the upper right corner. This position is optimal concerning antenna interference; radiation pat- tern and PCB space that has to be keep free for the restricted area.
-
Page 37: Safety Guidelines
BlueMod+C11/G2 Hardware Reference acceptable, but not optimal placement When placing the BlueMod+C11/G2 on other positions than the right side the com- plete restricted area should be kept free of planes, traces and parts. 6.7 Safety Guidelines According to SAR regulation EN 62479: 2010 the BlueMod+C11/G2 is not intended to be used in close proximity to the human body. -
Page 38: Approvals/Certifications
BlueMod+C11/G2 Hardware Reference 7 Approvals/Certifications 7.1 EC Declaration of conformity Release r09 www.stollmann.de Page 38 of 54... -
Page 39: Fcc Grant
BlueMod+C11/G2 Hardware Reference 7.2 FCC Grant Release r09 www.stollmann.de Page 39 of 54... -
Page 40: Ic Grant
BlueMod+C11/G2 Hardware Reference 7.3 IC Grant Release r09 www.stollmann.de Page 40 of 54... -
Page 41: Fcc Compliance And Fcc Statement
Consult the dealer or an experienced radio/TV technician for help. The radiated output power of BlueMod+C11/G2 is far below the FCC radio frequen- cy exposure limits. Nevertheless, the BlueMod+C11/G2 shall be used in such a manner, that the potential for human contact during normal operation is minimized. -
Page 42: Rf-Exposure Statement
IC ID: 4957A-C11G2 Since the BlueMod+C11/G2 is a module to be integrated into a for the FCC authority unknown end product, the FCC approval under this ID is a “Limited Modular Ap- proval”, also called LMO. This implies that all OEM’s incorporating the Blue- Mod+C11/G2 in their end product and wanting to ship to the USA or Canada have to measure spurious emissions according to FCC Part 15.247 in a FCC accredited... -
Page 43: Japanese Certification
BlueMod+C11/G2 Hardware Reference 7.5 Japanese Certification Release r09 www.stollmann.de Page 43 of 54... - Page 44 BlueMod+C11/G2 Hardware Reference Release r09 www.stollmann.de Page 44 of 54...
-
Page 45: Taiwanese Ncc Certification
BlueMod+C11/G2 Hardware Reference 7.6 Taiwanese NCC Certification 1. 本模組於取得認證後將依規定於模組本體標示審驗合格標籤。 2. 系統廠商應於平台上標示「本產品內含射頻模組：CCAI14LP1850T1 字樣。 7.6.1 NCC Certificate 7.6.2 NCC Warning in Chinese 低功率電波輻射性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變 更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時， 應立即停用，並改善至無干擾時方得繼續使用。前項 合法通信，指依電信法規定作業之無線 電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾 。 Release r09 www.stollmann.de Page 45 of 54... -
Page 46: Bluetooth Qualification
BlueMod+C11/G2 Hardware Reference 7.7 Bluetooth Qualification The BlueMod+C11/G2 is a qualified design according to the Bluetooth Qualification Program Reference Document (PRD) V2.3. The Declaration ID is: B012419 The Qualified Design ID is: 7926 For further information about marking requirements of your product attention should be paid the Bluetooth Brand Usage Guide at https://www.bluetooth.org/en-us/bluetooth-brand/bluetooth-brand... -
Page 47: Rohs Declaration
BlueMod+C11/G2 Hardware Reference 7.8 RoHS Declaration Release r09 www.stollmann.de Page 47 of 54... -
Page 48: Related Documents
• CSR product data book BlueCore 4-ROM BC41B143A April 2006 • Radiall UMP MMP Introduction • Radiall data sheet UMP R107.103.020Stollmann BlueRS+ - SPP • Stollmann AT Command Reference • Bluetooth SIG RF_TS_EDR.pdf test specification Release r09 www.stollmann.de Page 48 of 54... -
Page 49: Packing
BlueMod+C11/G2 Hardware Reference 9 Packing The BlueMod+C11/G2 modules are packed using carrier tape. Release r09 www.stollmann.de Page 49 of 54... -
Page 50: Package Label
Product number of firmware trace [Manufacturer M (optional)]Date (YearCalendarWeek) YYWW quantity Number of contained modules If the label on the package box is different to the label described please contact Stollmann for detailed information. Release r09 www.stollmann.de Page 50 of 54... -
Page 51: Ordering Information
BlueMod+C11/G2 Hardware Reference 10 Ordering Information The BlueMod+C11/G2 is available in the following variants: Name Antenna Article No. MOQ / units BlueMod+C11/G2/AI/SPP Internal 52672 BlueMod+C11/G2/AP/SPP External 52742 BlueMod+C11/G2/AI/BCN Internal 53163 SPP Evaluation Kit Internal 52743 BlueEva+C11/G2/SPP Other variants on request, please contact Stollmann sales department. -
Page 52: History
BlueMod+C11/G2 Hardware Reference 11 History Version Release Date Change description 20.10.2006 Initial Document - preliminary 27.10.2006 Updated Alternative GPIO Functionality, Name correction 20.02.2007 Updated to evaluated data 15.03.2007 JW General revision, First final version 29.08.2007 BG New template 17.09.2008 5.7 Wake-up Time: chapter added 5.2 Environmental Requirements: chapter moved... - Page 53 Restricted FCC/IC compliance to /AI variants in note 1.2 Applications Removed variant BlueMux 3.4.1 Baudrate added 10 Ordering Information: MOQs and variant BlueMod+C11/G2/AI/BCN added, 5.1 Absolute Maximum Ratings Voltage on Input Pins increased to max. +5,5V 3.7 Bluetooth Radio Interface Pins A-(26/28] shall be soldered 4.2.1 General Pin Description...
- Page 54 BlueMod+C11/G2 Hardware Reference Stollmann Entwicklungs- und Vertriebs-GmbH Phone: +49 (0)40 890 88-0 Mendelssohnstraße 15 D Fax: +49 (0)40 890 88-444 22761 Hamburg E-mail: info@stollmann.de Germany www.stollmann.de Release r09 www.stollmann.de Page 54 of 54...
