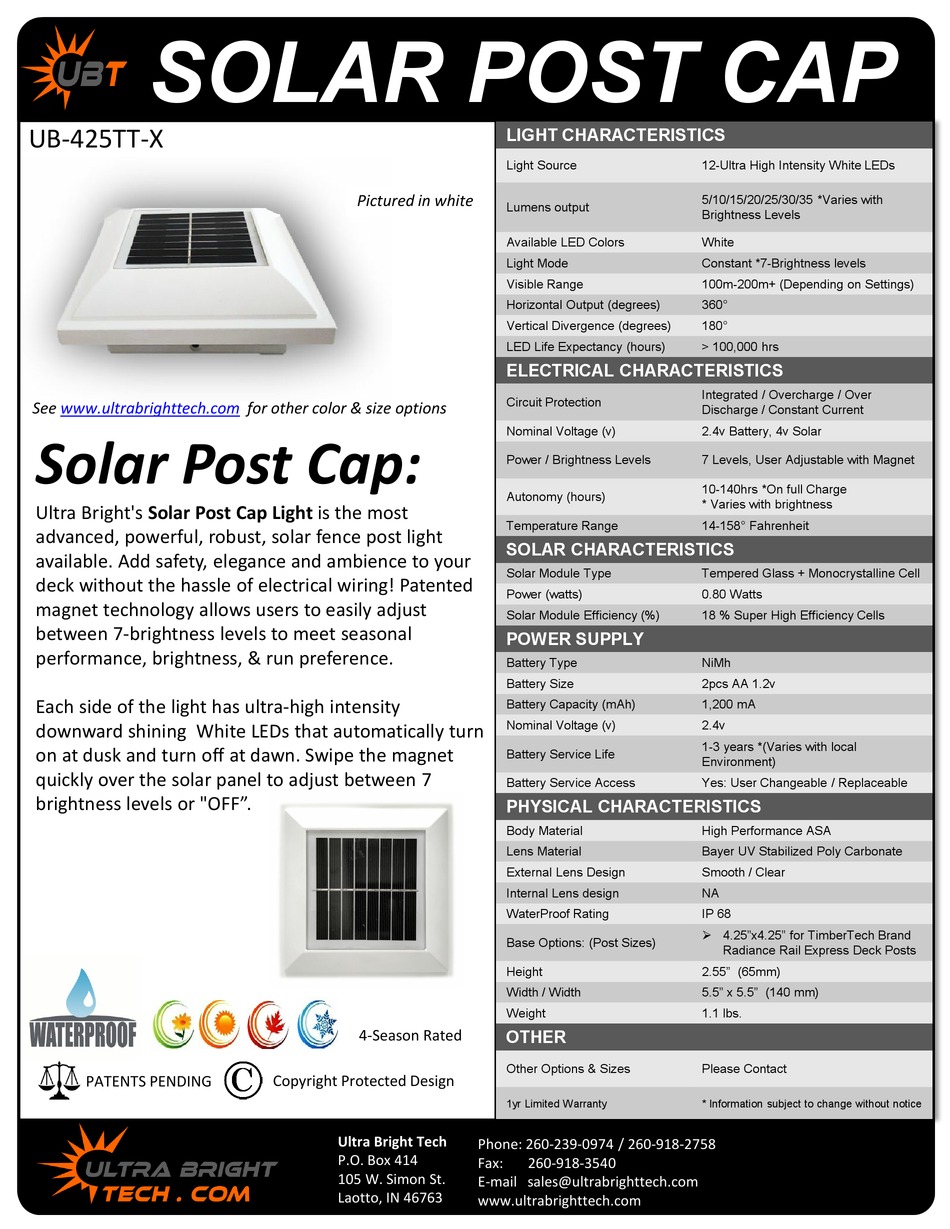

ULTRA BRIGHT UB-425TT Series Manual

SOLAR POST CAP
UB-425TT-X
See www.ultrabrighttech.com
Solar Post Cap:
Ultra Bright's Solar Post Cap Light is the most
advanced, powerful, robust, solar fence post light
available. Add safety, elegance and ambience to your
deck without the hassle of electrical wiring! Patented
magnet technology allows users to easily adjust
between 7-brightness levels to meet seasonal
performance, brightness, & run preference.
Each side of the light has ultra-high intensity
downward shining White LEDs that automatically turn
on at dusk and turn off at dawn. Swipe the magnet
quickly over the solar panel to adjust between 7
brightness levels or "OFF".
PATENTS PENDING
Pictured in white
for other color & size options
4-Season Rated
Copyright Protected Design
Ultra Bright Tech
P.O. Box 414
105 W. Simon St.
Laotto, IN 46763

LIGHT CHARACTERISTICS

Light Source
Lumens output
Available LED Colors
Light Mode
Visible Range
Horizontal Output (degrees)
Vertical Divergence (degrees)
LED Life Expectancy (hours)

ELECTRICAL CHARACTERISTICS

Circuit Protection
Nominal Voltage (v)
Power / Brightness Levels
Autonomy (hours)
Temperature Range

SOLAR CHARACTERISTICS

Solar Module Type
Power (watts)
Solar Module Efficiency (%)

POWER SUPPLY

Battery Type
Battery Size
Battery Capacity (mAh)
Nominal Voltage (v)
Battery Service Life
Battery Service Access

PHYSICAL CHARACTERISTICS

Body Material
Lens Material
External Lens Design
Internal Lens design
WaterProof Rating
Base Options: (Post Sizes)
Height
Width / Width
Weight

OTHER

Other Options & Sizes
1yr Limited Warranty
Phone: 260-239-0974 / 260-918-2758
Fax: 260-918-3540
E-mail sales@ultrabrighttech.com
www.ultrabrighttech.com
12-Ultra High Intensity White LEDs
5/10/15/20/25/30/35 *Varies with
Brightness Levels
White
Constant *7-Brightness levels
100m-200m+ (Depending on Settings)
360°
180°
> 100,000 hrs
Integrated / Overcharge / Over
Discharge / Constant Current
2.4v Battery, 4v Solar
7 Levels, User Adjustable with Magnet
10-140hrs *On full Charge
* Varies with brightness
14-158° Fahrenheit
Tempered Glass + Monocrystalline Cell
0.80 Watts
18 % Super High Efficiency Cells
NiMh
2pcs AA 1.2v
1,200 mA
2.4v
1-3 years *(Varies with local
Environment)
Yes: User Changeable / Replaceable
High Performance ASA
Bayer UV Stabilized Poly Carbonate
Smooth / Clear
NA
IP 68
 4.25"x4.25" for TimberTech Brand
Radiance Rail Express Deck Posts
2.55" (65mm)
5.5" x 5.5" (140 mm)
1.1 lbs.
Please Contact
* Information subject to change without notice
