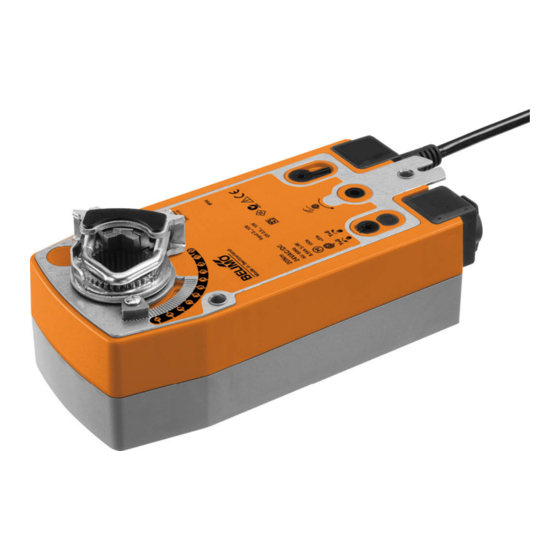

Belimo NF24A-MOD Technical Data Sheet

Communicative rotary actuator fail-safe for
adjusting dampers in technical building
installations
• Air damper size up to approx. 2 m²
• Torque motor 90 in-lb [10 Nm]
• Nominal voltage AC/DC 24 V
• Control modulating, communicative, Hybrid
• Conversion of sensor signals
• Communication via BACnet MS/TP, Modbus
RTU, Belimo-MP-Bus or conventional control
Technical data
Data bus communication
Functional data
www.belimo.com
Technical data sheet
Electrical data Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption in rest position
Power consumption for wire sizing
Connection supply / control
Communicative control
Number of nodes
Torque motor
Torque Fail-Safe
Operating range Y
Operating range Y variable
Position feedback U
Position feedback U note
Position feedback U variable
Position accuracy
Direction of motion motor
Direction of motion fail-safe
Manual override
Angle of rotation
Angle of rotation note
Running Time (Motor)
Running time motor variable
Running time fail-safe
Adaptation Setting Range
Adaptation Setting Range Variable
Override control, controllable via bus
communication
Override control variable
NF24A-MOD • en-us • 2022-03-15 • Subject to change
NF24A-MOD
AC/DC 24 V
50/60 Hz
AC 19.2...28.8 V / DC 21.6...28.8 V
7 W
3.5 W
9.5 VA
cable 3 ft. [1 m], 6 x 0.75 mm²
BACnet MS/TP
Modbus RTU (default setting)
MP-Bus
BACnet / Modbus see interface description
MP-Bus max. 8
90 in-lb [10 Nm]
10 Nm
2...10 V
0.5...10 V
2...10 V
Max. 1 mA
Start point 0.5...8 V
End point 2...10 V
±5%
selectable with switch L/R
selectable by mounting L/R
by means of hand crank and locking switch
Max. 95°
adjustable starting at 33% in 2.5% steps (with
mechanical end stop)
150 s / 90°
40...150 s
<20 s @ -4...122°F [-20...50°C], <60 s @ -22°F
[-30°C]
manual
No action
Adaptation when switched on
Adaptation after using the hand crank
MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position) = 50%
MAX = (MIN + 32%)...100%
MIN = 0%...(MAX – 32%)
ZS = MIN...MAX
1 / 7
