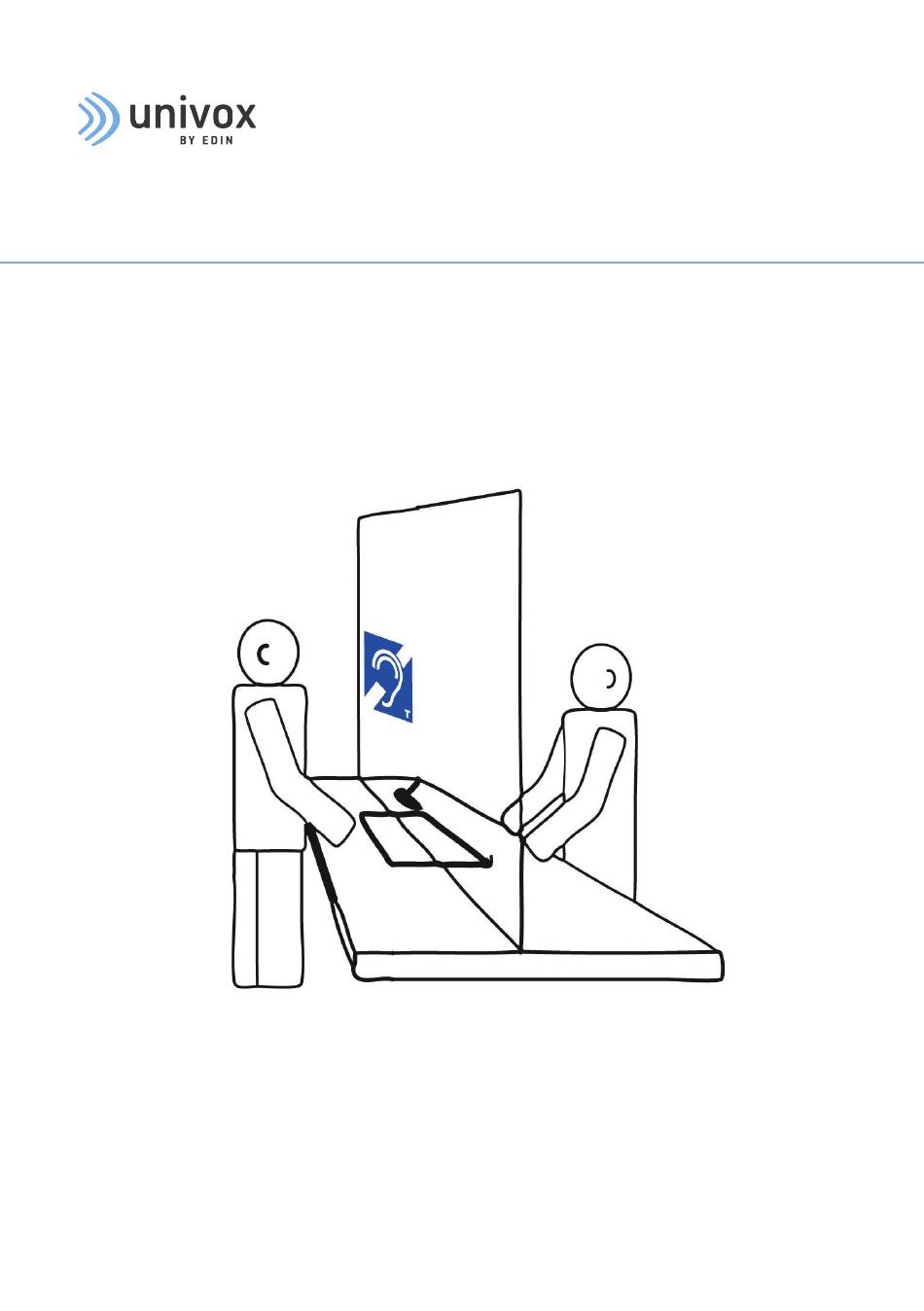

- Page 1 CTC-systems Cross-The-Counter Loop System Installation Guide...
-
Page 3: Table Of Contents
Contents Introduction ....................... 4 Univox® CLS-1 loop driver .................... 5 CTC-120 with glass/wall microphone – installation guide ........6 CTC-121 with goose neck microphone – installation guide ......... 8 Troubleshooting ......................10 Measuring devices ......................10 Univox® Listener Univox® FSM, field strength meter Safety and warranty.....................11 Maintenance and care ....................11... -
Page 4: Introduction
Introduction CTC Cross-The-Counter systems are complete systems for equipping reception desks and counters with an induction loop. The system consists of a loop driver, a loop pad, a microphone and a wall holder. Installed in a reception desk or counter, the system gives hearing hearing aids users the possibility to communicate with the staff behind the desk with greatly enhanced speech perception. -
Page 5: Univox® Cls-1 Loop Driver
Univox® Compact Loop System CLS-1 Input signal Bass Treble Volume Loop current Main power indicator control control control indicator indicator Room loop input Power input Headphones Loop pad Line input Mic/Line Microphone Microphone input input input sensitivity input control T-symbol label Loop pad AVLM5 microphone Wall holder... -
Page 6: Ctc-120 With Glass/Wall Microphone - Installation Guide
Installation guide for CTC-120 with microphone for glass or wall Installation and commissioning 1. Choose a suitable place for the loop driver. Consider that the loop pad, the microphone and the loop driver’s power supply will be connected to the driver. If needed, attach the wall holder facing upwards on the selected spot. - Page 7 Microphone Place the loop pad in the angle between the front and the upper part under the reception desk. Placing the loop pad in the highest position possible ensures a stronger magnetic field and thus gives better speech perception for hearing aid users Figure 2 4.
-
Page 8: Ctc-121 With Goose Neck Microphone - Installation Guide
Installation guide CTC-121 with gooseneck microphone The system is always activated and no special preparations have to be undertaken, neither by the hearing impaired nor by the staff. The only requirement for hard of hearing people is to put their hearing aids in T-position and for the staff to speak normally into the microphone. - Page 9 Microphone The loop pad can be placed either under the top of the desk or under the top of the reception table. Placing the loop pad in the highest position possible ensures a stronger magnetic field and thus gives better speech perception for hearing aid users Figure 4...
-
Page 10: Troubleshooting
Troubleshooting Verify the control LEDs following the instructions in this installation guide. Use Univox® Listener to check the sound quality and basic level of the loop. If the loop driver does not perform satisfactory, check the following: • Does the mains power indicator light? If not, maek sure that the transformer is correctly connected to the power outlet and to the driver. -
Page 11: Safety And Warranty
Bo Edin AB shall not be held responsible or liable for interference to radio or TV equipment, and/or to any direct, incidental or consequential damages or losses to any person or entity, if the equipment has been installed by unqualified personnel and/or if installation instructions stated in the product Installation Guide have not been strictly followed. - Page 12 Univox by Edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
