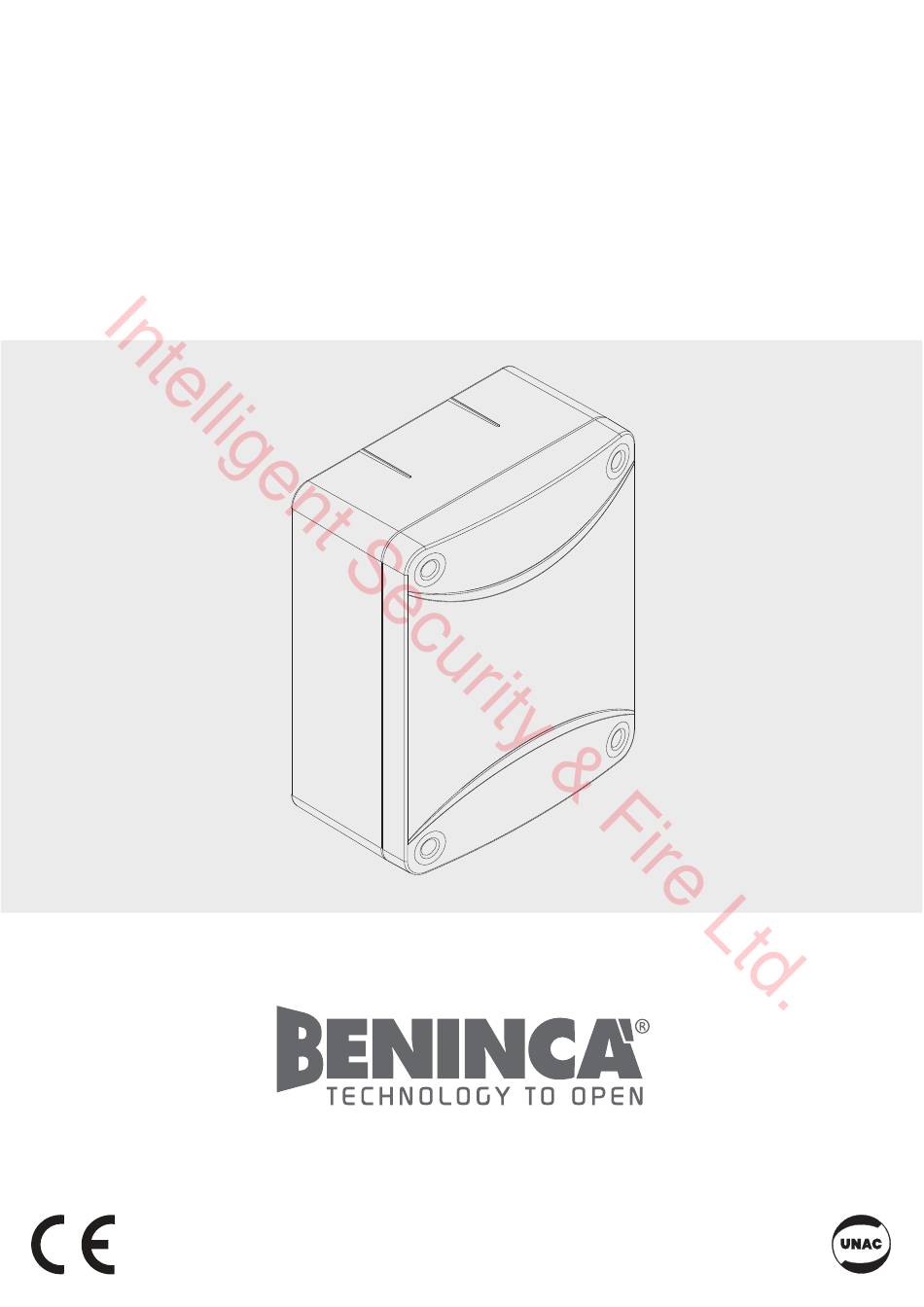

- Page 1 L8542643 06/2010 rev 0 ESA BASIC UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 RADIO SH IELD OUT 6 OUT 5 OUT 4 OUT 3 OUT 2 OUT 1 85÷230Vac 50/60Hz...
- Page 3 ESEMPIO DI COLLEGAMENTO FUSE ESA BASIC 85÷230Vac 50/60Hz...
- Page 4 EC declaration of confirmity Manufacturer: Automatismi Benincà SpA. Address: Via Capitello, 45 - 36066 Sandrigo (VI) - Italia Herewith declares that: energy-saving device ESA BASIC. complies with the following relevant provisions: EMC guidelines: 89/336/CCE, 93/68/CEE Low voltage guidelines: 73/23/CEE, 93/68/CEE Benincà...
- Page 5 Esa Basic can be also used in systems which are not intended for the automation of doors or gates (e.g. irrigation sprinklers, etc.). In any case, after installing ESA BASIC, the installer shall be responsible for the checking of the correct operation of the system.
- Page 6 The “Bypass” mode is entered by pressing keys + and – simultaneously. ESA BASIC keeps the control unit connected to it always on. In this way, parameters and logics of the control unit can be preset, thus avoiding that the control unit enters the SLEEP mode.
- Page 7 ON-OFF MENU FUNCTION MEMO (Default) Presetting of the channel status (normally open/ normally closed). IST: Channel preset as “Gate input status” See section “Gate input status”. In 1 NO: Channel preset for a NO (normally open) input. NC: Channel preset for a NC (normally closed) input. (NO) In 2 Presetting of channel 2 status Same options as channel 1.
- Page 8 In the input preset in this way, a NO contact can be connected, such as the SCA* output contact of the control unit or the NO contact of a limit switch. In this mode, ESA BASIC causes the control unit to enter the SLEEP mode only if the contact returns to the NO (normally open) status.
