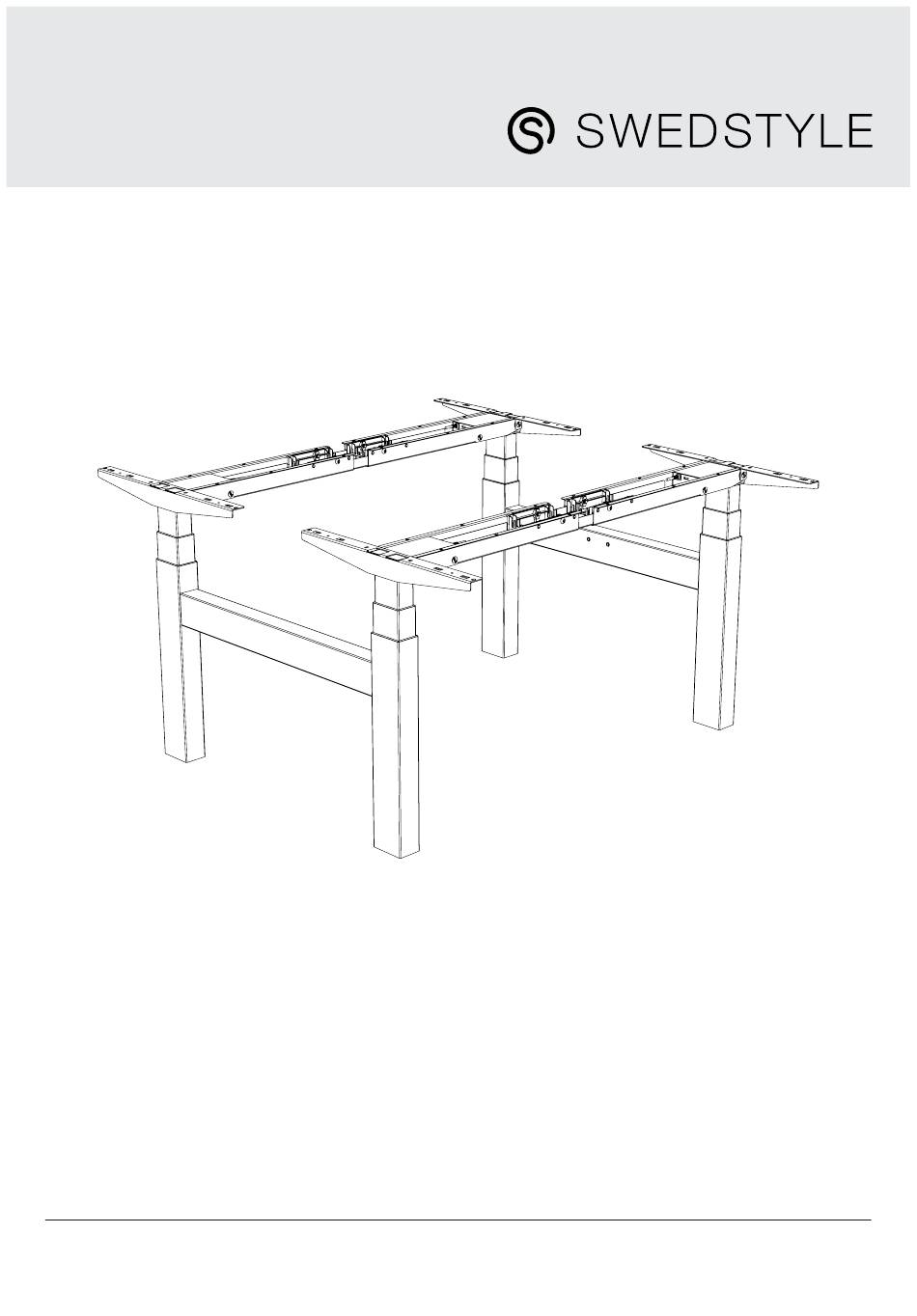

- Page 1 M200-155A 2022-11-02 CLASSIC TWIN 2.0 FLEX-2022 Assembly Instruction Monteringsanvisning Montageanleitung M200-155A 2022©SWEDSTYLE AB...
- Page 2 E x4 A x2 F x2 B x2 D x4 G x2 C x4 H x4 I x2 J x2 K x8 L x16 M x4 N x36 O x4 P x4 Q x4 M8x20 mm M8x20 mm 4x16 mm 4.5x20 mm M8x16 mm M8x44 mm...
- Page 3 ( I)
- Page 4 (x2) X = Y Min. 1150 mm. Max. 1740 mm 14 x2 Max Torque 5 Nm! Max Moment 5 Nm!
- Page 5 NOTE All cables must be connected to the control box in this specific sequence before you plug in the power. OBS Alla kablar måste vara inkopplade i styrboxen enligt denna specifika ordning innan stativet strömsätts. ACHTUNG Alle Kabel müssen in dieser Reihenfolge vor dem Einschalten des Stativs an die Steuerbox angeschlossen werden.
- Page 6 Restablecimiento | Procédure de réinitialisation | Procedura di ripristino Lower the frame to its lowest Kör bordet till stativets bottenläge Fahren Sie die Tischplatte mit der position by pressing the down arrow genom att trycka på knappen ”pil Taste “Pfeil nach unten“ zum on the hand control.
