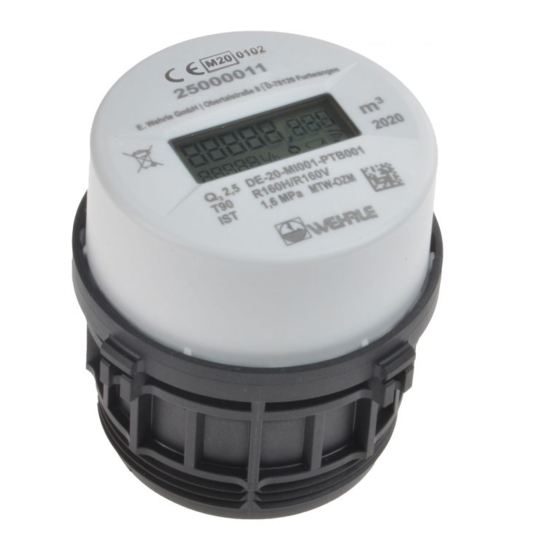

WEHRLE WECOUNT-S Operating Instructions Manual

WEHRLE WECOUNT-S Operating Instructions Manual

Multi-jet dry meter measuring capsules

Advertisement

Quick Links

EN
WECOUNT-S
MTK-OZM
MTW-OZM
Operating Instructions
Multi-Jet Dry Meter Measuring Capsules

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WECOUNT-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WEHRLE WECOUNT-S

  • Page 1 WECOUNT-S MTK-OZM MTW-OZM Operating Instructions Multi-Jet Dry Meter Measuring Capsules...
  • Page 2: Table Of Contents

    Content Overview Measuring Capsules ����������������������������������������������������4 Device marking WECOUNT-S MTK-OZM �������������������������������5 Device dimensions �������������������������������������������������������������������������7 Required tools ���������������������������������������������������������������������������������7 Scope of delivery ����������������������������������������������������������������������������8 Transport ������������������������������������������������������������������������������������������8 Storage and environmental conditions ��������������������������������������8 Cleaning ��������������������������������������������������������������������������������������������8 Personnel qualification ������������������������������������������������������������������9 Intended use ������������������������������������������������������������������������������������9 Safety notes and hazard warnings ������������������������������������������� 10 Installing the water meter ����������������������������������������������������������...
  • Page 3 WECOUNT-S additional functions ����������������������������������������� 24 NFC (Near Field Communication) Device interface �������������������������������������������������������������������������������� 25 Data memory ������������������������������������������������������������������������������������ 27 Volume readings/15 month end values ��������������������������������������� 27 LCD settings ��������������������������������������������������������������������������������������� 27 Event logfile ���������������������������������������������������������������������������������������� 28 High resolution mode ���������������������������������������������������������������������� 29 Radio settings configuration ����������������������������������������������������������� 30 WECOUNT-S technical data ����������������������������������������������������...
  • Page 4: Overview Measuring Capsules

    4 | Water meter Overview Measuring Capsules WECOUNT-S:  electronic water meter (W   =   C omposite/W =  B rass) M  MODULARIS: mechanical water meter (M   =   C omposite/M   =   B rass) MOC/MOE M   M M ...
  • Page 5: Device Marking Wecount-S Mtk-Ozm

    Water meter | 5 Device marking WECOUNT-S MTK-OZM 0102 8 WEH00 6600 0002 E. Wehrle GmbH Obertalstraße 8 D-78120 Furtwangen 1,6 MPa 2022 Q 2,5 DE-20-MI001-PTB001 R160H/R160V LGS LoRa 2418C0000002 MTK-OZM CE marking Positi on of the local NFC interface Serial number Max�...
  • Page 6 6 | Water meter DevEUI / MAC address (opti onal for LoRa radio version) Placeholder for customized logo Meter type marking Meter type interface Radio standard (wMbus, LoRa) Max� permissible water temperature Meter size Q3 Placeholder for 2D data matrix code (e�g� serial number) Postal address...
  • Page 7: Device Dimensions

    Water meter | 7 Device dimensions H = 35 - 65 mm Required tools...
  • Page 8: Scope Of Delivery

    8 | Water meter Scope of delivery Transport Storage and environmental conditions +0,1°C ... +65°C ≤ 60% RH H₂O Cleaning H₂O...
  • Page 9: Personnel Qualification

    Other cases of application that deviate from these specifications must be approved of in writing by E� Wehrle GmbH� Water meters are exclusively intended for the above-mentio- ned function� The conversion and any use of the water meters different or beyond this is considered improper use and therefore not permitted�...
  • Page 10: Safety Notes And Hazard Warnings

    10 | For your safety Safety notes and hazard warnings Improper assembly, pressure tests, modifications or incorrect operation can cause personal injury and damage to property� If the seal is damaged or removed, the water meter is no longer licenced for legal metering� Check water meter for transport damage before installation�...
  • Page 11: Installing The Water Meter

    Installation guide | 11 Installing the water meter ( ... )
  • Page 12 12 | Installation guide...
  • Page 13 Installation guide | 13...
  • Page 14 14 | Installation guide IST, MUK, MET, MOC/MOE KTW/TVO/ KTW/TVO/ EPDM conform! EPDM conform!
  • Page 15 Installati on guide | 15 IST, TE1, MET, MOC/MOE max. 40 Nm A34, DM1, MUK, HT2, MB2, MB3, WE1, WGU max. 80 Nm...
  • Page 16 16 | Installation guide ( ... )
  • Page 17: Wecount-S (Electronic Register)

    WECOUNT-S | 17 WECOUNT-S (electronic register) The following device displays are examples! Display explanati on Shows acti ve radio signal Batt ery warning symbol (replace device) Flow rate symbol (fl ashes in case of fl ow) Current fl ow rate value (opti onal)
  • Page 18: Delivery Condition

    18 | WECOUNT-S Delivery conditi on The SLEEP mode is the regular delivery condition of the meter� In this condition the meter already counts the consumption, with the radio transmission not yet active to save energy during transport and until installation�...
  • Page 19 WECOUNT-S | 19 The minimum volume of 5 l (standard) must be removed (e�g� turn on the tap completely for a short time)� The minimum volume can be adjusted at the factory or via NFC interface� When switching to normal operation from SLEEP mode, the commissioning date is set, the volume is reset and the error log is deleted�...
  • Page 20: Radio Settings

    20 | WECOUNT-S Radio settings As soon as the radio is activated, it sends an encrypted radio telegram according to OMS (Open Metering System)� During active radio times, the radio symbol lights up permanently� Factory setting = Long telegram „Walk-by“ in C1 mode: Current...
  • Page 21: Device Display Loop

    WECOUNT-S | 21 Device display loop Device Display Example display duration Consumption 236,214 m 10 s Actual flow rate 15 l/h Consumption at due date 175 m 3 s optional Check number C85 Due date 01�01 Min�1 s (can be...
  • Page 22: Event And Error Messages

    22 | WECOUNT-S Event and error messages 10 seconds 2 seconds If the meter meets with an event or error, this is indicated by a message on the display� The event message display is integrated into the display loop for 2 second�...
  • Page 23 WECOUNT-S | 23 Overview of event and error messages Type Description Measures Err01 System error Memory error, Replace device detection defective Err02 BatLow Battery voltage too low Replace device InF03 Manipulation Fraud attempt Counter no (magnetic field) longer valid for billing...
  • Page 24: Wecount-S Additional Functions

    24 | WECOUNT-S WECOUNT-S additional functions The functions described below are only available in conjunction with an NFC reader and the WEPROG configuration app� Requirements: • Android mobile phone or Android tablet with NFC interface • Windows notebook, tablet or PC with USB interface •...
  • Page 25: Nfc (Near Field Communication)

    WECOUNT-S | 25 NFC (Near Field Communicati on) Device interface Note: Note: To ensure correct communication, place your NFC To ensure correct communication, place your NFC reader directly on the NFC sign of the water meter. reader directly on the NFC sign of the water meter.
  • Page 26 26 | WECOUNT-S Access rights There are 3 access rights: • Consumer (no password, read only) • Installer (read and change settings, password required) • Verifier (read and change metrological parameters)� The default installer password is “0000”� It can be changed or...
  • Page 27: Data Memory

    WECOUNT-S | 27 Data memory Volume readings/15 month end values The current volume is stored in the unit every 15 minutes� The volume on the due date is also stored and displayed in the unit� At the beginning of a new month, the current volume value of the previous month is stored�...
  • Page 28: Event Logfile

    28 | WECOUNT-S Event logfile For various analysis, it is very helpful to be able to trace the chronological course of events� To make this possible, a rolling event log with the last 10 most recent entries is integrated in the counter: If many temporary events occur in succession, older important messages may drop out�...
  • Page 29: High Resolution Mode

    WECOUNT-S | 29 High resolution mode For the purpose of metrological verification of the meter by an approved laboratory, the consumption display on the unit can be changed to a high-resolution display for a maximum of 24 hours� Instead of the usual m3 , millilitres (ml) are displayed�...
  • Page 30: Radio Settings Configuration

    30 | WECOUNT-S Radio settings configuration For more information on installing the software for radio settings and programming, see: www�wehrle�de/metering/ fernauslesung/software-apps/� Adjustable radio telegram types wMbus models* Short telegram Current value, due date value (OMS) (factory setting) Short telegram Current value, due date value...
  • Page 31 WECOUNT-S | 31 Further radio parameters Item Setting Factory Comment option setting Days of trans- Mon, Tue, Mon - Fri Each weekday can be mission Wed, Thu, Fri, selected individually� Sat, This also allows for the radio to be suppressed during the weekend�...
  • Page 32: Wecount-S Technical Data

    32 | WECOUNT-S WECOUNT-S technical data (Electronic register) IP protection class IP68, (4 weeks, max� 1 meter under water) EN13757-4, wMBus according to OMS (Open Metering System), T1, C1 mode, Radio standard AES-128 Encryption (4 Generation, Mode 5+ Mode 7, Security Profile A + B) Radio frequency 868�95 MHZ...
  • Page 33: Maintenance

    Never dispose of the devices in household waste� If required, test certificates for the batteries in use can be obtained from E� Wehrle GmbH� Protect lithium batteries from moisture, do not heat to 100°C or higher and do not throw them into fire�...
  • Page 34 34 | Water meter EG-Konformitätserklärung EC declaration of conformity E. Wehrle GmbH, Obertalstraße 8, D-78120 Furtwangen Erklärt, dass die Mehrstrahl-Trockenläufer Messkapseln WECOUNT | | Declares that the Multi-Jet Dry Meter Measuring Capsules WECOUNT: MTK-OZM, MTW-OZM (IST, MOE, MOC, MET, MUK, A34, WE1, MB2, MB3, DM1, HT2, WGU, TE1) Mit der EG-Baumusterprüfbescheinigung, ausgestellt durch die notifizierte Stelle 0102...
  • Page 35 E. Wehrle GmbH Obertalstraße 8 78120 Furtwangen Germany info@wehrle.de www.wehrle.de...
