Arne
Column mount LED Light
Installation Guide
Included components
1/4‐20 x 5/8" button
4.5m
6m
8m
10m
Pole with base plate
Tools Required
• Safety glasses
• Wrenches, 1‐1/4" for 4.5m, 6m or 8m (5in/6in) pole  or 1‐5/8" for 10m (5in/8in) pole
• Wiring tools and connectors
• Proper personnel, crane or lift for hoisting unit onto anchors
• Level
• Dimming control, if required
• Hex key 5/32" for nut covers
• Twist lock photo eye, if required
Landscape Forms is not responsible for site preparation and footings.  Refer to the
installation guide for the Arne light anchor kit for installing the anchor bolts.
CAUTION! This unit is heavy. To avoid injury or damage to the finish, we recommend using
a crane or lift for hoisting the unit onto the anchors.
WARNING! Pole mounted luminaires must be attached either before or immediately after
pole installation. Failure to do so may cause vibration damage to the pole and will void the
pole warranty.
ASSEMBLE WITH CARE! To protect this finish during assembly, place unwrapped powdercoated parts
on packaging foam or other non‐marring surface.  Do not place or slide powdercoated parts on
concrete or other hard or textured surface – this will damage the finish causing rust to occur.  Use
touch‐up paint on any gouges in the finish caused by assembly tools.
Twist lock receptacle
Column
mount
Shorting cap for
Twist lock
4X ‐ Nut cover with
head cap screw
Standard
For twist lock
Pole  cap

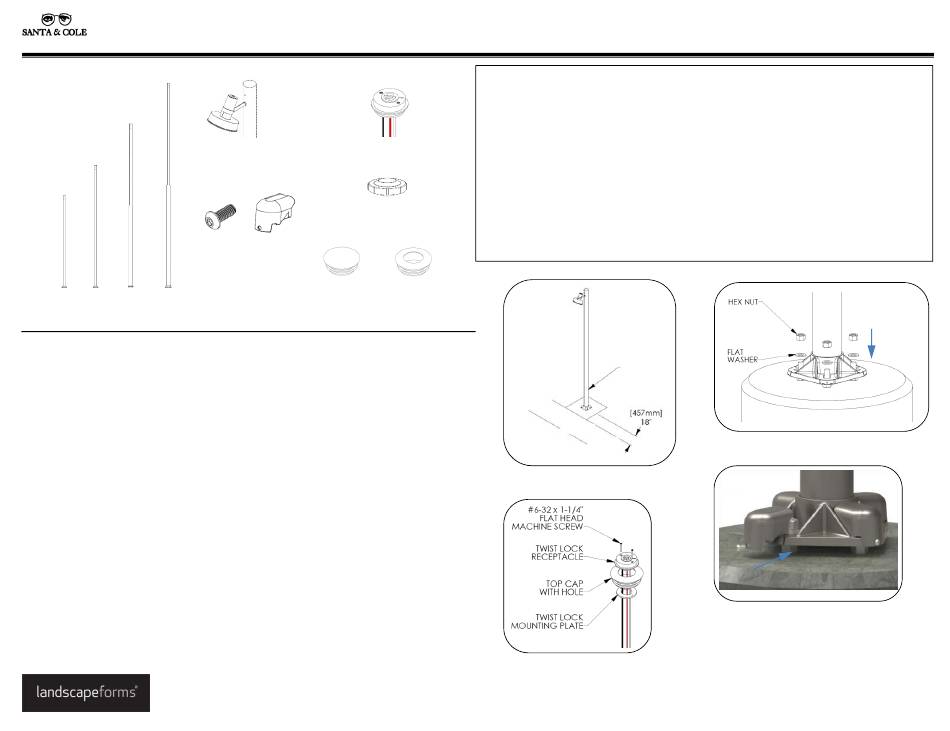

INSTALLATION PROCEDURE FOR LIGHT POLE:
1.
Lift the light pole into position over the installed anchors (refer to Arne anchor kit
installation guide) as shown in Fig. 1.  Ensure that the base plate is resting on all four
washers.
2.
Install washer and hex nut as shown in Fig. 2.
3.
Plumb and level the pole and tighten all anchors.
4.
Install luminaire. Refer to page 2 for connection steps.
5.
Connect wiring to the weather proof connector in the luminaire. Refer to wiring
diagram on page 2.
6.
Install the top cap on the pole (shipped with the pole). If the unit has a twist lock
receptacle, assemble the receptacle and the top cap as shown in Fig. 3 and connect
wiring before installing the top cap.
7.
Install the nut covers as shown in Fig. 4.
HAND HOLE
ORIENTED ON
SIDE OPPOSITE
OF LUMINAIRE
SIDEWALK
SETBACK
Fig. 1 – Pole orientation
Fig. 3 – Install twist lock
receptacle to top cap
Date: March 3, 2015
www.landscapeforms.com
Ph: 800.521.2546
Fig. 2 – Install pole
Fig. 4 – Install nut covers
Page 1 of 2
