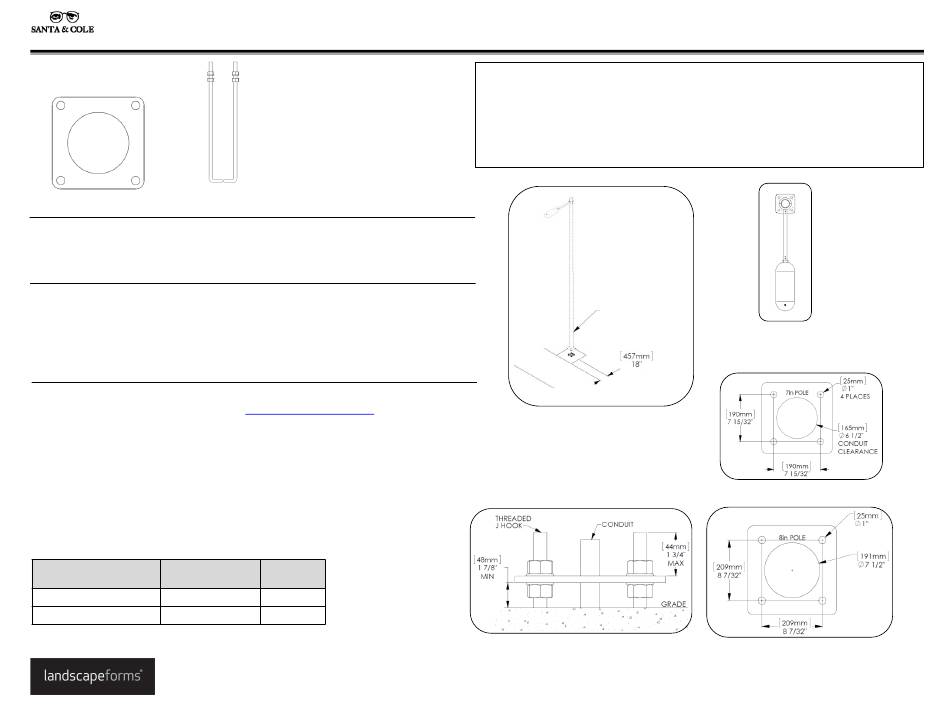

Santa & Cole Candela Installation Manual

Candela
Installation Guide
Included components
8m and 10m
1x – wooden drill template
pole heights
Included: hardware is galvanized
8m and 10m pole: (4) anchor bolts, 1"-8 UNC x 36" x 4" hook,
(8) heavy hex nuts, 1"-8 UNC, (8) flat washers, 1.06" ID x 2.00" OD x 0.15" thick
Tools Required
• Safety glasses
• Wrenches, 1-5/8" for 8m (5in/7in) pole
• Level
LIGHTING LAYOUT RECOMMENDATIONS:
Refer to the product data sheet available at
recommendations for light pole spacing.
Landscape Forms is not responsible for site preparation and footings. The following
chart gives necessary information for calculating proper footing size, depending on
the specified light pole.
WARNING! Pole mounted luminaires must be attached either before or immediately
after pole installation. Failure to do so may cause vibration damage to the pole and
will void the pole warranty.
Base Overturning
Pole Size Moment (ft-lbf)
7"x.188"/5"x.250"x8m 11,682
8"x.250"/5"x.250"x8m 20,161
Area Light Anchor Kit and Pole
www.landscapeforms.com for
Base Shear
(lbf)
567
761
INSTALLATION PROCEDURE FOR ANCHOR BOLTS:
1. Prepare footing as required by local codes.
2. Install anchor hooks, hex nuts, washers and wooden template as shown in Fig 3.
Level template in all directions. Note: template thickness is less than base plate
thickness. Dimensions given account for the difference.
3. After footing has properly cured, remove wooden template. Do not remove lower
hex nuts or washers.
HANDHOLE ORIENTED
ON SIDE OPPOSITE
OF LUMINAIRE
SIDEWALK
SETBACK
Fig. 1 – Sidewalk setback
Fig.3- Anchor install detail
Date: December 17, 2019
www.landscapeforms.com Ph: 800.521.2546
Fig. 2 – Base plate orientation
to luminaire
7" diameter base pole
4 PLACES
CONDUIT
OPENING
8" diameter base pole
Page 1 of 2
