Philio PAD19 User Manual

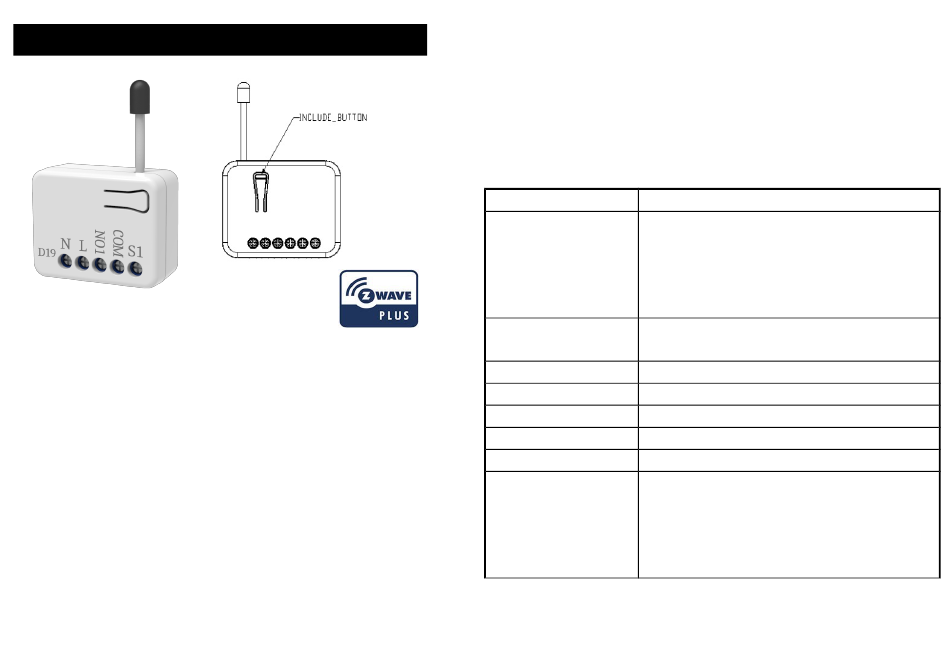

PAD19 – In Wall Micro Dimmer
Description and features
It can only needs to connect two wires, single wire (L) and load
(NO1),or three wires, two wire (L 、 N) and load (NO1)
This device is a security enabled Z-Wave Plus™ product that uses en-
crypted Z-Wave Plus™ messages to communicate to other security
enabled Z-Wave Plus™ products. Z-Wave™ enabled devices display-
ing the Z-Wave™ logo can also be used with this device regardless of
the manufacturer, and this device can also be used in other manufac-
turer's Z-Wave™ enabled networks.
All mains operated nodes within the network will act as repeaters re-
gardless of vendor to increase reliability of the network. The product
supports an Over the Air (OTA) feature for the products firmware up-
grade
Main features of Philio's In Wall Micro dimmer,
•
Compatible with any
•
Supports Z-Wave™
•
To be installed with LED dimmer or incandescent lamp,
•
A single live without neutral lead,
•
To be installed in-wall switch boxes.
•
Specification
Operating Rated 100-240Vac 50Hz-60Hz 0.7A
Output load Max. 0.7A (100-240VAC)
160W (Dimmable LED bulbs or Incandescent
lamp)(230Vac)
80W (Dimmable LED bulbs or Incandescent
lamp)(120Vac)
Fuse information Built-in Thermal Cut-off Fuses protection.
Rated Temperature :150 °C; Rated: 2A 250V.
LED minimum Min. 20W for Dimmable LED bulb not flickering
Operating Temperature 0°C - 40°C
Humidity Up to 85% max
Storage Temperature -20°C - 60°C
Location Indoor use only
Frequency Range 868.40MHz, 869.85MHz EU
908.4MHz, 916.0MHz US,
922.5MHz, 923.9MHz, 926.3MHz (JP)
920.9MHz, 921.7MHz, 923.1MHz
(TW/KR/Thai/SG)
1
Z-Wave™ or Z-Wave™ Plus Controller,
network Security Modes: S2,
