Philio PAD07 Quick Start Manual

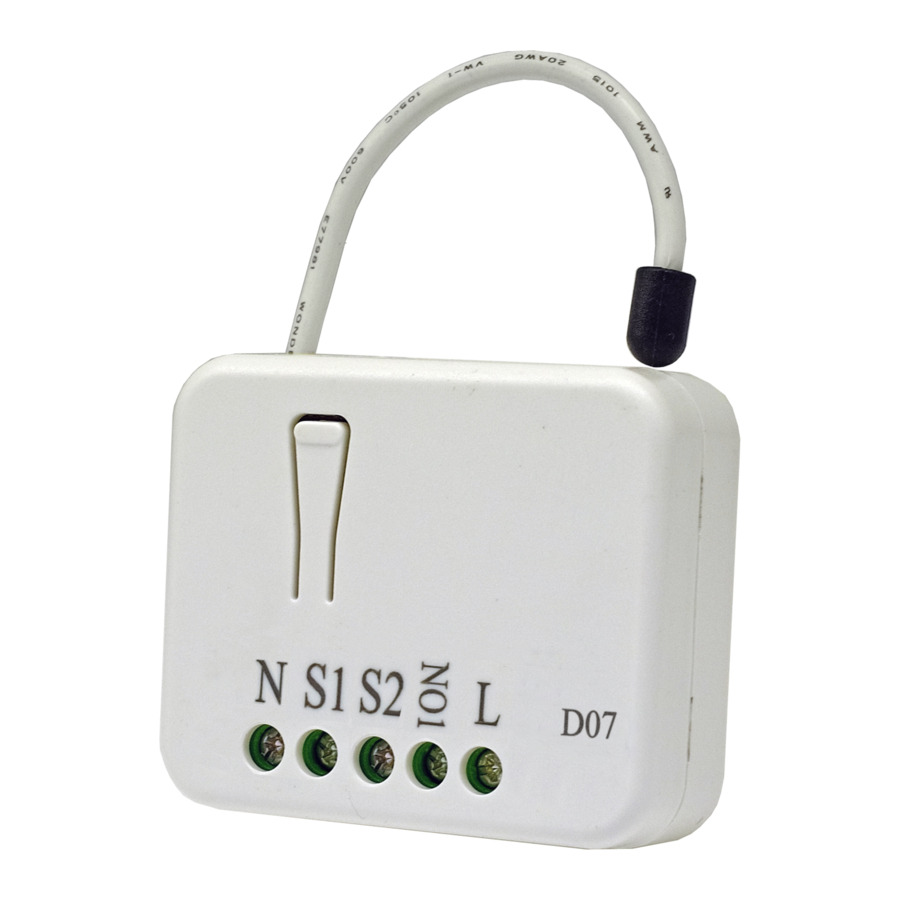

PAD07 In Wall Smart Dimmer
Warning: Do not use Non-Dimmable LED lamps.

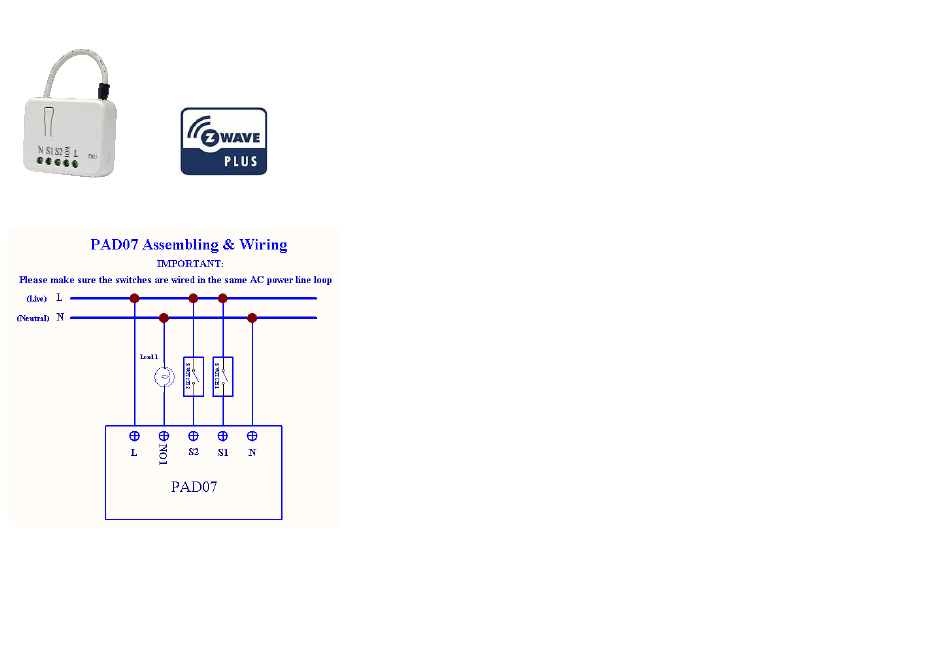

Fig 1. Assembling & Wiring
Built-in High Breaking Capacity current fuse protection. Rating : 2A /250V.
Built-in Thermal Cutoff Fuses protection. Rated Temperature :125 ° C; Rating :
2A /250V.
PAD07 is a security enabled wireless dimmer, based on Z-Wave Plus technology.
TM
Z-Wave Plus enabled devices displaying the Z-Wave Plus
with it regardless of the manufacturer, and can also be used in other manufacturer's
TM
Z-Wave enabled networks. You can On/Off the light by pressing the button briefly,
or a long pressing to control the brightness of dimmable light bulb.
This dimmer is a transceiver which is a security enabled device which based on
Z-Wave Plus technology, and it is fully compatible with any Z-Wave
network. Since PAD07 supports Security Command Class, it can learn with a Secured
enabled controller to fully utilize the device.
classes is identical when included as a secure and non-secure device.
TM
Adding to Z-Wave Network
In the front casing, there is an on/off button (also an include button) with LED indicator
below which is used to dim on and off or carries out inclusion, exclusion, reset or
association. When first power applied, its LED flashes on and off alternately and
repeatedly at 0.5 second intervals. It implies that it has not been assigned a node ID
and start auto inclusion.
Auto Inclusion
The function of auto inclusion will be executed as long as the dimmer does not
have Node ID and just connect the switch to main power.
Note: Auto inclusion timeout is 2 minute during which the node information of
explorer frame will be emitted once every several seconds. Unlike "inclusion" function
as shown in the table below, the execution of auto inclusion is free from pressing the
On/Off button on the dimmer.
The table below lists an operation summary of basic Z-Wave functions. Please refer
1
TM
logo can also be used
TM
enabled
Its functionality and supported command
