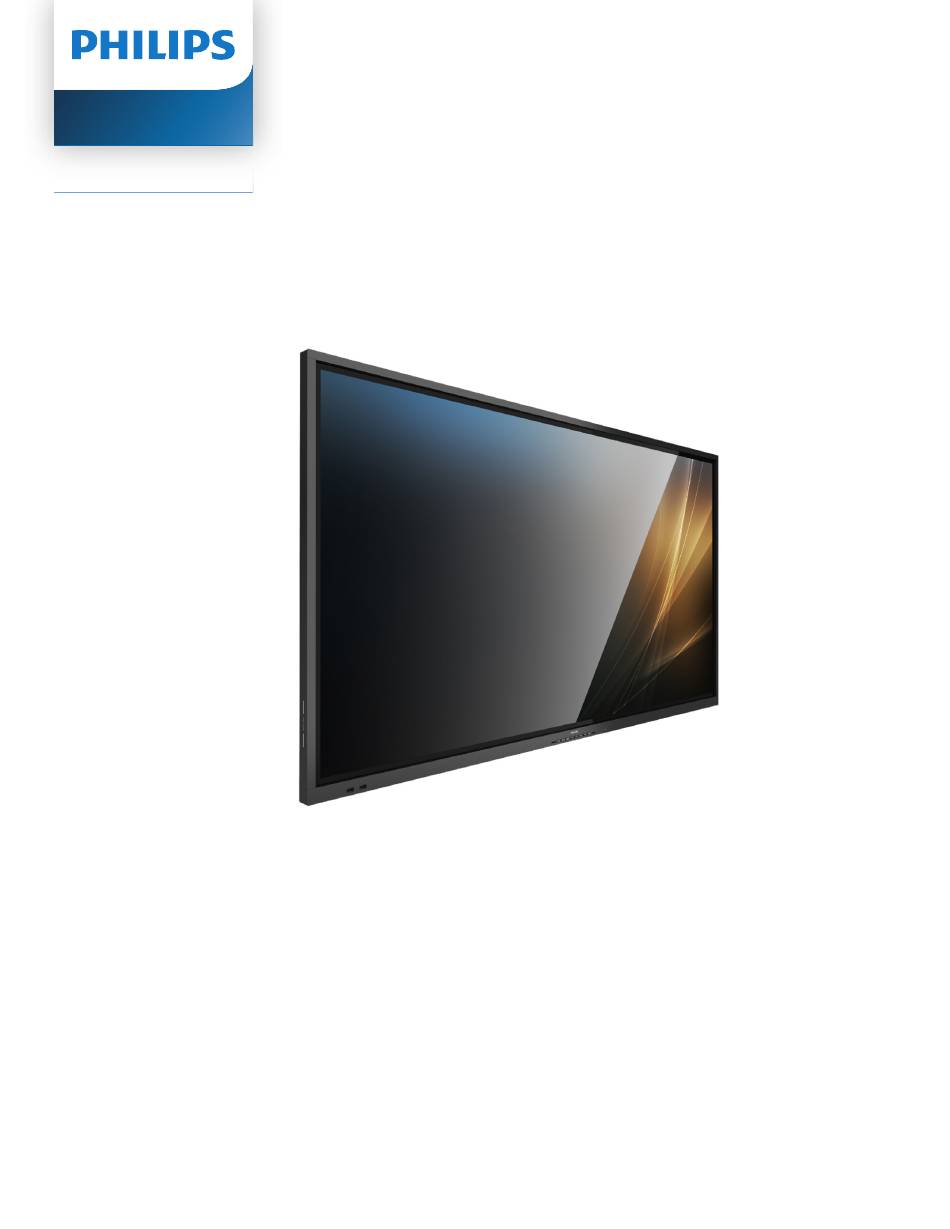

- Page 1 Professional Display Solutions E Line 65BDL4052E 75BDL4052E 86BDL4052E User Manual (English) www.philips.com/welcome...
-
Page 2: Table Of Contents
13.2. Troubleshooting ..........69 5.1. Watch the Connected Video Source ...29 5.2. Change Picture Format ........29 14. Technical Specifications ..........71 5.3. Launcher .............29 Warranty policy for Philips Professional Display 5.4. Media Player ............30 Solutions .................73 5.5. Browser..............34 Index ..................75 5.6. PDF Player ............38 5.7. -
Page 3: Safety Instructions
When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •... - Page 4 65BDL4052E/75BDL4052E/86BDL4052E If your display does not operate normally, having followed the instructions set out in this document, please contact a technician or your local service center. Stability Hazard The device may fall, causing serious personal injury or death. To prevent injury, this device must be securely attached to the floor/ wall in accordance with the installation instructions.
- Page 5 65BDL4052E/75BDL4052E/86BDL4052E Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.
- Page 6 65BDL4052E/75BDL4052E/86BDL4052E FCC/ISED/CE-RED Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5GHz products are restricted to indoor usage only.
- Page 7 65BDL4052E/75BDL4052E/86BDL4052E Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 8 65BDL4052E/75BDL4052E/86BDL4052E Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
- Page 9 65BDL4052E/75BDL4052E/86BDL4052E China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打“X”的部件，应功能需要，部分有害物质含量超出GB/T 26572规定的限量要求，但符合欧盟 RoHS法规要求（属于豁免部分）。 备注：上表仅做为范例，实际标示时应依照各产品的实际部件及所含有害物质进行标示。 环保使用期限 此标识指期限...
- Page 10 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 11 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index.page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 12 65BDL4052E/75BDL4052E/86BDL4052E Information for EAC Month and year of manufacturing please refer information in Rating label. ООО “Профтехника” Name and location of manufacturer Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия Наименование организации: ООО “Профтехника” Адрес: 3-й Проезд Марьиной рощи, 40/1 офис 1. Москва, 127018, Россия Importer and information Контактное...
-
Page 13: Unpacking And Installation
65BDL4052E/75BDL4052E/86BDL4052E Unpacking and Installation 2.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. •... - Page 14 65BDL4052E/75BDL4052E/86BDL4052E • Place the display vertically and its weight should spread evenly on the surface. • Please keep vertically, no bending and torsion during moving the display.
-
Page 15: Package Contents
Cleaning cloth • USB Cover • Cable Clip Touch USB HDMI Cable DVI Cable Touch pen • Philips logo plate AC Switch Cleaning USB Cover Cable Clip Philips logo x 3PCS cloth plate Cover x 1 * Items may differ in different locations * Display design and accessories may differ from the images shown. -
Page 16: Mounting On A Wall
65BDL4052E/75BDL4052E/86BDL4052E 2.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complied with TUV-GS and /or UL1678 standard in North America. Protective Sheet VESA Grid Table... -
Page 17: Parts And Functions
65BDL4052E/75BDL4052E/86BDL4052E Parts and Functions 3.1. Control Panel Remote control sensor and power status indicator ]button • Receive command signals from the remote control. Turn the display On or put the display to standby mode. • Indicate the operating status of the display: [MUTE] button Light green when the display is turned On Mute the sound or reactivate sound. -
Page 18: Input/Output Terminals
65BDL4052E/75BDL4052E/86BDL4052E 3.2. Input/Output Terminals 24 23 AUDIO LINE OUT USB 3.0 RS232 RS232 USB 3.0 Service Port MICRO SD IR-OUT IR-IN 65BDL4052E 75BDL4052E 86BDL4052E 100-240V 50/60Hz 2.5A HDMI OUT USB 3.1 C AUDIO IN DVI-D IN 100-240V USB-B-1 HDMI2 IN AUDIO OUT HDMI1 IN RJ45... -
Page 19: Inserting The Batteries In The Remote Control
65BDL4052E/75BDL4052E/86BDL4052E 3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace the batteries: 1. Press and then slide the cover to open it. 2. Insert the batteries with the correct polarity (+) and (–). 3. -
Page 20: Remote Control
65BDL4052E/75BDL4052E/86BDL4052E 3.6. Remote Control [ ] INFO button Show Information OSD. 3.6.1. General functions NAVIGATION buttons Root Menu: Go to the OSD of Smart picture. Main Menu: Move the selected item up to make adjustment. IR Daisy Chain Menu: Increase the controlled Group ID number. - Page 21 65BDL4052E/75BDL4052E/86BDL4052E 3.6.2. ID Remote Control Press the [ID] button and the red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set remote control ID number when using several displays. ID Mode. The red LED lights up. Press the [ID SET] button again will exit the ID Mode.
- Page 22 3. When playing a video or music file, you can press button to pause playing. 4. All media files should be located in the folder of “philips”, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/ music) are named by media types and shouldn’t be changed.
- Page 23 65BDL4052E/75BDL4052E/86BDL4052E ] BACK button Return to the previous page or exit from the previous function. ] MUTE button Mute or unmute the sound. The button is only controlled by Scalar. [ ] [ ] [ ] [ ] COLOR buttons Hotkey to turn on and off backlight.
-
Page 24: Usb Cover
65BDL4052E/75BDL4052E/86BDL4052E 3.7. USB Cover * Use the USB cover and screws to cover the USB stick and Micro SD card ■ Install the USB sticker and micro SD card. ■ Use the screw from accessory to fix the USB cover. Maximum suitable USB stick size: 20(W)x10(H)x60(L) mm... -
Page 25: Ac Switch Cover
65BDL4052E/75BDL4052E/86BDL4052E 3.8. AC Switch Cover • Use AC Switch Cover to cover the AC switch. 1. Install the AC Switch Cover. 2. Fix the AC Switch Cover with the screw from accessory. (M3*1PC). 65BDL4052E 75BDL4052E/86BDL4052E... -
Page 26: Connecting External Equipment
65BDL4052E/75BDL4052E/86BDL4052E Connecting External Equipment 4.1. Connecting External Equipment (Multimedia Player) 4.1.1. Using HDMI video input HDMI IN Multimedia Player [HDMI IN] HDMI Out 4.2. Connecting a PC 4.2.1. Using DVI input AUDIO IN DVI IN DVI Out Audio Out [DVI IN] [PC LINE IN ] 4.2.2. -
Page 27: Connecting Audio Equipment
65BDL4052E/75BDL4052E/86BDL4052E 4.3. Connecting Audio Equipment 4.3.1. Connecting an external audio device Audio In [AUDIO OUT] AUDIO OUT Stereo Ampli�er 4.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 4.4.1. -
Page 28: Ir Connection
65BDL4052E/75BDL4052E/86BDL4052E 4.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR IN] [IR OUT] DISPLAY 1 DISPLAY 2 [RS232 OUT] [RS232 IN] NOTE: 1. The remote control sensor of this display will stop working if the [IR IN] is connected. 2. -
Page 29: Touch Operation
65BDL4052E/75BDL4052E/86BDL4052E Touch Operation 4.7. Zoom in This display is equipped with a touch-sensitive screen and Touch the target on the screen with two fingertips held supports the Windows Touch features either by single touch together and move them apart to zoom in (magnify) the or multi-touch operation. - Page 30 65BDL4052E/75BDL4052E/86BDL4052E The multi Touch function is not supported by Mac OS. The OS supported is listed below. Item Description Operating Systems Supported Windows 7, 8/8.1, 10 by Plug-and-Play Single Touch Multi Touch Windows 7, 8/8.1, 10 Mac OSX before (include) 10.15 Mac OSX after (include) 10.10 Chrome 38+ Supported Modes of...
-
Page 31: Operation
65BDL4052E/75BDL4052E/86BDL4052E Operation 1) Whiteboard page: Note: The control button described in this section is mainly on the remote control unless specified otherwise. 5.1. Watch the Connected Video Source 1. Press the [ ] SOURCE button. 2. Press [ ] or [ ] button to select a device, then press ] button. -
Page 32: Media Player
The pencil icon means the playlist is non-empty. Clear all 4. If an empty playlist is chosen, the app will guide you through selecting the media source. All media files should be placed in /philips/ of root directory. For example, videos in /philips/video/... - Page 33 65BDL4052E/75BDL4052E/86BDL4052E Note: When long press on one of the directory in Source, full path will be displayed. 5. If you select “USB” storage, the app will guide you through selecting the USB device. 7.1 In the slidebar, the following functions are available: - Select all: select all storage files.
- Page 34 “Repeat Mode”, “Slideshow Effect”, “Effect becomes black when playing music file. Duration”, “Software Decode” and “Autoplay”. Step 2. Copy “mpplaylistX.txt” to “philips” folder of Repeat Mode: select repeat once or repeat all. internal storage. You may use FTP to do this.
- Page 35 65BDL4052E/75BDL4052E/86BDL4052E Step 3. Prepare media files to “photo”, “video” and “music” folder under “philips” folder, internal storage only. Ex. /storage/emulated/legacy/philips/photo/xxx. /storage/emulated/legacy/philips/video/yyy. /storage/emulated/legacy/philips/photo/zzz. Step 4. Start media player app, it will automatically import media player text file. Note: Once the playlist file (text) is imported, if user changes playlist via remote control, this change will not be written on playlist text file.
-
Page 36: Browser
65BDL4052E/75BDL4052E/86BDL4052E 5.5. Browser 4. How to specify the path of the local webpage 4.1 Setting up a html file path Before using this feature, ensure that the system is connected Use “file:///” as a prefix. successfully to the network. 1. Main page of “Browser” App which allows you to make related settings. - Page 37 65BDL4052E/75BDL4052E/86BDL4052E 5.1 Import • The file format supported for import is “.txt”. Select import. • • Select the storage where the file will be imported from. 5.2 Export: Select export • • Select a browser file • Select the storage where the file will be exported to. •...
- Page 38 65BDL4052E/75BDL4052E/86BDL4052E 6. Press the “OK” button to save the URL record. 8. Press “Settings” then enter next page. 7. If you select a non-empty item from the URL list, a message will appear asking if you want to edit or play the 8.1 Incognito URL.
- Page 39 10. How to edit url list via FTP Step 1. Create a text file of media player. File name: bookmarklist.txt. Content: Step 2. Copy bookmarklist.txt to “philips” folder of your internal storage. You may use FTP to do this.
-
Page 40: Pdf Player
Days of the week: 4. If an empty playlist is chosen, the App will guide you through selecting the media source. „ Set Sunday, Monday, Tuesday, Wednesday, All media files should be placed in /philips/ of root Thursday, Friday, Saturday. directory. Every week:... - Page 41 65BDL4052E/75BDL4052E/86BDL4052E 5. To edit or delete a non-empty playlist, select the desired 7. If “Sort” is selected, you can customize the file order playlist that has a pencil icon on right side of the selected severally. file. 8. Select “Settings” on the main page, there are 2 options 6.
-
Page 42: Cmnd & Play
65BDL4052E/75BDL4052E/86BDL4052E 5.7. CMND & Play Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this. 1) Server File path : /storage/emulated/legacy/philips (for DL, Setup CMND & Play server address 2) Account Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt Setup CMND &... -
Page 43: Custom App
65BDL4052E/75BDL4052E/86BDL4052E 5.8. Custom App Custom App Select App User can set up the application for Customer Source 5.8.1. OSD Menu operation: Select App RCU: Source -> Custom FORGET CANCEL SAVE If you set up customer APK, the customer App will be launched when switching source to customer mode. -
Page 44: Side Bar
65BDL4052E/75BDL4052E/86BDL4052E 5.9. Side Bar Hide Hide side bar. Home Open Home. Source menu Open source menu. Annotation Open Annotation. OSD Menu Open OSD menu. My Favorite Open my favorite, add or remove frequently used APK. Tool Touch Lock: Lock the touch function. When touch function is locked, input the password to unlock it. -
Page 45: Whiteboard
65BDL4052E/75BDL4052E/86BDL4052E Whiteboard Multi-point writing: support simultaneous writing of 20 points. 6.1. Main page Save: Support saving of three file formats (picture, PDF, whiteboard). Folder: Open the file manager, you can choose the pictures to be inserted into the sketchpad. 6.2.1. Brush 1 Sketchpad area: Display the writing effect of the brush and the insertion effect of the picture. -
Page 46: Page Switch And Preview
65BDL4052E/75BDL4052E/86BDL4052E 6.3. Page switch and preview 6.2.3. Background color Provide preselected background colors, textures and Page preview: You can preview all the pages that have been backgrounds can be customized. added. Add Page: Add a blank page to the last page. 6.2.4. -
Page 47: Exit
65BDL4052E/75BDL4052E/86BDL4052E 6.5. Exit 6.6.1. Eraser Run in the background: Although you exit from whiteboard mode, it is still running in the background. Exit: Close the whiteboard and exit without saving the current file. Save: You need to save the current file first, then close the whiteboard and exit. -
Page 48: File Manager
65BDL4052E/75BDL4052E/86BDL4052E File manager Files are displayed in thumbnail mode. Entry: On the Android homepage, click the file manager icon to enter the native file manager. 7.1. File manager Select a file and rename, copy, paste, cut, or delete it. 7.2. Display switch Files are displayed in list mode. -
Page 49: Setting Ui
65BDL4052E/75BDL4052E/86BDL4052E Setting UI Setting menu consists of the following items: (1). Network & Internet (2). Signage Display (3). Apps & notification (4). Display (5). Security Tap advanced options for more detail options, such as Static (6). System IP assignment. (7). About 8.1. -
Page 50: Portable Hotspot
65BDL4052E/75BDL4052E/86BDL4052E Static IP User can assign device’s IP Address, Netmask, DNS address and Gateway settings of Ethernet in Static IP connection type. Wi-Fi modification dialog: Note: 1. IP address, Netmask, DNS server address and gateway address are necessary. 2. input limitation Format: number 0-9, decimal point “.”... -
Page 51: Signage Display
65BDL4052E/75BDL4052E/86BDL4052E 8.3. Signage Display Settings for signage display features. Click “FORGET” to remove the bootanimation.zip already stored in /data/local/bootanimation/ folder. Navigation bar Set navigation bar behavior. Always on: Always show navigation bar on the screen. Always off: Never show navigation bar on the screen. Auto hide: Navigation bar will be hidden when no user 8.3.1. - Page 52 65BDL4052E/75BDL4052E/86BDL4052E Tap App. Choose a source for this shortcut. Select an installed App to create shortcut. Click “FORGET” to clean previous settings. “CANCEL” to ignore changes. Click “SAVE” and go back to Home shortcut page. 8.3.2. Server Settings Settings -> Signage Display -> Server Settings -> FTP Click “FORGET”...
- Page 53 65BDL4052E/75BDL4052E/86BDL4052E Click Enable checkbox to enable/disable remote control client service, default is disabled. To user remote control, the device must be bound with remote control server. “Server” for user to input remote control server for URL address (with https:// prefix). If the device has not been bound with remote control server before, input the PIN code provided by server.
- Page 54 65BDL4052E/75BDL4052E/86BDL4052E Custom app Settings -> Signage Display -> Source settings -> Custom app User can set up customer source APK. The selected APK will be launched when switching into customer input source. If customer source APK is not set, system will show Home screen when switching into customer input source.
- Page 55 Set auto restart feature enabled or disabled. Use to clear all data under {storage}/philips/ folder in internal and external storage (1). All： Clear philips/ folder in internal storage, USB and SD card. (2). Internal Storage Clear philips/ folder in internal storage only.
- Page 56 Check if there is CMS file in FTP. selected storage (internal storage, SD card or USB storage). If there is no CMS file in FTP, check philips/ folder in source storage. Source is external storage (SD card or USB storage) Check CMS file in root directory of storage.
- Page 57 65BDL4052E/75BDL4052E/86BDL4052E Security External Storage Lock To disable power for USB port and SD card. Reset password Admin Password Settings -> Signage Display -> System tools -> Admin Password -> Reset Password. Settings -> Signage Display -> System tools -> Admin Password Reset the password to default “1234”.
- Page 58 Change wallpaper Change Home’s wallpaper. If succeed, you will see a “Successful” toast message. Place wallpaper images under internal storage philips/ wallpaper folder. Please note that wallpaper can only be stored in internal storage. Wallpaper image uses PNG or JPG format.
-
Page 59: App & Notification
65BDL4052E/75BDL4052E/86BDL4052E Remote update Black Settings -> Signage Display -> System updates -> Remote update Please keep the network connected and available. Choose “Latest” or “Download code” to download the “update.zip” to root folder from Remote FW server. If "Download Code" is selected, you need to input 10 digits code obtained from remote FW server. -
Page 60: Security
65BDL4052E/75BDL4052E/86BDL4052E Adjust system font size by dragging the slide bar, default is “Largest”. 8.7.4. Physical keyboard Settings of physical keyboard. 8.7.5. Developer options Android system developer options for engineer development. 8.6. Security Android system security settings. 8.6.1. Unknown sources Enable this option to allow 3 party application installation. -
Page 61: Osd Menu
65BDL4052E/75BDL4052E/86BDL4052E OSD Menu 9.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure is 9.2.1. Picture menu shown below. You can use it as a reference for further adjustment of your display. Picture Brightness 9.1. Navigating the OSD Menu Screen Contrast Audio... - Page 62 65BDL4052E/75BDL4052E/86BDL4052E Color temperature Real Adjust the color temperature. This mode displays the image pixel- by-pixel on screen without scaling the The image becomes reddish as the color temperature original image size. decreases, and becomes bluish as the color temperature increases. 21:9 Note: VIDEO source only.
- Page 63 Choose to enable or disable the picture of Logo when turning on your display. • {Off} – Both static Philips logo and Android boot animation will not be shown. • {On} – Default value. Both Philips logo and Android boot animation will be shown.
- Page 64 65BDL4052E/75BDL4052E/86BDL4052E IR control • {User} – Static Philips logo will not be shown, only user- selected boot animation will be shown in Android Select the operation mode of the remote control when settings. multiple displays are connected via RS232 connection.
-
Page 65: Android Settings
65BDL4052E/75BDL4052E/86BDL4052E Failover 12: Home (default) * Schedule Failover 13: Home (default) * Schedule list * Not all modules have all 13 failover list, depends on total Enable source of module Start time Language End time Select the language used in the OSD menu. Input Play list The options are: English/Deutsch/ 简体中文... -
Page 66: Supported Media Formats
65BDL4052E/75BDL4052E/86BDL4052E 10. Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@60fps 80Mbps MPEG4 1080P@60fps 80Mbps H.263 1080P@60fps 80Mbps H.264 4K2K@120fps 200Mbps H.265 4K2K@120fps 200Mbps 1080P@60fps 60Mbps 4K2K@120fps 100Mbps Audio format Audio Codec Sampling Rate: Channel Bit Rate MPEG1/2/2.5... -
Page 67: Input Mode
65BDL4052E/75BDL4052E/86BDL4052E 11. Input Mode Timing support (Computer formats): Item Resolution Refresh rate 720x400 640x480 60, 67, 75 800x600 832x624 1024x768 1152x870 1280x720 1920x1080 1440x900 1680x1050 3840x2160 30, 60 Timing support (Video format): Item Resolution Refresh rate 480i, 480p 576i, 576p 720p 50, 60 1080i, 1080p... -
Page 68: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- &... -
Page 69: Dark Dot Defects
12.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 70: Cleaning And Troubleshooting
65BDL4052E/75BDL4052E/86BDL4052E 13. Cleaning and Troubleshooting 13.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 71: Troubleshooting
65BDL4052E/75BDL4052E/86BDL4052E 13.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure that the power switch is the display is not switched on. - Page 72 65BDL4052E/75BDL4052E/86BDL4052E How to setup the settings in the menu to Daisy chained by RS232 and no IR cable 1. The first display sets as “Primary” on control all the monitors at the same time OSD (Advanced option/IR control item), and individually via RC? others set as “Secondary”.
-
Page 73: Technical Specifications
65BDL4052E/75BDL4052E/86BDL4052E Technical Specifications Display: Specifications Item 65BDL4052E 75BDL4052E 86BDL4052E Screen Size (Active Area) 163.9 cm / 64.5 inches 189.3 cm / 74.5 inches 217.4 cm / 85.6 inches Aspect Ratio 16:9 16:9 16:9 Number of pixels 3840 (H) x 2160 (V) 3840 (H) x 2160 (V) 3840 (H) x 2160 (V) Pixel pitch... - Page 74 65BDL4052E/75BDL4052E/86BDL4052E General: Specifications Item 65BDL4052E 75BDL4052E 86BDL4052E Power Input 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz Power Consumption (Max) 430 W 450 W 670 W Power Consumption (Typ.) 170 W 190 W 450 W Power Consumption (Standby mode & Off <0.5 W <0.5 W <0.5 W...
-
Page 75: Warranty Policy For Philips Professional Display Solutions
LIMITED WARRANTY In the unlikely event the product requires service, we will arrange for your Philips product to be serviced free-of-charge within the warranty period, provided that the product was used in accordance with the user manual (e.g. in the intended environment). - Page 76 Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Standard warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow the local warranty statement.
-
Page 77: Index
Connecting External Equipment (Multimedia Player) 24 USB Cover 22 Connecting Multiple Displays in a Daisy-chain Configuration 25 Control Panel 15 Warranty policy for Philips Professional Display Solutions Watch the Connected Video Source 29 Handling the remote control 17 Input Mode 65 Input/Output Terminals 16... - Page 78 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
