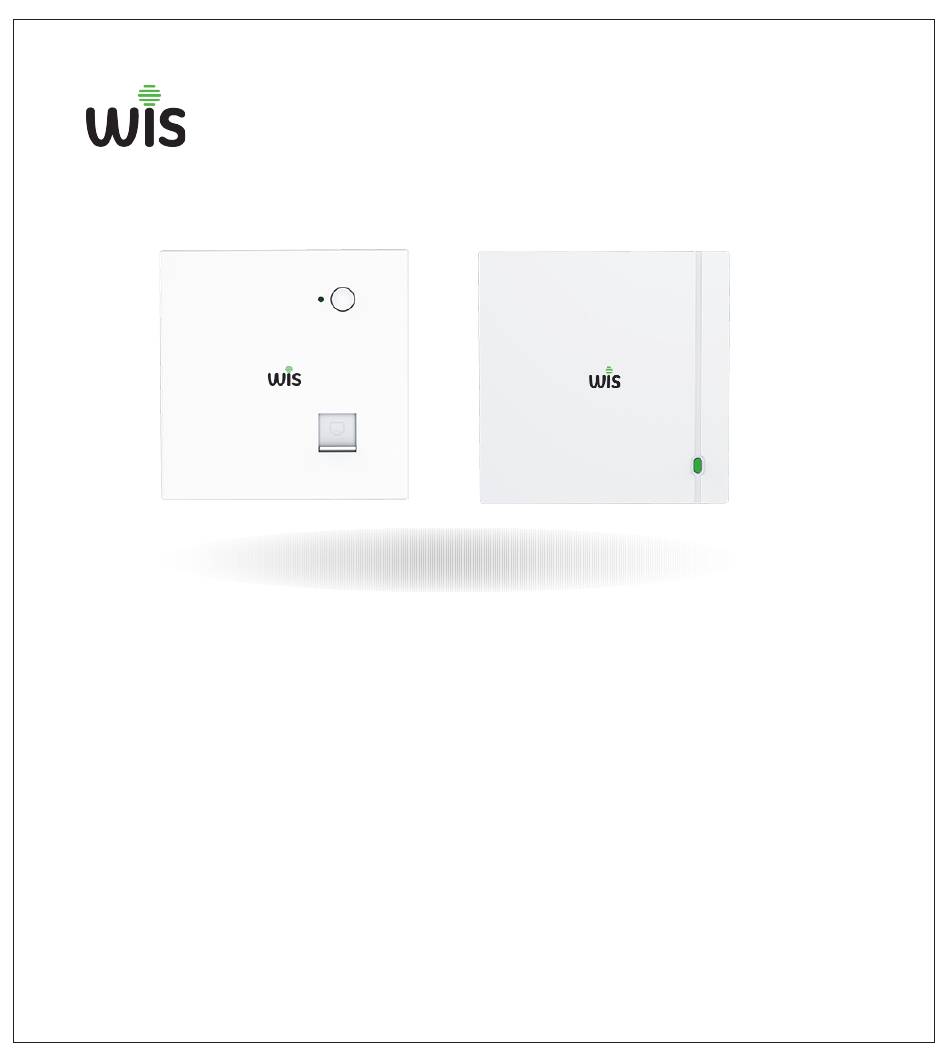

- Page 1 Quick Installation Guide Wall AP Model: WIS-EAP500-WALL WIS-EAP510-WALL WIS-EAP520-WALL www.wisnetworks.in...
-
Page 2: Product Introduction
Product introduction 01 / LED indicator definition Front Back LED Indicator Normal status Explanation Designation System boots up successfully SYSTEM LED Green Ports Definition Port Explanation Connect to internet through ADSL modem or FTTH broadband. Under AP and repeater mode, WAN port will be changed to LAN port Operation environment Suitable for safe use in areas... -
Page 3: Device Installation
Device installation 02 / Step 1: Remove AP top cover with screw driver Open top cover from here AP main body AP top cover... - Page 4 Step 2: Install AP Connect to POE switch AP main body AP main body AP cover S t e p s ①.Open wall socket cover ②.Insert LAN cable into RJ45 port at backside of the AP ③.Put AP into the wall socket ④.Fix the AP with screws ⑤.Install the cover onto AP, finish installation...
-
Page 5: Device Connection
Device connection 03 / Bypass mode topology ： Cloud Server INTERNET Router POE Switch Laptop Mobile Monitor... - Page 6 AC Gateway mode topology ： Cloud Server INTERNET AC(AC gateway all in one POE Switch Laptop Mobile Monitor Tips: If the AP supports 24V POE, pls use 24V PoE switch or POE adapter; if the AP is a standard 48V POE device, please use a standard IEEE802.3at POE switch or POE adapter. When deploy a large wireless network, there are many APs in this network, it is recommended to use a wireless AC controller in the network to centrallized-manage all APs in the network.
-
Page 7: Device Management
Device management 04 / Management from WEB UI Connect PC by wireless 1.To connect an AP wirelessly, you need set the IP address of the TCP/IP properties of the wireless network card to 192.168.2.2 (X is number range of 2-252) first, so that the AP and PC in the same IP segment, and set the subnet mask to 255.255.255.0, as shown in the following picture: Set PC wireless network card IP... - Page 8 "Wireless network Connection", in the pop-up wireless SSID list, select "Wireless 2.4G", click "Connect", then enter the password in the pop-up password dialogue box, the default password is "66666666", click "OK" to connect. NETWORK WIS 2.4 View wireless connection...
- Page 9 Connect PC by wired port Using the wired connection, set the IP address of the TCP/IP properties of the wired network card to 192.168.188.X (X is number range of 2---252), and the PC will be the same IP segment as AP.
- Page 10 1.Use Internet Explorer to visit http://192.168.2.2, pop up the login dialogue box shown in the following picture, input the default login password: admin, then press “Login” to enter the wireless AP’s management user interface page. Information Input password Login Settings 2.By default it is in Fit AP mode, users need click the button at the right corner to change it to FAT AP mode if needed.
- Page 11 3.In FAT AP mode user interace home page is as shown below: Operation Mode AP Mode Fat AP Flow(2G Wifi)bps Home Wizard WIFI Uptime 01:05:39 Network Device Information Device Description LAN Information WIFI Information IP Mode Get IP From AC Status 192.168.2.2 SSID...
- Page 12 5. Enter AP Mode setup page,choose “Get IP from AC” in connection type, click Next. AP Mode √ LAN Settings IP Mode Get IP From AC Static IP Get IP From AC Get IP From Gateway Next 6. Enter Wifi setup page,set up SSID, Channel, Encryption parameters as shown below: AP Mode √...
- Page 13 7. Click Next and setup completed AP模式 AP Mode √ Have completed your configuration！ Device Management Users can backup,reboot and reset to factory default settings through device management menu options. Also you can modify the WEB login password, upgrade firmware, time synchronization and system log statistics and other functional settings as shown in picture below.
- Page 14 Wireless testing 1.Use Laptop or mobile phone to test whether the wireless network can surf the Internet: click wireless network , select the wireless SSID, enter the password to connect the wireless AP, test whether you can surf the Internet. 2.Check the status of the wireless network connection: signal quality, speed, Bytes sent and received.
- Page 15 Other mode Current Mode Gateway Repeater Mode WISP Mode AP Mode Gateway Mode Realize router function, WAN port connect with modem (ADSL or Fiber) , or WAN port connect internet by dynamic or static IP type. Repeater mode Realize wireless bridge and forwarding without compatibility matching with the upper device.
- Page 16 Use mobile phone to login Mobile phone login web page of AP (default password is admin) Set static IP for mobile phone after connecting to AP ： How to set static IP for Android system mobile phone ①. Open the phone click "settings", choose "WLAN" , find and long press the SSID of the AP, pop-up menu select "Static IP", set a static IP 192.168.2.2 (X can not be 253 or 252) (the static IP should be same IP segment as AP) for mobile phone, then input the right Gateway IP, network mask and DNS.
- Page 17 X . X . X...
-
Page 18: Faq And Solutions
FAQ and Solutions Q1: Forget login name and password ? A1: Reset to factory default settings: press the reset button for above 10 seconds and release it , the device will reboot and reset to factory default settings automatically. Q2: Can not Login wireless AP management WEB interface ? A2: 1.Check if PC with static IP and if this IP is in the same IP segment of AP, make sure it is not set to other IP range.
