AD630S-AD630SA
IP66 grade of protection – 120dB – 2 Way
Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and
Audio Applications. Zone Announcements, Night Ringer, Multicast general call,
Background music, Standard SIP call or Emergency call, SD memory with pre-recorded
messages, Relays for LAN drives.
Revision
Date
0
19/04/2022
TEMA TELECOMUNICAZIONI
"IP COMMUNICATION AND SECURITY COMPANY"
WWW.TEMATLC.IT

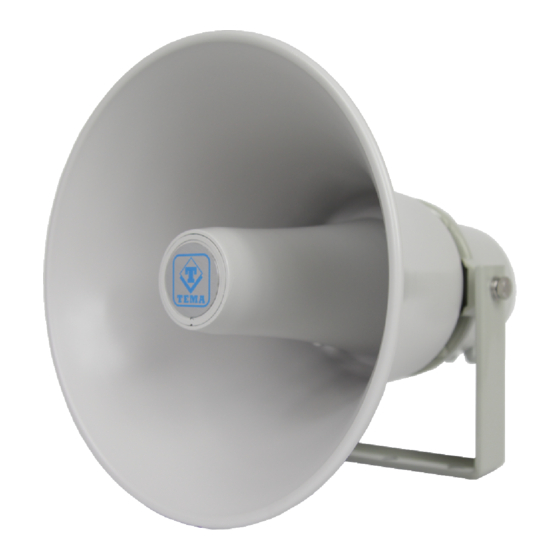

VoIP SIP 30W PoE Horn Speaker
QUICK GUIDE
HW Version 1.0 - SW Version 1.1
Serie Audio Over IP Network
Revision reason
First edition
Prepared
MM, DP
Checked/Approved
DP, FL
Advertisement
Table of Contents
Related Manuals for Tema Telecomunicazioni AD630S
Summary of Contents for Tema Telecomunicazioni AD630S
- Page 1 TEMA TELECOMUNICAZIONI “IP COMMUNICATION AND SECURITY COMPANY” WWW.TEMATLC.IT AD630S-AD630SA VoIP SIP 30W PoE Horn Speaker IP66 grade of protection – 120dB – 2 Way QUICK GUIDE HW Version 1.0 - SW Version 1.1 Serie Audio Over IP Network Products for VoIP SIP LAN networking Communications, Paging Amplifiers Systems and Audio Applications.
- Page 2 AD630S-AD630SA VoIP SIP PoE Horn TEMA TELECOMUNICAZIONI DICHIARAZIONE DI CONFORMITÀ CE DECLARATION OF CONFORMITY CE TEMA TELECOMUNICAZIONI SRL Via C. Girardengo, 1/4 - 20161 MILANO declare under our sole responsibility that the product: Horn VoIP SIP 30W PoE IP66 Product name...
- Page 3 This document is property of Tema Telecomunicazioni, It is forbidden any duplication and reproduction, even partial, as well as storage on any medium without written permission of Tema Telecomunicazioni.
-
Page 4: Table Of Contents
AD630S-AD630SA VoIP SIP PoE Horn TEMA TELECOMUNICAZIONI INDICE PAGINA PRESENTATION ............................5 FEATURES ..............................7 PACKING LIST ............................7 TECHNICAL SPECIFICATIONS ....................... 8 OPERATION ..............................9 5.1. D ..........................9 EVICE CONNECTION DIAGRAMS OPERATING MODES..........................10 6.1. C ............................10 ALLS TO DEVICES 6.2. -
Page 5: Presentation
LAN that originated the call to the AD630S horn, eg. to report the event to any auxiliary devices connected downstream. - Page 6 AD630S-AD630SA VoIP SIP PoE Horn TEMA TELECOMUNICAZIONI VoIP SIP Amplifiers-Speakers and accessories of the AD600 series AD630S AD615/S IP-SIP PoE 30W alluminium Horn Audio Encoder Module from Speaker with 40W internal amplifier (2x20W) IP65 analog to digital on LAN Network in AD330/30T protection.
-
Page 7: Features
AD630S-AD630SA VoIP SIP PoE Horn TEMA TELECOMUNICAZIONI FEATURES AD630S IP PoE Horn with aluminum alloy cone, AD630SA IP PoE ABS Horn, IP65 grade of protection • • Dimensions 245 x 245 x 300 mm (AD630S), 215 x 283 x 290 mm (AD630SA) •... -
Page 8: Technical Specifications
Operating temperature From -20° to +60°C Relative humidity Up to 100% Dimensions 245 x 245 x 300mm (AD630S) / 215x283x290 (AD630SA) Weight 2,1 Kg (AD630S) / 2,2 Kg (AD630SA) Warranty 2 years, possibility of extension 3 to 5 years (Option) -
Page 9: Operation
The device allows also the “streaming” Multicast sound diffusion. In this case the RTP audio diffused in LAN will be played amplified by the AD630S horn. Differing from the announce mode on direct call, with multicast mode, more devices can diffuse the same message at the same time, useful for general pre-recorded ads or for music sound diffusion. -
Page 10: Operating Modes
6.1. Calls to devices Call from the PBX phones to the AD630S system allows to make announcements to the network speaker. However, it is a normal telephone call, typically unidirectional although AD630S makes possible to hear the sound present in its vicinity, being equipped with an internal microphone. Calling the extension number connected to the systems, they will answer after a set time. -
Page 11: Installation Of The Device
Connecting the internal module of AD630S Inside of AD630S there is an electronic module for the management of communication functions on the VoIP network, and for amplification of the audio signal. The connection of the signal cables from the field must be carried out by qualified technical personnel, operate verifying that no cable is under voltage, also strictly comply with the instructions of the voltage and current values for the power supplies and other parts of the system. - Page 12 RJ45 LAN port (present on the electronic module) AD630S requires a LAN cable to connect to the network. If the port cable has also PoE, it will not be necessary to supply the module with other power sources (up to max 10W powers). For higher powers will be necessary to supply the module with other power source of 24 Vdc 2A or max 18Vac 2.5A.
-
Page 13: Correct Connection Of An Additional Passive Speaker
3,277 Ohm/Km SP - AD630S with additional speakers of the same design Thanks to the 2nd internal audio amplifier it is possible to connect to the active IP unit another 1 or 2 low-cost passive speakers of the same design to increase power, directionality, extend the area served, even in different rooms separated by walls, in order to reduce the cost of the plant. -
Page 14: 100V Audio Line For Additional Speakers Away From The Ad630S Ip Horn Unit
(with internal transformer suitable for 100V line and selectable power) even at distances up to 200 meters from AD630S. The total sum of the powers of the installed speakers must not exceed the maximum power of 20W. -
Page 15: Programming
Programming takes place through the WEB interface. To access, simply connect an Ethernet cable from a PC or switch to the LAN port of the AD630S. The system is supplied with active DHCP (dynamic setting of the network address) for which the IP address is automatically assigned by the local DHCP server. -
Page 16: Access To Programming
If the fields relating to the main account and the ring account appear in green, it means that the device is correctly registered on an IP-PBX. Otherwise it can work in P2P (Peer to Peer) and Multicast channels. For the complete programming of the AD630S-AD630SA devices and other details, refer to the COMPLETE TECHNICAL MANUAL downloadable at the links: https://www.tema-ipaudio.com/en/products/ip-audio/sip-speakers/ad630/...
