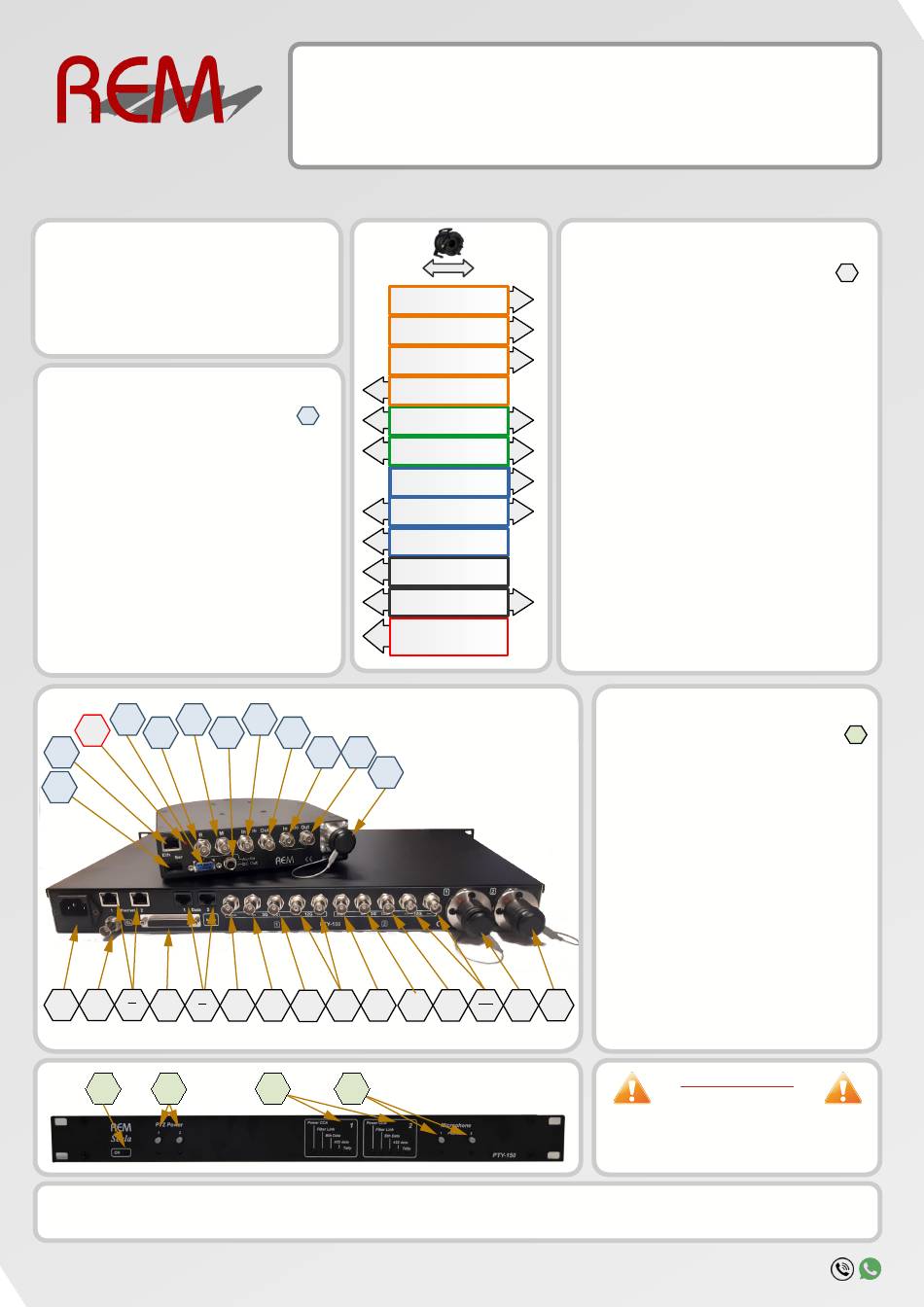

Rem Cambox SCALA Quick Manual

Fiber Solutions
SCALA – Quick Manual – FULL Version
Devices:
PTX-150
Cambox Camera Adapter
PTY-150
Cambox Control Unit
Camera Adapter PTX-150
Connections
1 RS422 + Tally
2 Ethernet
3 Audio In/Out
4 Reference Out
5 SDI 'M' Input (to Control Unit)
6 DC Out to PTZ
7 SDI Input (to Control Unit)
8 SDI from Control Unit
9 12G input to Control Unit
10 12G Active Loop Out
11 Lemo Hybrid Connector
3 5
ON
4 6
Led
2
1
1 2
19 15 16
8 9
1 2,3
Note: Energy is not supplied to hybrid cable until camera adapter fully connected and handshaked.
To avoid unwanted spikes it is recommended to disable power to PTY-150 before disconnecting it
REM
Via Sorrento 20153 Milan Italy
Cambox SCALA
PTZ HYBRID / Fiber INTERFACE
PTZ
PTX-150 with PTY-150
7
8
Only one Camera Adapter show
9 10
11
6
3 4 10 11
5
7
Control Unit PTY-150
6,7 4,5
www.remsnc.it
CCU
1 Ethernet (CCA1)
12G SDI
2 RS422 & Tally/GPI (CCA1)
3G SDI 1 3 SDI 'M' Output (from CCA1)
4 SDI Input (to CCA1)
3G SDI 2
5 SDI Output (from CCA1)
6 SDI-12G (from CCA1)
3G SDI Ret
7 SDI-12G (from CCA1)
RS422 / 232
8 Ethernet (CCA2)
9 RS422 & Tally/GPII (CCA1)
Ethernet 1G
10 SDI 'M' Output (from CCA2)
Microphone 11 SDI Input (to PT 2)
12 SDI Output (from CCA1)
LINE Audio
13 SDI-12G (from CCA2)
14 SDI-12G (from CCA2)
Audio / TC
15 Reference Input (BB or MS)
Genlock
16 Audio In/Out (4+4)
17 Lemo Connector (CCA1)
Tally / GPI
18 Lemo Connector (CCA1)
POWER
19 Main 90-250 Vac (Fuse 2AT)
13
12 17 18
14
cambox@remsnc.it
Control Unit PTY-150
Connections
Control Unit PTY-150
Commands LEDs
/
1 CCU PTY-150 Powered
2 Power Enable (CCA1)
3 Power Enable (CCA2)
4 Phantom Enable (CCA1)
5 Phantom Enable (CCA2)
6 Status (CCA1)
7 Status (CCA2)
Status LEDs:
Power CCA = PTX-150 Powered
Fiber Link = Fiber Active
Eth Data = Data present in Ethernet
422 Data = Serial Data present
Tally = Tally Activated
Safety Notes
Do not open units
Dangerous voltage inside.
Check Ground connection
Do not change fuse value
