Rem SPU48 Quick Start Manual

Fiber Solutions
SPU48 – Advanced Power Unit –
Belt Clip and V-Lock
CPU Side by Side mount
HXC-FB80
CCU
Fiber Pair
Up to 8 Km
Note:
The Power Unit do not supply energy to Hybrid Cable until Camera Adapter is physically connected.

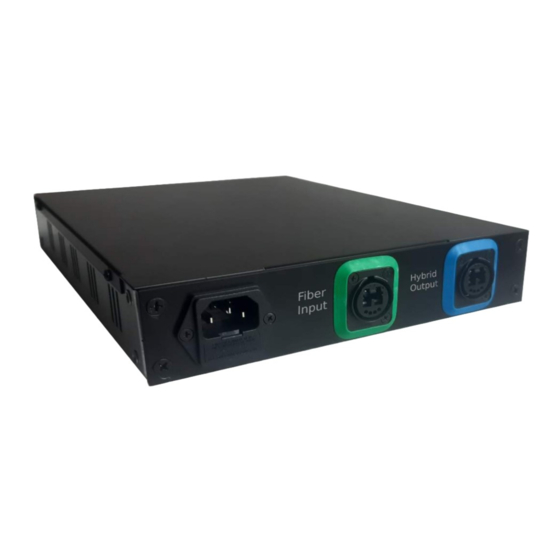

SPU48 ½ RU Power Unit
|
On DC Out
0
Fiber
Input
Main Input: 90-240 Vac 60VA → Fuse: T1A
Fiber : Connect Fibers LC/LC coming from HXC-FB80 CCU
Input
Hybrid Output: Powered Hybrid Out to Camera Adapter
Neutrik Opticalcon DUO or Lemo - SMPTE304M
REM
Via Sorrento, 21 20153 Milan Italy
Cambox SPU48
Sony HXC-FB80 Advanced Power Unit
SPU Power Unit
Main Vac
CCFN
Cable
Power Unit
DC Out
Hybrid
Up to 750 mt.
Main Switch:
Unit →
Switch on the Power On LED
DC Out LED:
Lighted when Adapter connected and powered
Hybrid
Output
www.remsnc.it
( ½ RU + CCA )
SPU48 Camera Adapter
Belt-Pack & V-Lock
In-DC-Out
Models:
SPU48N : Neutrik Opticalcon DUO
SPU48M : Neutrik Tail to Lemo SMPTE 304M
SPU48L : Lemo SMPTE 304M
SPU12V : Multi-Brand
CCFN
Tail
Camera
Adapter
Hybrid
130 cm
SPU48M
Special version developed to use
SMPTE / LEMO cable connection
between Power Unit and Camera Adapter
keeping Neutrik connection to HXC-FB80
Camera
SPU12V
Adapter
Same features. Multi-Brand.
The Camera Adapter is fixed on battery
Plate, energy is supplied through battery
pins or XLR4 and data via 10cm LC-LC.
V-Lock or Gmount versions available.
Not compatible with HXC-FB80-L
cambox@remsnc.it
Out
(TAIL)
(HXC-FB80-L)
(power to camera 12V)
HXC-FB80
HEAD
Power V-Lock
HXC-FB80
HEAD
Fiber LC/LC
Preliminary
( : +39.348.3147783
H24)
