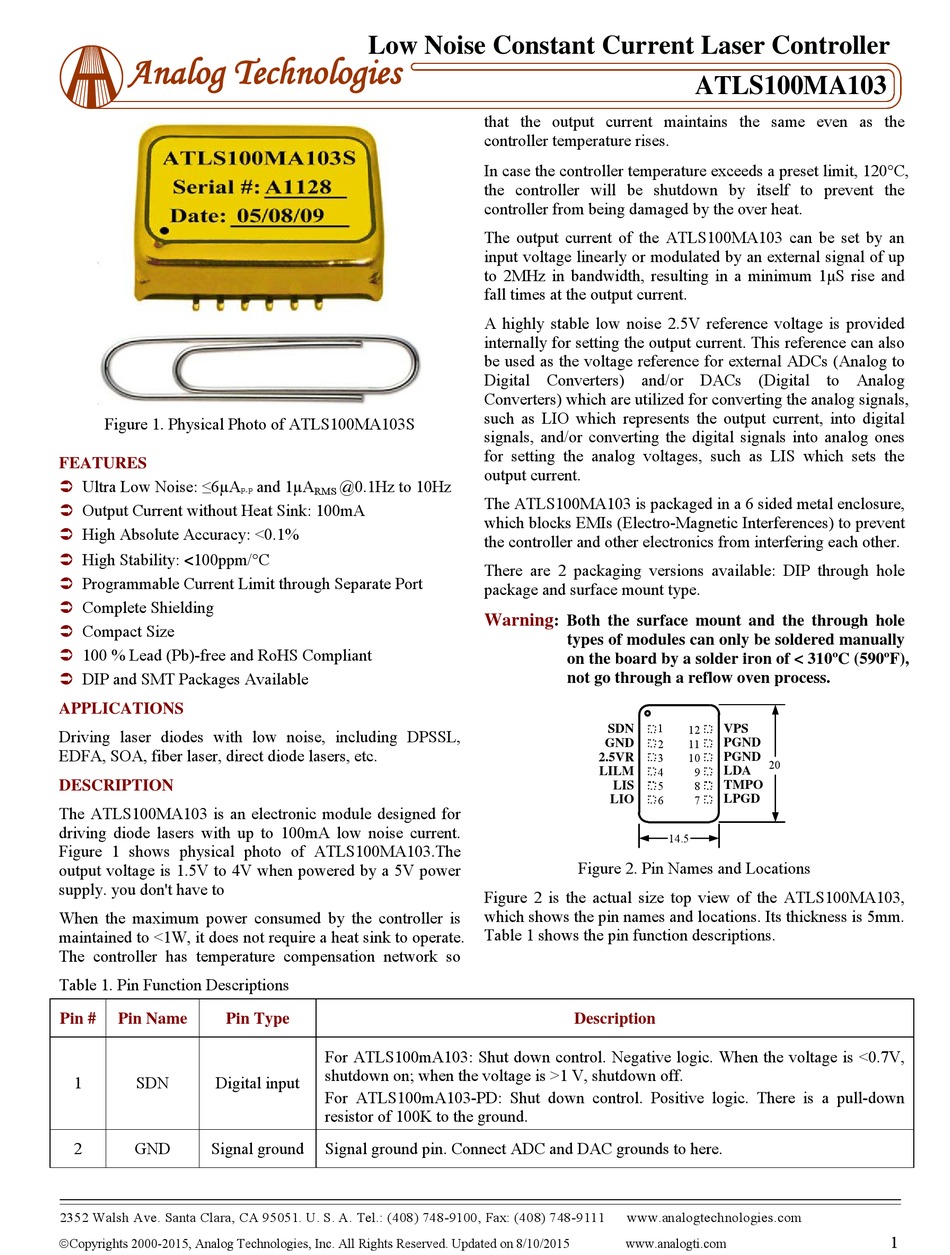

Analog Technologies ATLS100MA103 Quick Start Manual

Analog Technologies

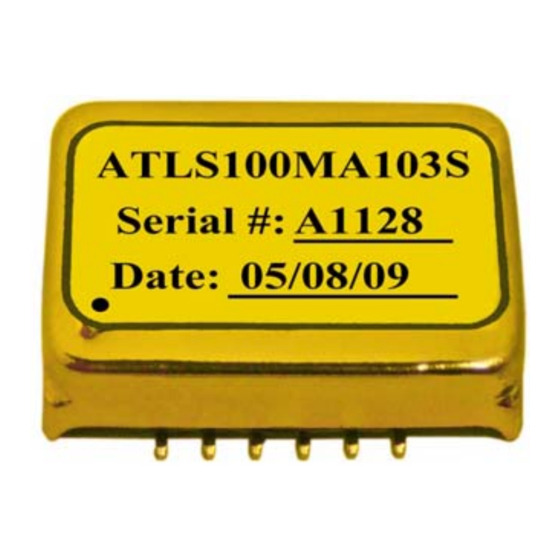

Figure 1. Physical Photo of ATLS100MA103S
FEATURES
 Ultra Low Noise: ≤6µA
 Output Current without Heat Sink: 100mA
 High Absolute Accuracy: <0.1%
 High Stability: <100ppm/°C
 Programmable Current Limit through Separate Port
 Complete Shielding
 Compact Size
 100 % Lead (Pb)-free and RoHS Compliant
 DIP and SMT Packages Available
APPLICATIONS
Driving laser diodes with low noise, including DPSSL,
EDFA, SOA, fiber laser, direct diode lasers, etc.
DESCRIPTION
The ATLS100MA103 is an electronic module designed for
driving diode lasers with up to 100mA low noise current.
Figure 1 shows physical photo of ATLS100MA103.The
output voltage is 1.5V to 4V when powered by a 5V power
supply. you don't have to
When the maximum power consumed by the controller is
maintained to <1W, it does not require a heat sink to operate.
The controller has temperature compensation network so
Table 1. Pin Function Descriptions
Pin # Pin Name Pin Type
1 SDN Digital input
2 GND Signal ground
2352 Walsh Ave. Santa Clara, CA 95051. U. S. A. Tel.: (408) 748-9100, Fax: (408) 748-9111
Copyrights 2000-2015, Analog Technologies, Inc. All Rights Reserved. Updated on 8/10/2015
Low Noise Constant Current Laser Controller
and 1µA @0.1Hz to 10Hz
RMS
P-P
For ATLS100mA103: Shut down control. Negative logic. When the voltage is <0.7V,
shutdown on; when the voltage is >1 V, shutdown off.
For ATLS100mA103-PD: Shut down control. Positive logic. There is a pull-down
resistor of 100K to the ground.
Signal ground pin. Connect ADC and DAC grounds to here.
that the output current maintains the same even as the
controller temperature rises.
In case the controller temperature exceeds a preset limit, 120°C,
the controller will be shutdown by itself to prevent the
controller from being damaged by the over heat.
The output current of the ATLS100MA103 can be set by an
input voltage linearly or modulated by an external signal of up
to 2MHz in bandwidth, resulting in a minimum 1μS rise and
fall times at the output current.
A highly stable low noise 2.5V reference voltage is provided
internally for setting the output current. This reference can also
be used as the voltage reference for external ADCs (Analog to
Digital Converters) and/or DACs (Digital to Analog
Converters) which are utilized for converting the analog signals,
such as LIO which represents the output current, into digital
signals, and/or converting the digital signals into analog ones
for setting the analog voltages, such as LIS which sets the
output current.
The ATLS100MA103 is packaged in a 6 sided metal enclosure,
which blocks EMIs (Electro-Magnetic Interferences) to prevent
the controller and other electronics from interfering each other.
There are 2 packaging versions available: DIP through hole
package and surface mount type.
Warning
: Both the surface mount and the through hole
types of modules can only be soldered manually
on the board by a solder iron of < 310ºC (590ºF),
not go through a reflow oven process.
1
SDN
2
GND
2.5VR 3
LILM 4
LIS 5
LIO 6
Figure 2. Pin Names and Locations
Figure 2 is the actual size top view of the ATLS100MA103,
which shows the pin names and locations. Its thickness is 5mm.
Table 1 shows the pin function descriptions.
Description
www.analogtechnologies.com
www.analogti.com
ATLS100MA103
12
VPS
11 PGND
10 PGND
20
9 LDA
8 TMPO
7 LPGD
14.5
1
