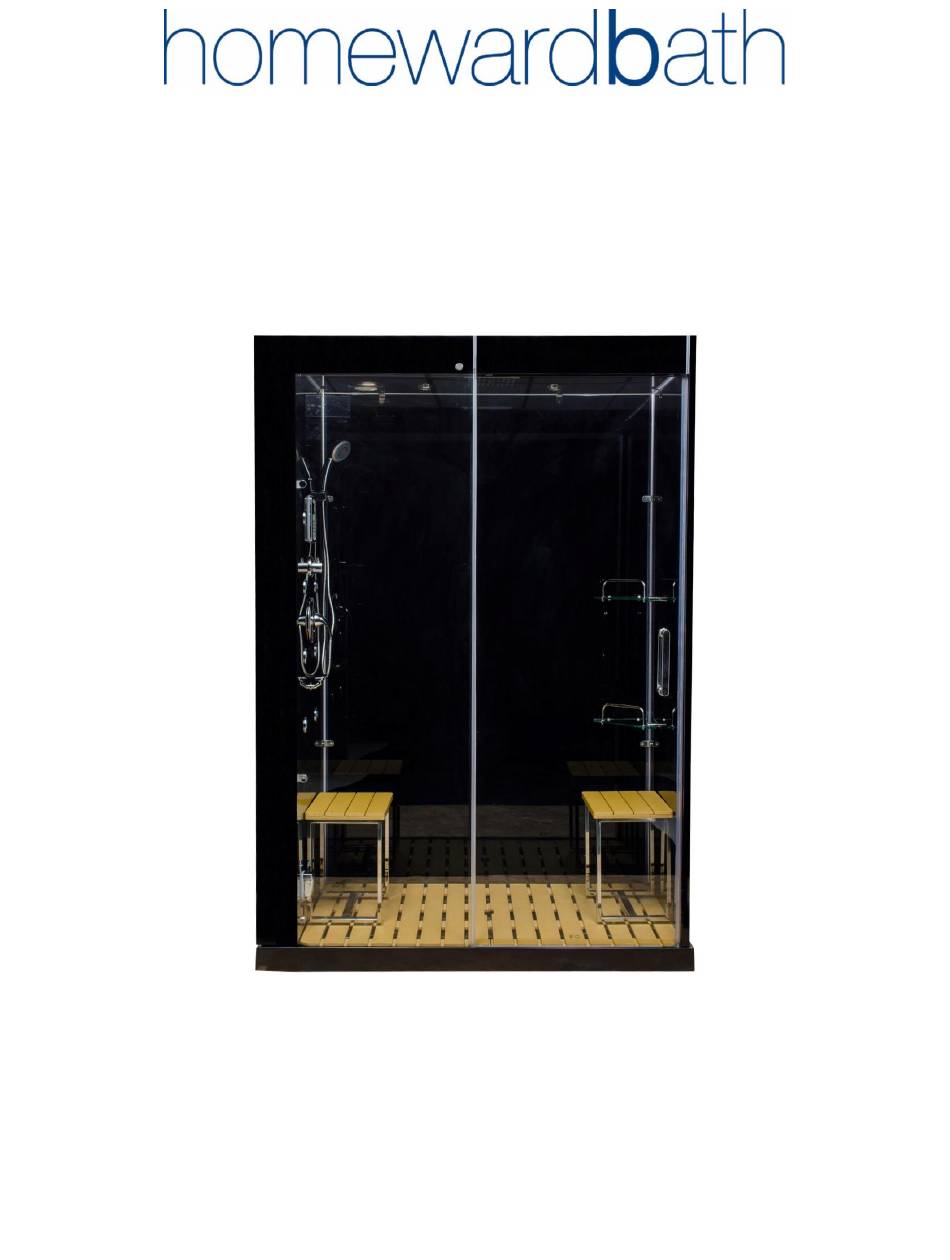

Venus Series Steam Showers
Installation & Operation Manual
Models: HW6030 & HW6028S
In order to operate and use the product properly, please follow all instructions provided in this User's Manual. Our company reserves the right to
change the Manual at any time. The manual takes effect the date it's published. This manual shall prevail if there is any difference between this and
previous documents and manuals.
www.hwbpro.com
866-783-2661
Revision Date: 09/2022
Advertisement
Table of Contents
Related Manuals for Homewardbath Venus Series
Summary of Contents for Homewardbath Venus Series
- Page 1 Venus Series Steam Showers Installation & Operation Manual Models: HW6030 & HW6028S In order to operate and use the product properly, please follow all instructions provided in this User’s Manual. Our company reserves the right to change the Manual at any time. The manual takes effect the date it’s published. This manual shall prevail if there is any difference between this and previous documents and manuals.
-
Page 2: Table Of Contents
Table of Contents NOTICE TO INSTALLERS ................................3 PACKING NOTE ..................................3 PRODUCT FEATURES ................................4 TECHNICAL INFORMATION ..............................4 PUMBING REQUIREMENTS ..............................4 GENERAL INFO ..................................4 PARTS LIST ....................................5 GLASS ANGLE BRACKET INSTALLATION INSTRUCTION ....................... 5 SECTION PICTURE OF RUBBER SEAL ............................ 5 INSTALLATION INSTRUCTIONS .............................. -
Page 3: Notice To Installers
NOTICE TO INSTALLERS 1. The overall height from the ground to the ceiling has to be minimum of 85in for the enclosure. 2. The water pressure has to be in the 55-75 psi range and, if the pressure is lower than required, you may install a booster to the water supply. -
Page 4: Product Features
PRODUCT FEATURES ➢ Two-person Steam and Shower Enclosure ➢ FM Radio ➢ Low Threshold 2.75″ H Base included ➢ Bluetooth ➢ 3.5kW Quick heating Self-Draining Steam Generator ➢ “Chromotherapy” LED multiple Color Lights ➢ Steam Aromatherapy Cup ➢ Waterproof Shower Grid ➢... -
Page 5: Parts List
PARTS LIST 1. Base 2. Electrical Control module w/ Generator 3. Control panel (Glass A) 4. 90-degree bracket (15) 5. Painted large back panel (Glass B) 6. Painted left fixed glass (Glass C) 7. Painted top (Glass D) 8. Shelves (2) 9. -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Note: Confirm the drain setup. When installing make sure each panel is level, square, plumb and 90-degree before securing completely. 1. Determine whether you are installing a left or right 9. Note: Attach glass shelf brackets to back of panel B unit. - Page 7 13. Insert the half-moon shaped rubber seals onto the 16. Make sure the half-moon shaped seals are on the outside facing edge and trim. Install the half-moon sides of the top D. If needed, assemble the half- seal on top edge of the glass A. Note: top gasket moon shaped seals on the sides A, and C of glass D may be already installed on the panel.
- Page 8 19. Steam Generator Drain Connection: There is a gray 29. Steam Cup Connection: hose with two hose clamps. One end of the hose a. Steam Outlet connects to the 90-degree fitting at the bottom of the b. Steam Line generator labeled drain and the other end attaches to c.
-
Page 9: Pfister Handle Assembly
PFISTER HANDLE ASSEMBLY TEMPERATURE ADJUSTMENTS TRIM FLANGE ATTACHMENT Position Flange (A) on the Valve (B) with drain hole (C) at the bottom. Place Protective Washer (D) on the short end of the reversible Retainer Sleeve (E). Screw Retainer Sleeve (E) onto threaded section of the Stem and Bonnet (G). Tighten Retainer Sleeve (E) by hand until Flange (A) is snug to finished wall surface. -
Page 10: Faucet Function And Usage
FAUCET FUNCTION AND USAGE ➢ Water Diverter handle o Turn the diverter handle according to the signs marked on its face. ➢ When you use the hand held shower, turn the knob to the hand held shower sign; ➢ When you use the massage jets, turn the knob to the back-massage sign. ➢... -
Page 11: Keypad Operations Instructions
KEYPAD OPERATIONS INSTRUCTIONS Press on button – Keypad will light up NOTE: When keypad has not been used for 30 seconds the locked symbol on the right side of the keypad will light up. To get out of locked mode press the Shuttle Knob If you rotate the Shuttle Knob and it doesn’t move, make sure it is not in the... -
Page 12: Faucet Cleaning And Maintenance
The Mhz will be displayed. To Manually find a station Make sure the Mhz is flashing by making sure the tune is highlighted and pressing Shuttle Knob. The Mhz will start to flash then you can then rotate the Shuttle Knob to the particular station. Once you have found your particular station press the Shuttle Knob to set it. -
Page 13: Pfister Maintenance & Care
Clean the cartridge assembly (D). check to ensure the two oval PFISTER MAINTENANCE & CARE O-Rings (F) on the back of the cartridge (E) are in place. DISASSEMBLY: Reassemble cartridge, stem and bonnet assembly and handle. 1. Replacement parts may be available at Lowes or Home Depot. Turn on the water and test. -
Page 14: Additional Information
ADDITIONAL INFORMATION To purchase replacement parts, go to www.hwbpro.com/parts If you require additional help, go to https://www.hwbpro.com/warranty-parts-request/ If this is an immediate need, call 866-783-2661. We are here from 9am - 4.30pm EST. WARRANTY INFORMATION & REGISTRATION Please visit our website to register your product: https://www.hwbpro.com/warranty-registration/ Note the serial number of your unit for future references: ____________________ Registration must be completed within 45 days of receipt to be valid.
