Steren FMT-845 - Audio Transmitter Manual

IMPORTANT


Read these manual to avoid any damage. The instructions of these manual are for reference about the product. There may be differences due to update. Please check our web site www.steren.com to obtain the latest version of the instruction manual.

CAUTIONS


Remember operate your vehicle with caution and to give full attention at driving. Use the speakerphone or handsfree to answer a call while driving.

Do not use or store the product in places where there dripping or splashing.

Wipe the product with a soft nad dry cloth or a cleaning brush very gently.

This device cannot be used by people with different habilities, at less they have preparation and supervision.

This product is NOT a toy; keep it away from children.

It is recommended to connect to a single audio source.

The operation of this device is subject to the following two conditions:

  1. it is possible that this device may not cause harmful interference and
  2. this device must accept any interference, including interference that may cause undesired operation.

PARTS

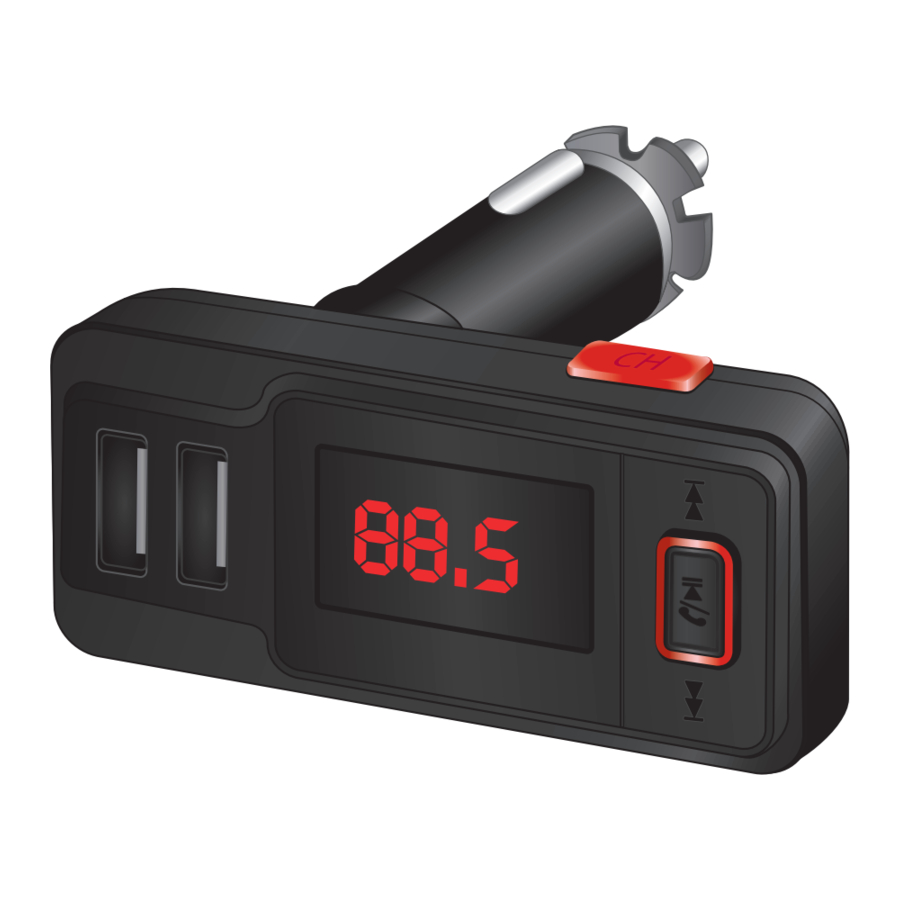

TRANSMITTER

PARTS - TRANSMITTER

REMOTE CONTROL

PARTS - REMOTE CONTROL

PLACING BATTERY

Use a CR2025 battery for remote control.

PLACING BATTERY

CONNECTION

Synchronizing of FM Transmitter and Autostereo

  1. Connect the transmitter to the car cigarette lighter.
  2. Turn on the car and the autostereo. Tune on a free FM radio frequency. Once you have selected the radio station, tune it on the same in to the transmitter pressing the button and then the buttons or press on the remote control.

Bluetooth Pairing

  1. Activate the Bluetooth mode in your device.

    You can pair a smartphone, ipod, PC, etc. with Bluetooth
  2. Search the Steren Steren FMT-845 transmitter and select it.

    If pairing has been successful, you will hear the message:
    The bluetooth device is connected as succesfully

Each time that you turn on the transmitter, it will connect automatically to the last paired device. If you want to pair a new device, you need to unpair the previous device.

Auxiliary

  1. Connect a 3.5 mm auxiliary cable to the auxiliary input of the transmitter and into the device.
    CONNECTION - Auxiliary
  2. Start playing music from your device.

HOW TO USE

Playing music

warning Before to start playing music, make sure to lower the volume level in your device.

Bluetooth
Playing music - Bluetooth

USB/Micro SD Memory

  1. Insert the USB or micro SD memory into the transmitter.
  2. Control playback:
    Playing music - USB/Micro SD Memory

Hands free
danger
Availability of these functions may vary depending on the model of your mobile device.

Playing music - Hands free

The hands free function only operates in the Bluetooth mode.

SPECIFICATIONS

Specifications may vary with out previous notice

Input: 12 V
USB output: 5 V2.1 A
Frequency transmission range: 87.5 to 108 MHz
Operating temperature: 0°C to 50°C
Frequency response: 20 Hz to 15 kHz

Product: Bluetooth hands free and FM audio transmitter
Part number: FMT-845
Brand: Steren

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

  1. This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
  2. If the product is in the warranty time, the company will repair it free of charge.
  3. The repairing time will not exceed 30 natural days, from the day the claim was received.
  4. Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:
If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

  1. The consumer can also claim the warranty service in the purchase establishment.
  2. If you lose the warranty card, we can reissue it, if you show the invoice or purchase ticket.

RETAILER INFORMATION
Name of the retailer:
Address:
Product:
Brand:


01 800 500 9000
