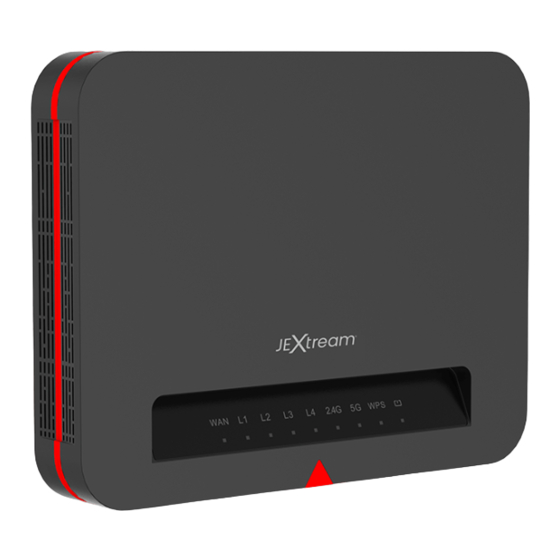

Franklin Wireless FX20 User Manual

Jextream ax1800 wireless wi-fi 6 router
Hide thumbs Also See for FX20:
Table of Contents

Advertisement

Quick Links

Download this manual
FX20 Wi-Fi 6 Router
FX20 WIRELESS ROUTER
USER MANUAL
JEXtream AX1800
Franklin Wireless Corp
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX20 and is the answer not in the manual?

Questions and answers

Related Manuals for Franklin Wireless FX20

Summary of Contents for Franklin Wireless FX20

  • Page 1 FX20 Wi-Fi 6 Router FX20 WIRELESS ROUTER USER MANUAL JEXtream AX1800 Franklin Wireless Corp...

  • Page 2: Table Of Contents

    FX20 Wi-Fi 6 Router Table of Contents Introduction ..............................3 Before You Begin ..........................3 Router Setup ..............................4 Parts and Functions ..........................4 This box contains ..........................5 Router Overview ..........................5 Front Panel LED ..........................7 Rear Panel Button and Connector ....................... 8 Basic Connection ............................

  • Page 3: Introduction

    FX20 Wi-Fi 6 Router Introduction The following topics describe the basics of using this guide and your Wi-Fi router. Before You Begin Thank you for purchasing your new Jextream Wi-Fi 6 router! The following topics explain how best to use this guide to get the most out of your mobile broadband device.

  • Page 4: Router Setup

    The FX20 Wi-Fi 6 Router delivers better performance by ensuring more available bandwidth with less congestion for all connected devices on network. With FX20’s Wi-Fi 6 capacity, it allows more users and devices to connect to the network at the same time without impacting speed or reliability.

  • Page 5: This Box Contains

    FX20 Wi-Fi 6 Router This Box Contains Your package contains the following items: Router Overview The following numbers on Front and Rear panels indicate interface detail:...
  • Page 6 FX20 Wi-Fi 6 Router Attach Stand Attach the stand to the router by lining up and inserting the stand’s bolts to the bottom bolt holes of the device. Then push up to lock: Turn on the Device Plug DC charger to device, then connect to wall. The device should automatically turn on.

  • Page 7: Front Panel Led

    FX20 Wi-Fi 6 Router Front Panel LED The following table describes the LED indicators that is located on the router front view and bottom. : Router Bottom and Front View Description • Solid amber – The router detected an Ethernet cable connection to the modem.

  • Page 8: Rear Panel Button And Connector

    FX20 Wi-Fi 6 Router Description • Blinking amber – Pressing the WPS button on the Rear side for a few seconds, this LED is blinking during this process, and let your device can join this Wi-Fi network without typing the Wi-Fi password.

  • Page 9: Basic Connection

    FX20 Wi-Fi 6 Router Basic Connection The following topics give you all the information you need to set up your device and wireless service for the first time. Connect to ISP Modem Connect the router to your modem with RJ-45 cable to WAN port: 1.

  • Page 10: Connect To Ethernet Cable

    FX20 Wi-Fi 6 Router 5. Configure with your ISP modem a. To connect to an ISP, you need a modem and an active account. b. Make certain the ISP modem had already provided DSL Broadband Service (PPPoE). c. Login to Web Admin page, go to Internet > IP Settings.
  • Page 11 FX20 Wi-Fi 6 Router 1. Place your router near the center of the area where your computers and other devices operate, and within line of sight to your wireless devices. 2. Make sure that the router is within reach of an AC power outlet and near Ethernet cables for wired computers.

  • Page 12: Connect Device

    FX20 Wi-Fi 6 Router Connect Device The following topics give you all the information you need to set up your device and wireless service for the first time. Connect the Device via LAN You can connect your computer to the router using an Ethernet cable and join the router’s local area network (LAN).

  • Page 13: Settings

    FX20 Wi-Fi 6 Router Settings The following topics provide an overview of items you can change using the device’s setting menu accessed through the router’s Web UI. Web UI Overview Once you log in to your router, and you can use the router’s Web UI in a browser to check or change the basic settings.
  • Page 14 FX20 Wi-Fi 6 Router Configure IP Setting and DHCP Server. IP Settings By default, the router sets on a DHCP(Dynamic Host Configuration Protocol) server, and the router assigns IPv4 address, IPv6 address, and default gateway addresses to the device which is connected through the LAN.
  • Page 15 FX20 Wi-Fi 6 Router 1. To set up an IPv4 address on LAN IP Address: The LAN IP address of your router. Subnet Mask: The subnet mask associated with the LAN IP address. Subnet Mask is usually 255.255.255.0. 2. To set up an IPv6 address on LAN Link-Local Address Mode Auto: It is the default setting.
  • Page 16 FX20 Wi-Fi 6 Router § Static: Configure another DNS IPv6 address provided by your ISP. If your ISP gives you one or two DNS IPv6 addresses, enter IPv6 Primary and Secondary DNS server address manually. IPv6 Prefix Mode: IPv6 address prefix of subnet hosts.

  • Page 17: Wireless

    FX20 Wi-Fi 6 Router DHCP Server By default, the router sets on a DHCP (Dynamic Host Configuration Protocol) server, and the router assigns IP, DNS server, and default gateway addresses to the device which is connected through the LAN. The assigned default gateway address is the LAN address.
  • Page 18 FX20 Wi-Fi 6 Router Set the Basic Settings for your device. ■ From the Web UI, click Wireless > Basic Settings to display the basic wireless network parameters. Note: The preset SSID and password are uniquely generated for every device to protect and maximize your wireless security.
  • Page 19 FX20 Wi-Fi 6 Router 1. SSID Name: Service Set Identifier (SSID). To change it, enter a string less than 32 characters as the name for your wireless local area network (WLAN). 2. Password: To change, enter the new Wi-Fi password. The password needs to be at least 8 characters long.
  • Page 20 FX20 Wi-Fi 6 Router 6. Save Changes: Make sure to click Save Changes after you set your desired settings. Advanced Settings Set the Basic Settings for your device. ■ From the Web UI, click Wireless > Advanced Settings to display the advance wireless network parameters.
  • Page 21 FX20 Wi-Fi 6 Router Easy Mesh (Controller Host Role) The router supports the EasyMesh Controller as a Host Role. By default, the EasyMesh feature is turned OFF on the router. To enable the EasyMesh feature, you can turn it on from the EasyMesh menu of the WebUI.
  • Page 22 FX20 Wi-Fi 6 Router 1. EasyMesh Configuration: Click on the Controller Host Role to Enable the Mesh network a. Controller Host Role: EashMesh Controller activation on/off. b. Device Name: Set an arbitrary device name for the controller which will be used to represent this device at the TOPOLOGY tab later on.

  • Page 23: Internet

    FX20 Wi-Fi 6 Router WPS Settings WPS (Wi-Fi Protected Setup) provides an easier way to set up a security-protected Wi-Fi connection without typing the Wi-Fi password. Set the WPS settings for your device. ■ From the Web UI, click Wireless > WPS to display the advance wireless network parameters.
  • Page 24 FX20 Wi-Fi 6 Router ■ From the Web UI, click Internet > WAN Connections to display the IPv4 and IPv6 parameters to the internet connection. 1. IPv4 – IP Settings: If your network environment is unusual or if you are network expert, you can change following settings.
  • Page 25 FX20 Wi-Fi 6 Router i. IP Address: Enter the IP address in dotted-decimal notation provided by your ISP. ii. Subnet Mask: Enter the subnet mask in dotted-decimal notation provided by your ISP. Normally 255.255.255.0 is used as the subnet mask.
  • Page 26 FX20 Wi-Fi 6 Router a. Address Mode – Stateless DHCPv6(SLAAC): This is the default setting. Selecting “SLAAC(Stateless address auto-configuration)” address mode will assign an IPv6 address from your ISP. b. Address Mode – Static: Select “Static” address mode if your ISP provides a static or fixed IPv6 address, default gateway and DNS setting.
  • Page 27 FX20 Wi-Fi 6 Router more information to LAN devices, but some IPv6 systems might not support the DHCPv6 client function. b. Off: Select OFF to disable the DHCPv6 Prefix Delegation. 4. Auto DNS: a. On: Select ON to enable the automate IPv6 DNS server address from your ISP.
  • Page 28 FX20 Wi-Fi 6 Router 1. OFF or ON of DDNS service. Select the ON radio button to enable it. 2. Service: In the Service field. Select the DNS service provider in the list, such as DynDNS.org, tzo.com, and noip.com. 3. Domain: Type the domain name that you want to use for your URL. Your free URL includes the domain name that you specify.

  • Page 29: Forwarding

    FX20 Wi-Fi 6 Router 1. OFF or ON of IGMP service. Select the ON radio button to enable it. 2. Save Changes: Make sure to click Save Changes after you set your desired settings. Forwarding Configure Forwarding Settings: The router can forward incoming traffic with specific protocols to computers on your local network.
  • Page 30 FX20 Wi-Fi 6 Router 1. OFF or ON of Port Forwarding service. Select the ON radio button to enable it. 2. Add: Click “Add” button to create a Port Forwarding rule with a custom service or application. a. Name: Enter a rule name b.
  • Page 31 FX20 Wi-Fi 6 Router 1. OFF or ON of UPnP function. Select the ON radio button to enable it. If the UPnP is turned Off by default, the router does not allow any device to automatically control router resources, such as port forwarding. When you turn on UPnP, this is commonly referred to as opening a port.
  • Page 32 FX20 Wi-Fi 6 Router 1. OFF or ON of DMZ function. Select the ON radio button to enable it. a. DMZ Host IP Address: Type the IP address to enable a default DMZ server. The router can forward the traffic to the DMZ server on your network.

  • Page 33: Security

    FX20 Wi-Fi 6 Router 1. OFF or ON of VPN function. Select the ON radio button to enable it. 2. Save Changes: Make sure to click Save Changes after you set your desired settings. Security Configure Security: The router can help protect your home network from unwanted intrusions from the internet.
  • Page 34 FX20 Wi-Fi 6 Router 1. OFF or ON of Access Control function. Select the Blocked List radio button to enable it. Select the Blocked List that will block all new devices from your wireless connection. With this setting, before a new device can access your network, you must enter its device’s MAC address which is coming from an Ethernet connection or Wi-Fi connection.
  • Page 35 FX20 Wi-Fi 6 Router Contents Filtering The Contents Filtering can block certain Internet sites from your network. You can use this feature all the time or based on a schedule. ■ From the Web UI, click Security > Contents Filtering to display the parameters.
  • Page 36 FX20 Wi-Fi 6 Router URL Filtering The URL Filtering can block certain Internet sites from your network. ■ From the Web UI, click Security > URL Filtering to display the parameters. 1. OFF or ON of Blocked List function. Select the ON radio button to enable it.
  • Page 37 FX20 Wi-Fi 6 Router 1. Service Filtering: This setting can be changed to block your normal internet. Select “OFF” to disable service filtering Select the “Allowed Service List” item to allow a specific service. Select the “Disallowed Service List” item to disallow a specific service.

  • Page 38: System Tools

    FX20 Wi-Fi 6 Router 7. Protocol: Enter Protocol type (TCP, UDP, TPC+UDP) 8. Options: OK / CANCEL / DELETE a rule which you edit. 9. Save Changes: Make sure to click Save Changes after you set your desired settings. System Tools Configure System Tools.
  • Page 39 4. Save Changes: Make sure to click Save Changes after you set your desired settings. Firmware Upgrade Upgrade your router with the latest firmware. You can download the latest firmware from Jextream web site (https://www.jextream.net/support/fx20-support) or click the “Check” button to get the latest firmware file automatically. ■...
  • Page 40 FX20 Wi-Fi 6 Router 1. Current Firmware Version: Display the current firmware information. 2. Upload Firmware: Click the “Upload Firmware” button to select a specific located firmware file. 3. Auto Update: Schedule to upgrade a new firmware. If the “Check Every 30 Days” item is selected, your router will check the new firmware every 30 days and upgrade the firmware to the latest version.
  • Page 41 FX20 Wi-Fi 6 Router 1. Download Backup: Download backup file to restore your router setting. 2. Restore from Backup: Restore your router setting from backup file. 3. Restore Device to Factory Defaults: Restore all user settings to default router settings.
  • Page 42 FX20 Wi-Fi 6 Router 1. System Log Enable/Disable: Enable/Disable the system log of your router. 2. Save Changes: Make sure to click Save Changes after you set your desired settings. 3. Refresh: Refresh the page to show the latest system log.

  • Page 43: Appendix

    FX20 Wi-Fi 6 Router Appendix The following topics cover items such as troubleshooting, device specifications, applicable warranty and service information, customer service contacts, and applicable trademark and copyright notices. Troubleshooting Check below for troubleshooting solutions for common device issues. Check here first Issue: Ethernet Cable Connection Solution 1: Check the Ethernet cables are securely plugged in.
  • Page 44 FX20 Wi-Fi 6 Router You can configure your computer manually with DNS addresses, as explained in your operating system documentation. If your computer obtains its information from the router, reboot your computer, and verify the IP address. Issue: Troubleshooting Internet Connection using PPPoE If you are using PPPoE, try troubleshooting your Internet connection.

  • Page 45: Specifications

    FX20 Wi-Fi 6 Router Specifications The following tables list the specifications for the mobile broadband device, the AC charger, and the materials. Default Settings Item Default behavior Login Login URL http://router.jextream.net Login Password Password Internet IPv4 – IP Setting Automatic IP(DHCP/IPoE) IPv4 –...
  • Page 46 FX20 Wi-Fi 6 Router Item Default behavior Port Forwarding Security Access Control Contents Filtering URL Filtering Service Filtering Router Specifications Item Description Model name FX20 Wi-Fi 6 Router Dimensions W 210 x L 164 x 62 T mm Weight 451g Operating Temperature -10°C ~ + 50°C...
  • Page 47 FX20 Wi-Fi 6 Router AC Charger Specifications Item Description Rated input voltage 100-240Vac Operating range 90-264Vac Rated input frequency 50/60Hz +/- 3Hz Nominal dc output voltage +5.0V (±5%) Rating load current 2.0A Materials Specifications Parts Materials/Finishing A cover PC(Black),SF coating...

  • Page 48: Warranty And Service

    The names of companies, products, and services used in this guide are registered trademarks or trademarks of the respective companies. Jextream logo is trademarks or registered trademarks of Franklin Wireless Corporation in US. Copyright © 2022 Franklin Wireless Corporation. All rights reserved.

  • Page 49: Fcc Compliance

    FX20 Wi-Fi 6 Router FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
