Lumi-Link Command Center - Setup and User Guide
First Time use...
When first installed the system needs to be setup. Setup is a quick and easy process and is only performed upon initial
installation or after a system SD card change.
Setup discovers lights that are attached to the network and allows the user to select between a Single Zone or Multi
Zone mode display.
Underwater lights can be setup as a "Single Zone" or as a "Multi Zone"
For underwater and above water installations choose Multi Zone mode as per the following examples.
Configuration Examples...

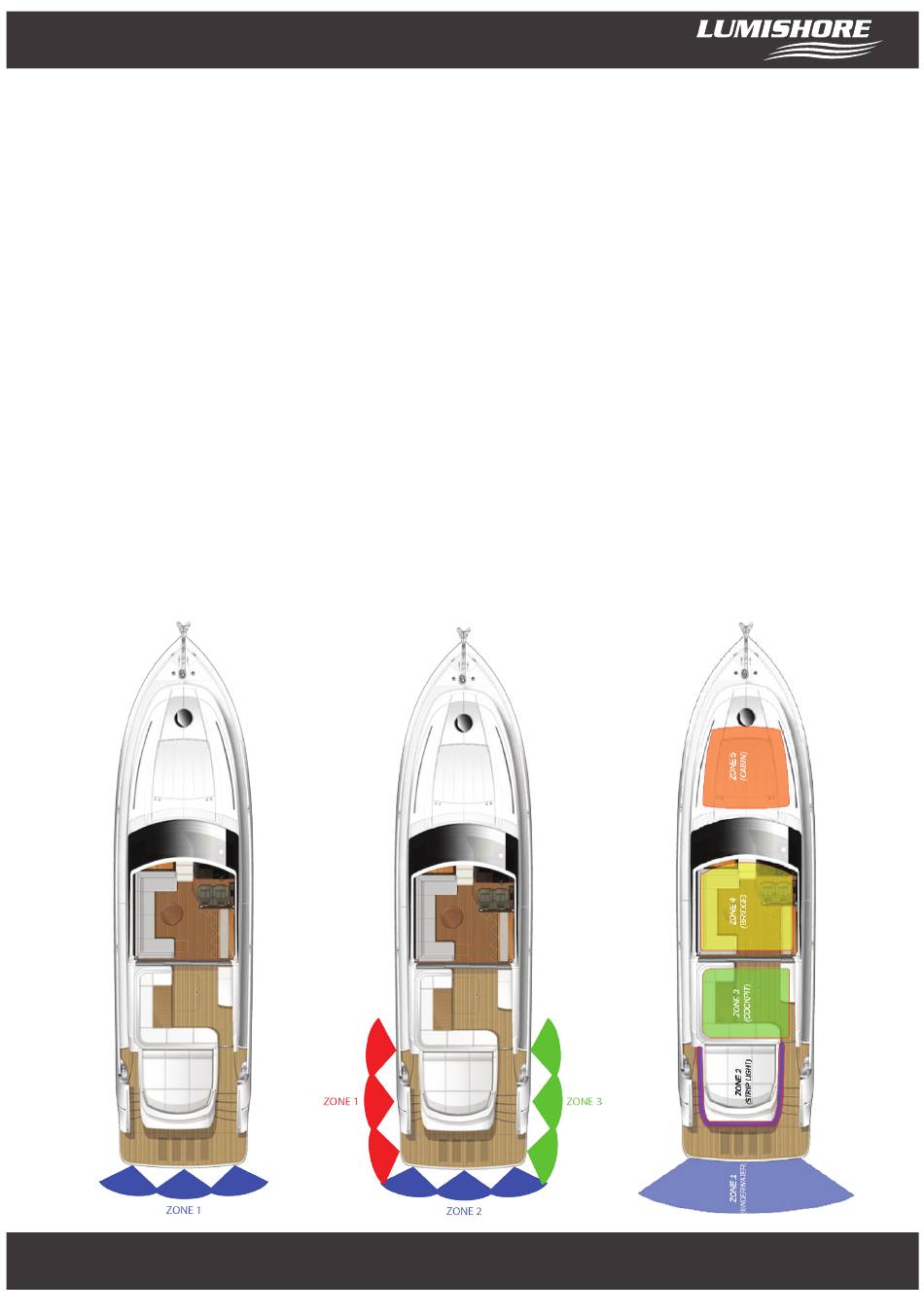

Example 1; Single Zone – UW lights only
