ITEM# 85650

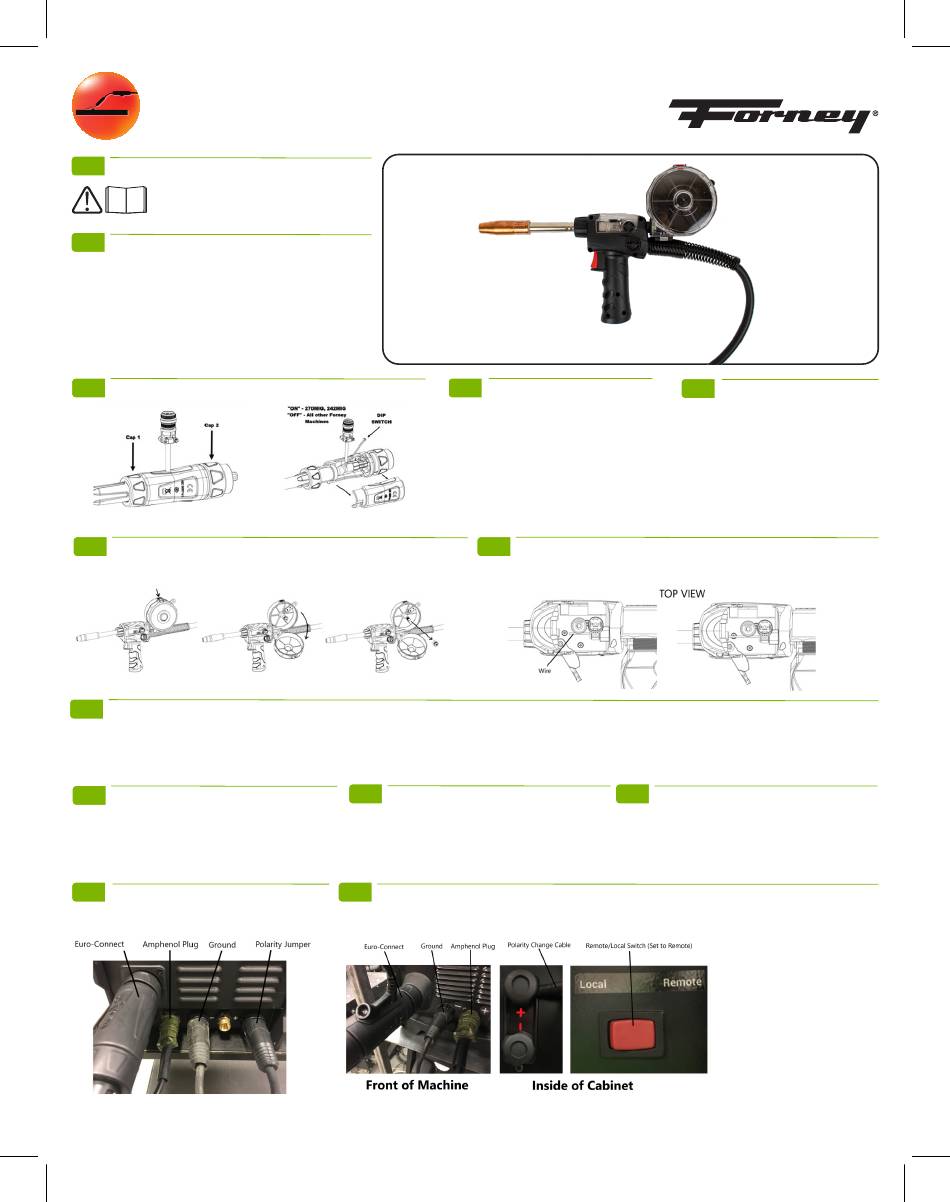

SPOOL GUN QUICK START GUIDE
250 MULTI-MACHINE SPOOL GUN
1.
Read user manual
2.
Machine selection
Open the back-end housing on the power
cable of the spool gun by turning each of the
end caps (cap 1 and cap 2) counterclockwise.
This will allow half of the housing to be
removed.
2B.
3A.
Install a fresh spool of welding wire into the spool
compartment.
3C.
Close and apply tension to the wire feed mechanism. Ensure that the wire is feeding through the bottom groove of the drive roller.
NOTE: More tension is not better! Apply just enough wire feed tension to keep the wire feeding smoothly and continuously.
4.
Machine setup.
4C.
Forney
220 MP:
®
2C.
Inside of the housing, you will find
a small DIP switch. If using a
Forney 270 MIG or 242 Dual MIG,
set the switch to the "On" position.
Set the switch to the "Off" position
for use with all other Forney
machines.
3B.
Guide the free end of the welding wire through the wire feed
mechanism.
4A.
If using a Forney multi-process (MP)
machine, ensure process selector is set
to "MIG".
4D.
Forney
190 MP:
®
2D.
Re-assemble and close the
back-end housing.
4B.
MIG welding aluminum is a DCEP+
process.
