Summary of Contents for Ebbe INNI E6100-25

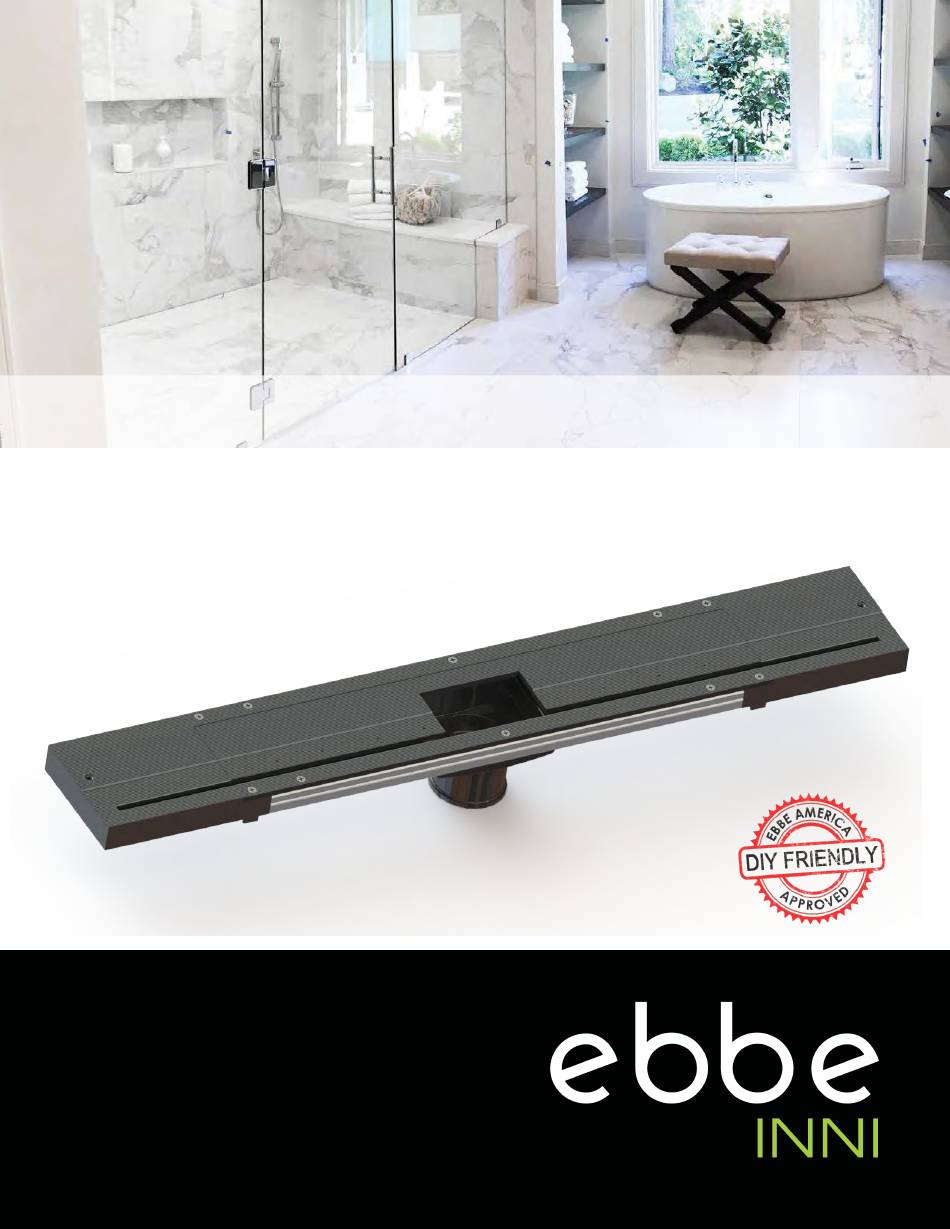

- Page 1 INSTALLATION INSTRUCTIONS E6100-25, E6100-38, E6100-50...
-
Page 2: Table Of Contents
Complies with 2015, 2012, 2009 and 2006 (IRC) (IPC) (UPC) codes, and 2015 and 2010 (NPC) code. Patents: US14626581, US15192379, US1549663 Visit www.ebbe-america.com Or go to ebbe America on YouTube for installation videos. 801-820-7200 Hours: M-F 9AM -5PM MST Orders@ebbe-america.com IMPORTANT: Always obtain approval from local code official before installation. -
Page 3: Inni Parts List
• Custom cutting and assembling the INNI to fit your shower. • Water testing the assembled INNI to ensure no water leaks • Installing the Trim to create a clean, finished look All Rights Rights Reserved © Ebbe America 2020... -
Page 4: Inni Drain Terminology
The area highlighted in red is the “Collector.” A 4”x6”rectangular hole needs to be made through the subfloor so the Drain Body can sit flat on the subfloor. Drain Outlet fits over 2” ABS waste pipe DRAIN BODY DRAIN BODY For more information visit ebbe-america.com... -
Page 5: Choose And Prep The Installation Location
Drain pipe center based on 1/2” Wallboard and 3/8” thick wall tile. Adjust as needed for different tile thickness so the face of wall tile aligns with Drain Channel side face of INNI DRAIN Access cover. All Rights Rights Reserved © Ebbe America 2020... -
Page 6: Cutting The Inni To Size
After cutting, de-burr parts, dry-fit the however, make sure cuts made to the Drain Body and End Sweeps together and Drain Body are NEAT and SQUARE. verify the assembly fits the space. Adjust as needed. For more information visit ebbe-america.com... -
Page 7: Assembling The Inni
Drain Body Cut Support Rib Bond Left and Right Transition Ramps into End Sweeps Bond the Ramps into the End Sweeps using the Squeeze Bottle and ABS cement. Clean off any excess cement. All Rights Rights Reserved © Ebbe America 2020... - Page 8 2. Attach Left and Right End Sweeps Drill First, Then Countersink for Screws 1. Use the Drill Guide and Drill Bit to create holes at the four corners of the Drain Body. The drilled holes must align precisely with the pilot holes in the End Sweep. 2.
- Page 9 Install the End Sweep Deck: Apply ABS cement to the top of the curved Push the Deck into position. When fully Rib and Support Ribs as shown. seated, the Deck should sit flush with the surrounding surfaces. For more information visit ebbe-america.com...
- Page 10 Drain Body and Rails. Screws should be roughly placed at each end and center of both Rails. Do not over-tighten the Screws. Drill Guide Countersink Guide Congratulations! Assembly is complete. All Rights Rights Reserved © Ebbe America 2020...
-
Page 11: Water Testing The Inni
Best practice is to leave the INNI filled for a minimum of one hour. If any leaks are found, repair leaking areas with ABS cement. Repeat until there are no leaks. Remove Test Ball before installation. For more information visit ebbe-america.com... -
Page 12: Installing The Inni
The INNI can be used in a hot mop and mortar bed application with the addition of the Hot Mop Receptor Kit. Install the Receptor , then simply slip the INNI and Weep Collar into the Receptor. The mortar bed will surround and support the INNI. (See pg. 19) All Rights Rights Reserved © Ebbe America 2020... -
Page 13: Create Slope And Waterproof Shower
After installing the wall tile backer, waterproof the entire shower with a fluid applied or sheet waterproofing membrane per manufacturers recommendations. Water test the shower floor for several hours. Install desired trim, and begin tile installation. For more information visit ebbe-america.com... -
Page 14: Access Cover Install - Large Tile
NOTICE: Use the supplied Wax Stick to wax the Access Cover tray. Waxing the Cover prevents accidental bonding of mortar or adhesive. It also prevents mineral build up and aids in future removal. For more information visit ebbe-america.com... -
Page 15: Access Cover Install - Small Tile
Access Cover Tray. Waxing the cover prevents detents catch the Access Cover accidental bonding of mortar or adhesive. It also Frame. Push the cover down prevents mineral build up and aids in future until flush. removal. For more information visit ebbe-america.com... -
Page 16: In-Shadow Installation Details
** PLEASE NOTE: When cutting Trim to desired length it is best practice to place all cut edges at the outer ends of the INNI. This will allow factory edges to butt together when using multiple Trim pieces. All Rights Rights Reserved © Ebbe America 2020... -
Page 17: At-Wall Installation Details
AT-WALL INSTALLATION DETAILS IN-SHADOW INSTALLATION DETAILS At-Wall installation leaves the Drain Channel visible from above. The wall tile extends down to meet the top of the drain and aligns with the back face of the Drain Channel. Four pieces of In-Sight Trim are included with E6100-25, E6100-38, E6100-50 kits. FOAM BACKER ROD TILE FLUSH WITH DRAIN CHANNEL... -
Page 18: In-Sight Installation Details
** PLEASE NOTE: When cutting Trim to desired length it is best practice to place all cut edges at the outer ends of the INNI. This will allow factory edges to be butt together when using multiple Trim pieces. All Rights Rights Reserved © Ebbe America 2020... -
Page 19: Inni Accessories
INNI ACCESSORIES Visit ebbe-america.com for INN accessories or scan the QR codes INNI Cleaning Brush Kit. Specifically designed and manufactured to quickly clean all interior surfaces of the INNI drain. Custom sized for your INNI. INNI Drain Coupler Kit: Attach multiple INNI together. -
Page 20: Inni Care And Maintainence Guide
• To purchase the brushes, follow the QR link or go to: • Avoid overly acidic ebbe-america.com. We will custom cut the brushes or basic cleaners. to fit your INNI. 1. Remove the Access Cover by pushing down on the black tab at the center of the Access Cover with a screwdriver, putty knife, or similar tool. - Page 21 Drain Channel until the ball 7. Before re-installing the Access Cover apply detents catch the Access Cover Frame. Push wax or petroleum jelly around perimeter to the cover down until flush. aid in future removal. For more information visit ebbe-america.com...
-
Page 22: Tools And Supplies Needed For Install
Power Drill Saw or Tile Saw At Least 4oz of ABS Tape Measure Cement Fiberglass Mesh Urethane Sealant & Tape Caulk Gun Utility Knife Polymer Modified Thinset Min 3/8 x 3/8 Spirit Level Square Notched Trowel For more information visit ebbe-america.com...
