VigilLink VLHA-REXD User Manual

Hdmi 2.0 arc audio extractor with downmix

Advertisement

Quick Links

VLHA-REXD
HDMI 2.0 ARC Audio Extractor with Downmix
VER 1.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLHA-REXD and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLHA-REXD

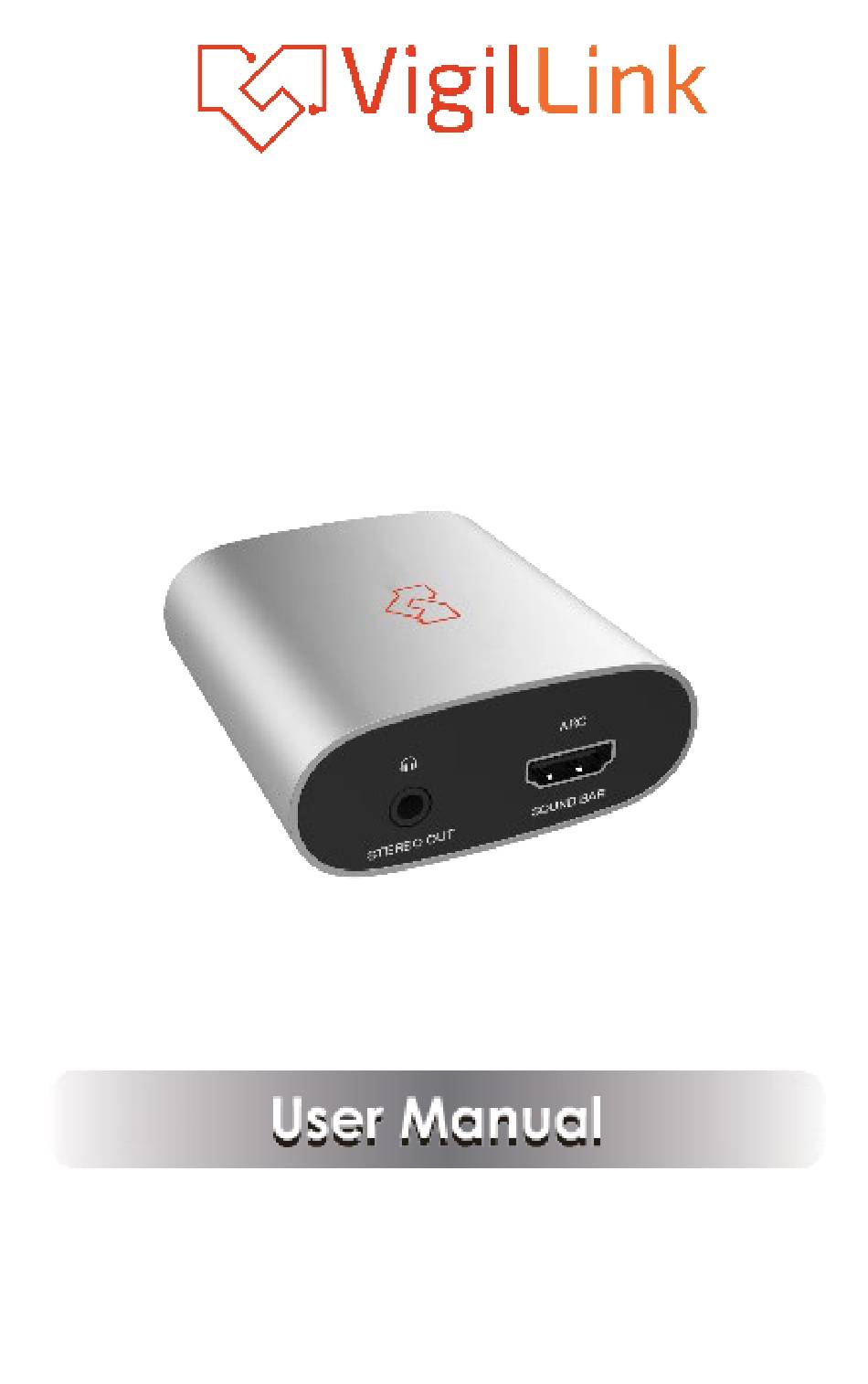

  • Page 1 VLHA-REXD HDMI 2.0 ARC Audio Extractor with Downmix VER 1.02...
  • Page 2 Thank you for purchasing this product Please read these instructions carefully optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc.
  • Page 3 1. Introduction The HDMI ARC audio down-mixer can extract the audio signal from ARC-enabled HDTV to 2-channel analog stereo audio output for audio receiver/ amplifier/ headphone applications. It supports PCM2.0/ Dolby5.1/DTS5.1 audio down-mixing. The TV remote can control the volume via the CEC function.
  • Page 4 2. Features ☆ HDMI 1.3 compliant ☆ Input: HDMI x 1; Output: 3.5mm L/R x1, RCA x 2 ☆ ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analog stereo output for audio receiver/amplifier/headphone applications ☆ Supports PCM 2.0, Dolby 5.1, DTS 5.1 audio Down-mix to 2-channel stereo audio output ☆...
  • Page 5 4. Specifications Technical HDMI Compliance HDMI 1.3 or above Vmax 2Vrms >90dB <0.1%(V max) THD+N Ratio 0.001%~0.01%(V best) Crosstalk >80dB Frequency Response 20Hz~20kHz±1dB HDMI Audio Formats PCM 2.0, Dolby 5.1, DTS 5.1 L/R Audio Formats Analog Stereo 2CH Connection 1x HDMI Type A [19-pin female] Inputs 1×Micro USB 1x L/R Audio Out [RCA]...
  • Page 6 5. Operation Controls and Functions 5.1 Left Panel Name Function Description When the device is powered Power LED on, a red LED will be on. DC 5V power supply port. DC 5V Red illuminate: PCM decoding Audio or No signal Decoding Red blinking: Dolby decoding Green blinking: DTS decoding...
  • Page 7 5.2 Right Panel Name Function Description 3.5mm stereo audio output port. Stereo Connect to headphones or AUDIO OUT amplifier. RCA audio output port. Connect AUDIO OUT to amplifier or speaker.
  • Page 8 6. Application Example...
