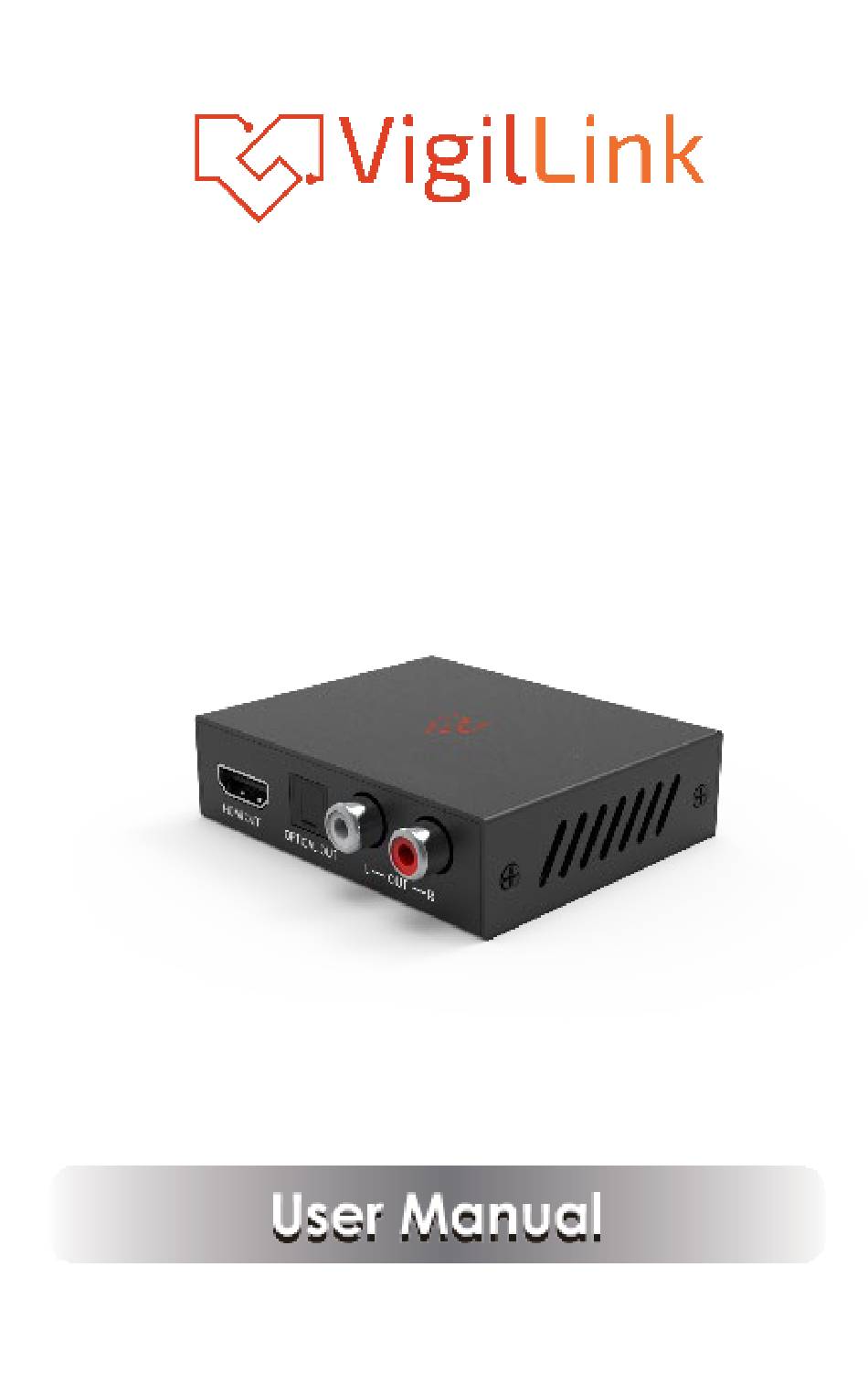

- Page 1 VLHA-DWM HDMI 2.0 Audio Downmixer 18Gbps VER 1.02...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. -
Page 3: Introduction
1. Introduction The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. This audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through for maximum flexibility. -
Page 4: Features
For DTS patents, see http://patents.dts.com. It is manufactured under a license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved. -
Page 5: Package Contents
3. Package Contents ① 1× HDMI 18Gbps Audio Extractor ② 1× 5V/1A Power Adapter ③ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, Video Resolutions and 1080P 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2... - Page 6 Connections Inputs 1x HDMI Type A [19-pin female] 1x HDMI Type A [19-pin female] 1x L/R Audio Out [RCA] Outputs 1x Optical Out [S/PDIF] Mechanical Housing Metal Enclosure Color Black 73.5mm[W] x 60.7mm[D] x Dimensions 20mm[H] Weight 135g Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU Power Supply standards, CE/FCC/UL certified)
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel Number Name Function Description Connect 5V/1A adapter to AC DC 5V wall outlet for power supply. Power LED System power indicator. The user allows selecting audio format according to Copy TV, Bitstream, or 2CH. TV: Copy EDID from TV. -
Page 8: Rear Panel
5.2 Rear Panel Number Name Function Description HDMI output for display HDMI OUT connectivity. OPTICAL Toslink digital audio output (mirrors HDMI). Stereo RCA analog audio R/L OUT output. -
Page 9: Application Example
6. Application Example...
