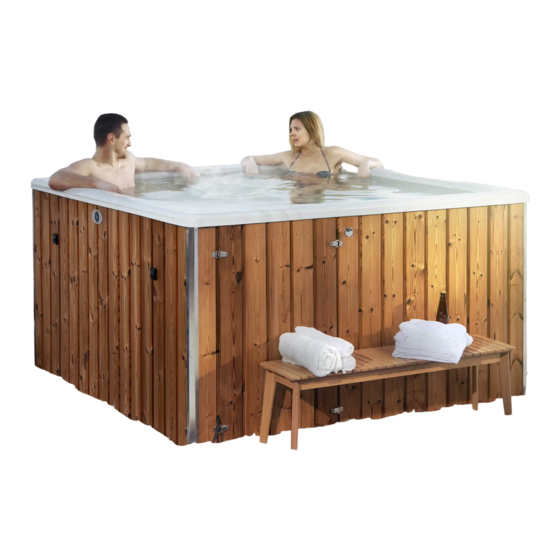

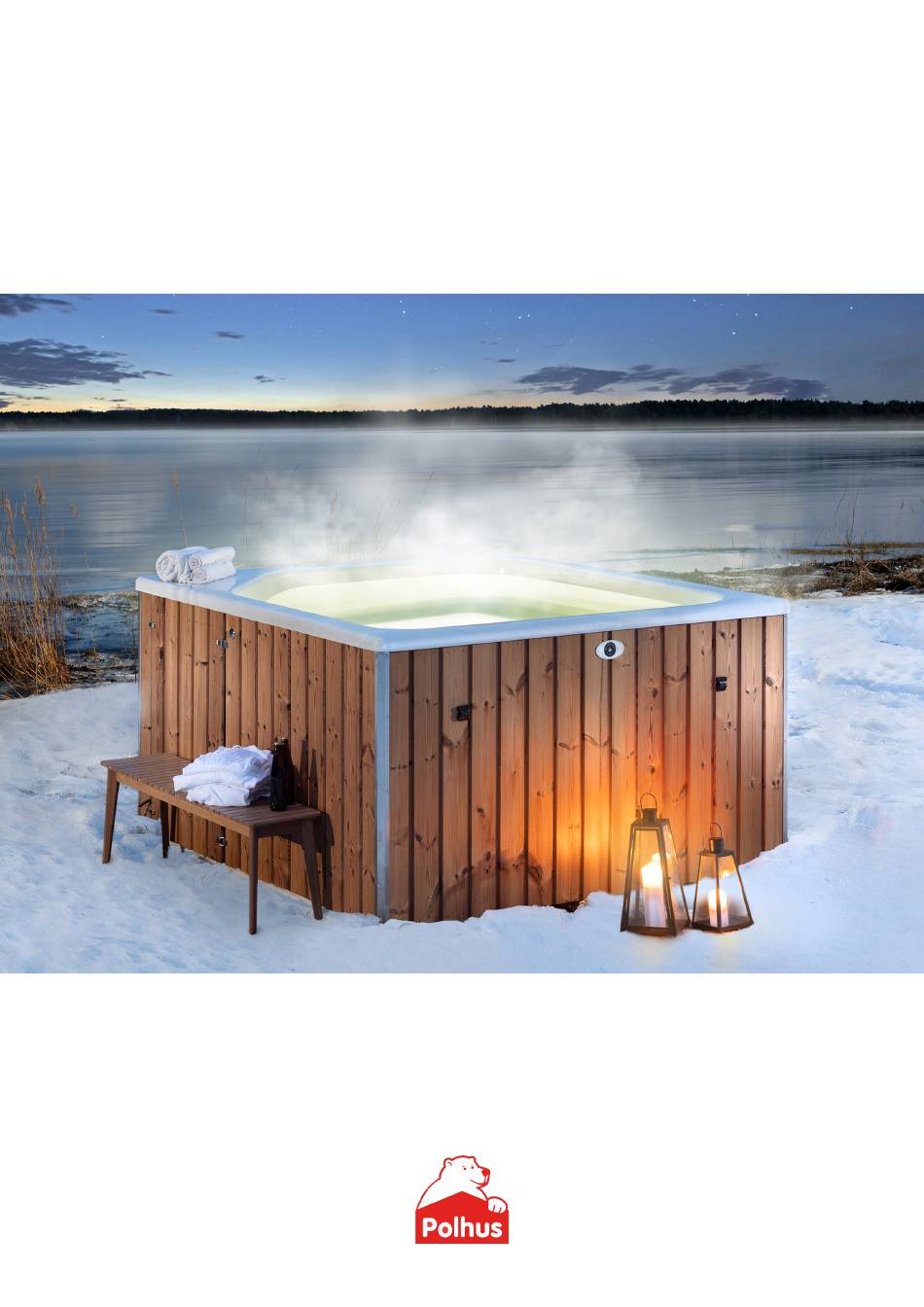

- Page 1 Polar hot tub Elegante Hot tub with electric heating Specifications & instructions...
-
Page 2: Table Of Contents
Contents 1 General information 1.1 Symbols 1.2 Definitions 1.3 Warnings 2 Area of use 3 Transport and assembly 3.1 Transport 3.2 Assembly 4 Usage 5 Other hazards 6 Maintenance 7 Warranty... -
Page 3: General Information
1. General information This manual contains information about the area of use, handling, transport, assembly, usage and maintenance. When using and maintaining the product one should refer to this manual. Weight without water: 240 kg Total weight including water: 1890 kg Capacity: 1650 l The total weight does not include the weight of people bathing in the tub. -
Page 4: Definitions
• Operator – The person who’s responsible for the transport, handling, assembly or maintenance of the product. • Warranty – The time post sale when Polhus is responsible for the product’s technical condition. The warranty period is 36 months post purchase, except for the parts which have a 24 months warranty. -
Page 5: Warnings
(in addition to the contents of this manual) to ensure the users safety and the validity of the warranty. The warranty does not apply if the buyer has changed the construction of the product or used non-original parts without Polhus approval. If you have any questions regarding this manual please contact Polhus. -
Page 6: Area Of Use
2. Area of use This hot tub is suitable for outdoor use all year round. The water in the tub can be heated with an electric heater. We have a seperate manual for the electric heater. This is not covered in this manual. Use of the product other than for its intended purpose is prohibited. -
Page 7: Transport And Assembly
3. Transport and assembly 3.1 Transport The hot tub is transported on a pallet, standing on one side. Before opening the package you should inspect it to make sure it hasn’t been damaged during transport. If you discover any damage, you should indicate this on the transport document (CMR). -
Page 8: Assembly
3.2 Assembly When you’ve opened the package you should check that all of the parts shown in picture 1 are there. If anything is missing please register this as a claim on our website. The package includes the following parts: 1. - Page 9 Parts for the hot tub: 1. Opening/entry for filter and heating system 2. Opening/exit for filter and heating system 3. LED lights 4. Opening to drain for water Figure 2: Parts for the hot tub...
- Page 10 Correct mounting sequence: 1. Remove the cardboard and plastic packaging from the different parts. 2. Prepare a flat and hard surface and place the hot tub there 3. Remove the equipment cabinet door. Unscrew the round screws in the lower corner of the cover (shown with an arrow in Figure 3) and lift the cover off.
- Page 11 The parts of the equipment cabinet (shown in figure 4 and 5) 1. Opening/entry for filter and heating system 2. Opening/exit for filter and heating system 3. Metal bracket for electrical heater 4. Control panel for LED lights 5. 230V power outlets (3 pcs) 6.
- Page 12 Figure 5. Contents of the equipment cabinet The power supply to the equipment cabinet as shown in Figure 5 must be provided by a qualified electrician. The electrical part of the installation must be carried out in accordance with the applicable regulations and standards.
- Page 13 Figure 6: Mounting the short hose and filtersystem 1. Attach a short hose to the opening/entry for the filter and heating system and tighten the clamp. 2. Mount the filter system in the equipment cabinet according to figure 6. Refer to the Filter system manual when installing it. The mounting base for the filter system is not necessary when placing it in the equipment cabinet.
- Page 14 3. Connect the electric heater to the short hose you already mounted and tighten the clamp. Attach it to the metal bracket. Refer to the Electric Heater Manual when mounting the electric heater. Figure 7: Mounting the electric heater...
- Page 15 4. Install the pumping system in the equipment cabinet according to figure 8. When installing the pumping system, refer to the pumping system manual. Figure 8: Installing the pumping system...
- Page 16 5. Mount the rest of the hoses according to figure 9 and tighten the clamps. 6. Connecting the electric heater and pumping system to the sockets in the equipment cabinet (see figure 5). 7. Mount the door to the equipment cabinet and fasten the screws. 8.
-
Page 17: Usage
4. Usage Before using the hot tub, please read this instruction and check the following points: 1. Check that the installation has been carried out correctly (according to these instructions) 2. Before switching on the equipment, check that the water in the hot tub is at least 5 cm above the opening/entry to the filter and heating system (top opening). - Page 18 In winter, do not let the water freeze in equipment or hoses. CAREFUL! Using chlorine or other chemicals not approved by Polhus may void the warranty. CAREFUL! Improper maintenance or use may void the warranty.
-
Page 19: Other Hazards
5. Other hazards Other hazards are risks that remain after the product’s safety measures have been put into use. DANGER! Don’t leave children unattended in the hot tub or in its proximity. Drowning hazard! DANGER! Wet surfaces can be slippery. Danger of injury! 6. -
Page 20: Warranty
7. Warranty The warranty concerns defects in materials and production defects, and is valid for 36 months except for equipment which is guaranteed for 24 months. The warranty is valid if the user has read and complied with the product’s operating and maintenance instructions. NOTE! For products for commercial use, other warranties apply.
