P.O. Box 2758
Windsor, Nova Scotia, B0N 2T0
Phone: 902-798-2261
www.nu-airventilation.com
Email: nuair@nu-airventilation.com

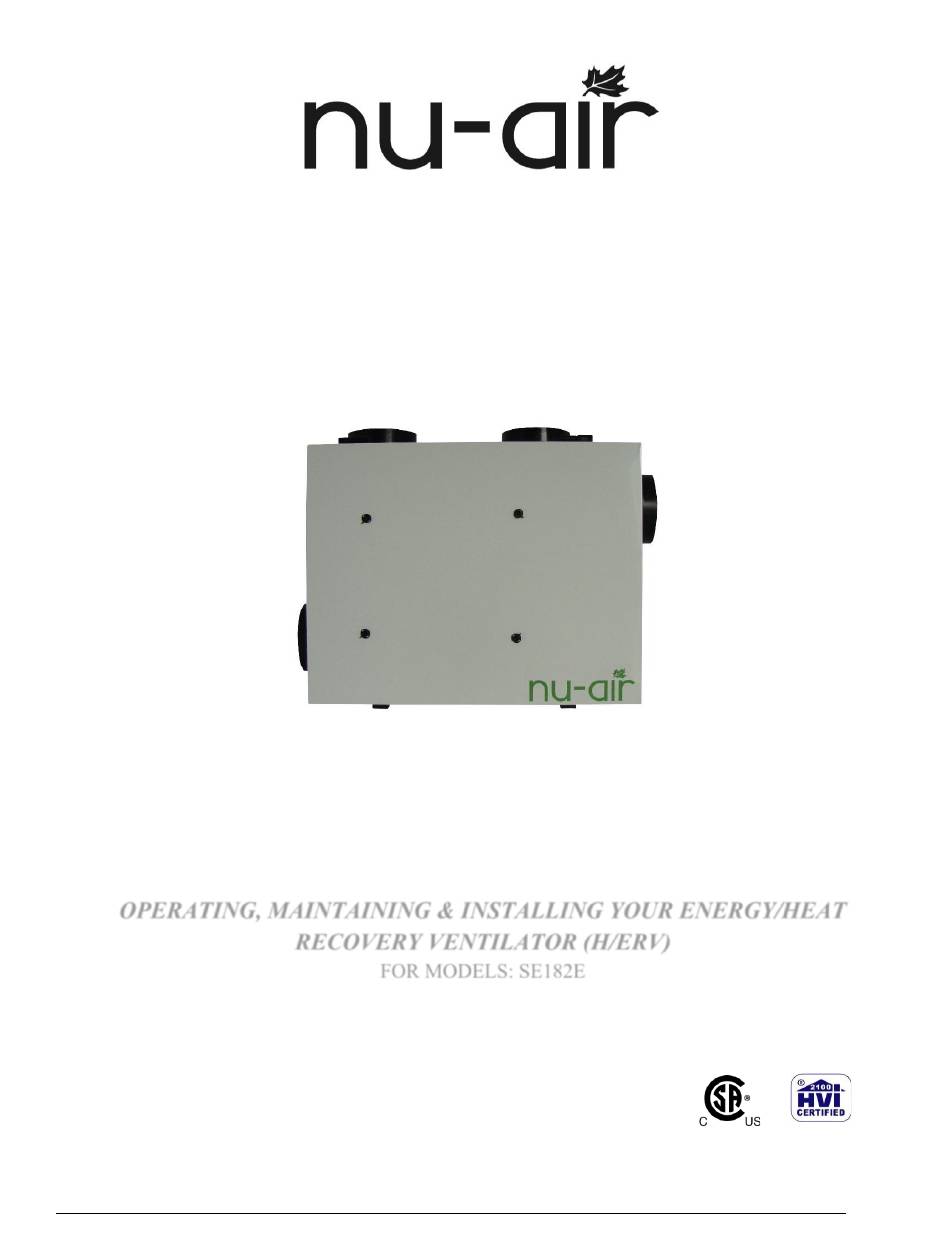

SE SERIES
OPERATING, MAINTAINING & INSTALLING YOUR ENERGY/HEAT
RECOVERY VENTILATOR (H/ERV)
FOR MODELS: SE182E
Specifications, dimensions and ratings may change without notice
.
as a result of ongoing product development and improvements
Rev. 1.0 September, 2022
Advertisement
Table of Contents
Related Manuals for Nu-Air SE Series
Summary of Contents for Nu-Air SE Series
- Page 1 P.O. Box 2758 Windsor, Nova Scotia, B0N 2T0 Phone: 902-798-2261 www.nu-airventilation.com Email: nuair@nu-airventilation.com SE SERIES OPERATING, MAINTAINING & INSTALLING YOUR ENERGY/HEAT RECOVERY VENTILATOR (H/ERV) FOR MODELS: SE182E Specifications, dimensions and ratings may change without notice as a result of ongoing product development and improvements...
- Page 2 NEVER attempt to repair or service any internal component of this H/ERV while the unit is plugged in or running. DO NOT use your ventilation system to exhaust flammable fumes or gasses. ALWAYS contact your Nu-Air representative if you have any questions or comments about the operation or maintenance of your Nu-Air H/ERV—we are here to help you!
-
Page 3: Table Of Contents
Balancing Air Flows ..........................10 CONTROL OPTIONS & CONTROL WIRING ......................11 12 VDC Control............................11 Nu-Air 24 VAC Controls and Other 24 VAC Control Options ............13 NAV-460 20-40-60 Minute Timer & Wiring ..................13 Nu-Air DSTAT-1, Win-1 & Win-20 Timer ..................13 Status LEDs &... -
Page 4: System Fuction/Operating Tips
1. SYSTEM FUCTION/OPERATING TIPS A. Powerful, centrifugal blowers bring fresh air into your home while an equal amount of stale, humid air is exhausted to the outside. This is NU-AIR’s balanced central ventilation system. B. Incoming fresh air is filtered before flowing through the heat exchange core. -
Page 5: Installation
▪ Removable terminal blocks for timers, remote controls, furnace interlock. A 4-wire terminal block for Nu-Air 12 VDC controls and a 10-wire terminal block for 24 V controls are provided with the unit. -
Page 6: Installation System Options
Installation System Options Before installing your H/ERV, please read these instructions for correct installation. The Nu-Air H/ERV is a self-contained system that is ready to be installed. There are three commonly used and approved methods of installation. 2.3.1. The Fully Ducted System This system uses an independent duct system for supply and exhaust air. -
Page 7: Ducting To The Outside
INSTALLATION NOTES: 1) When selecting an installation option, consideration should be given to the increased electrical consumption of the furnace fan. The way that your Heat/Energy-recovery ventilator is installed may make a significant difference to the electrical energy that you will use. To minimize the electricity use of the Heat/Energy-recovery ventilator, a stand-alone fully ducted installation is recommended. -
Page 8: Mounting, Noise Control, Orienting The Unit (Se182 Door/Safety Switch)
For maximum efficiency, the H/ERV should be installed in a heated area. The H/ERV is designed to be hung from the ceiling by way of the anti-vibration straps supplied. Avoid hanging the H/ERV directly below a bedroom or other quiet area. Your unit comes with Nu-Air EZ-Level adjustable hanging straps for easy mounting and leveling. - Page 9 2.5.1. SE182E: Orienting the Unit, Mounting the Safety/Door Switch The SE182E has 2 doors and two cut-outs to accept the safety/door switch so that the unit can be oriented in the desired direction very quickly. Locate the black-sheathed, red spade-connector wires for: A. the power cord, and B. circuit board Line voltage.
-
Page 10: Ductwork
2.5.2. Connecting To Other Equipment - Residential Applications Interconnection with a forced air furnace duct system is permissible; however, your H/ERV is not intended to be connected to any other equipment or appliances. Ductwork An engineer or other qualified person should design the duct system. •... -
Page 11: Balancing Air Flows
Balanced air flow between the supply and exhaust air streams is essential to the performance of an H/ERV. With the SE Series, changing motor speeds or balancing is quick and simple with two buttons recessed slightly into the unit’s cabinet—see next section. NO BALANCING DAMPERS ARE REQUIRED. -
Page 12: Control Options & Control Wiring
2.8.1. Adjusting Fan Speed for Balancing and Capacity Requirements For high-speed adjustment/balancing, initiate high speed (e.g. R-Hi jumper wire, or use remote control), then: 1. Press and hold either the FRESH air or EXHAUST air pushbuttons (not both) for 3 Seconds to initiate SPEED ADJUST MODE. - Page 13 ES Tx and Mx Controls and their Functions Control Description Functions ES-T1 20-40-60 minute timer Initiates timed high speed when unit is in low speed or standby. ES-M1 Off, Standby, Low, Full-time in standby, low speed or high speed. High ES-M2 Off, Standby, Low, 20 Full-time in standby, low speed, or a cycle of 20 min.
-
Page 14: Nu-Air 24 Vac Controls And Other 24 Vac Control Options
OR a unit-mounted jumper wire) set to one of its operation modes. Nu-Air DSTAT-1, Win-1 & Win-20 Timer Nu-Air offers 24 VAC controls which provide basic functions and easy operation. Other 24 VAC controls might also be used, such as CO2 sensors, programmable timers and ventilation-equipped/smart thermostats. - Page 15 3.4.1. Wiring Nu-Air 24 VAC Controls and Other 24 VAC Options Using a 3 mm flat head screwdriver, connect 2-4-conductor wire according per requirements to the 24 VAC (10-wire) removable terminal block provided. 3.4.1.1. DSTAT-1 For intermittent high speed operation, connect Nu-Air PN DSTAT-1 to R and Hi terminals.
- Page 16 3.4.1.3. Win-20 Up to 6 Win-20 timers may run off of one system. PWR (red) WIN-20 can be combined with ES Series controls or 24V controls discussed in this document. LED (yellow) For Win-20-2 wiring, R and TS terminals are used. SWITCH (black) If you are using ONLY a WIN-20(s) to control your...
-
Page 17: Status Leds & Mode Of Operation
Status LEDs & Mode of Operation CONDITION LED AND STATUS NO LED UNIT/TRANSFORMER IS NOT POWERED UNIT OFF Red is off, Green is blinking slow, every 1 s. Also indicates processor is programmed and running. STANDBY Green is OFF. Red led is blinking slow, every 1 s. EXHCHANGE LOW SPEED Green ON. -
Page 18: Annual Servicing
Exterior Hoods Regularly check the outside vents and clean any obstructions such as grass, leaves or other debris. Do not replace the screen with mesh smaller than 1/4" as this will restrict airflow. During winter operation, ensure snow and frost does not build up and restrict or block openings. -
Page 19: Trouble Shooting
7. TROUBLE SHOOTING SYMPTOM EXPLANATION ANSWER • • The humidity level seems H/ERV air flows incorrectly balanced. Balance air flow(s). • • too low. Dehumidistat control set too low. Increase dehumidistat. • • Lifestyle of the resident(s). Humidifiers may need to be added. •... -
Page 20: Electrical Schematics
8. ELECTRICAL SCHEMATICS SE182E Rev 1.0 September, 2022... -
Page 21: Warranties
Delivery and labour costs are your responsibility. 5 Year ERV Core Warranty If the energy recovery (ERV) core in your NU-AIR Energy Recovery Ventilator fails due to a defect in material or workmanship NU-AIR Ventilation Systems Inc. will supply a new core FOB Factory to replace the defective part. -
Page 22: Notes/Service Record
10. NOTES/SERVICE RECORD Rev 1.0 September, 2022...
