Lorex LW2002 Series Quick Start Manual

PORTABLE COLOR LCD DIGITAL WIRELESS
MONITORING SYSTEM
LW2002 SERIES - QuICk START GuIDE

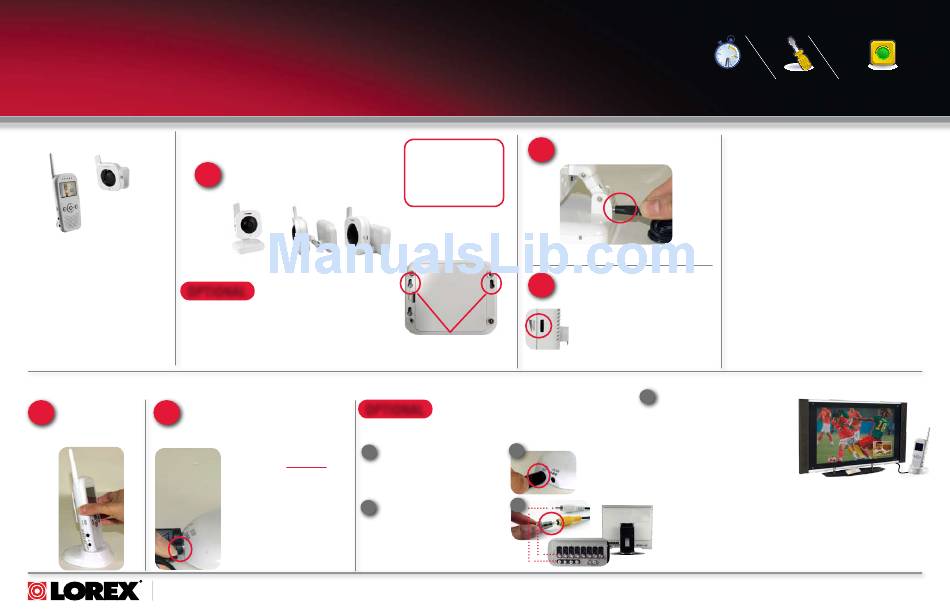

Getting Started

A.

The Digital Wireless Surveillance System
comes with the following components:
1 x Wireless Receiver
1 x Receiver Cradle
1 x Wireless Camera(s)*
OPTIONAL
1 x Power Adaptor (for receiver)
1 x Power Adaptor (for camera)*
1 x RCA Audio/Video Cable
Instruction Manual
Quick Start Guide
*Number of cameras and power adaptors may vary
by model. Check your package for specific content
information.
B. Connect the Receiver
Place the Receiver Cradle Plug the AC adaptor power output cable into the
 2
or Receiver in a location 9V POWER input of the Cradle or directly into the
that offers clear reception Receiver. Plug the power plug into a wall outlet or
with your camera(s). surge protector.
www.lorexcctv.com
Installing the Camera
Camera Positioning: The Camera can be placed on
a flat surface, or wall mounted. The versatile stand
allows for several different mounting options.
Desk/Counter Mount Wall Mount
Wall Mounting: Mark the position of
the screw holes on the wall.
• Drill holes and insert 2 screws.
• Firmly attach the camera to the wall by
placing the stand over the installed
screws and pushing the base
downwards to secure.
(Determine if you will be using the Receiver Cradle, or connecting the cables directly to the receiver before installation)
OPTIONAL
Connect one end (black connector

NOTE: Leave the receiver to charge
plug) of the RCA Audio/ Video
for 4 hours prior to first time use so
Cable to the Receiver or Receiver
the built-in rechargeable receiver
Cradle.
battery is fully charged. DO NOT
remove the power cable from the
Connect the other ends (Audio
receiver / from the cradle during
2
- white plug, Video - Yellow plug)
initial charging process. After initial
of the RCA cable to your Monitor
charge, charge as required.
or TV.
Once the Receiver is fully charged the
NOTE:
LED light above the DC 9V input on the
when it is connected to a Monitor or TV.
receiver will turn from RED to GREEN.
Connect the Power Adaptor to the 9V
2
NOTE: AVOID INSTALLING IN
Input on the back of the camera.
A LOCATION WHICH REQUIRES
THE WIRELESS SIGNAL TO PASS
THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS
WILL REDUCE THE
TRANSMISSION RANGE.
NOTE: See Page 2 for battery operation instructions.
Set the alarm sensitivity on the camera.
3
Turn the wheel on the side of the camera
all the way down to decrease sound
sensitivity. This means that the alarm is
only triggered by loud noises. Turning
the wheel the other way will result in
the opposite. See the User's Manual for
Position the Base holes over the
complete details on the alarm function.
screws. Slide the base downwards.
View your Receiver images on any Monitor or TV
with RCA inputs (note that this requires the receiver
to be connected to AC power, not battery power).

2
The receiver monitor turns off
under 15 minutes under 30 minutes
Hand Tools
Time Tools
utes*
Under 15 Min
Hand Tools
* Installation time may vary based on
application and camera location
Skill Level
NOTE: Before you install a camera, carefully plan where and
how it will be positioned, and where you will route the cable that
Intermediate
easy
connects the camera to the power adaptor. Before starting permanent
installation, verify its performance by observing the image on a
monitor when the camera is positioned where it will be permanently
installed.
Wireless cameras require a power source (either an electrical outlet
or battery power) to operate.
When adding cameras that were not included in the original box,
you will need to pair up the camera with the receiver. Please refer to
the Camera Pairing Section of the User Manual.
Auto-Mute Function : If you notice the speaker turning on and off,
this is the innovative Auto-Mute function. If no sound is detected by
the camera, the speaker will automatically shut off to prevent the
constant hiss of ambient noise (common in any environment); the
speaker will automatically turn on when any sound is detected.
This serves as an added security feature that can alert you of any
occurrence detected by the camera.
Turn on Monitor or TV, and switch to
3
the video channel that the receiver has
been connected to.
If your TV has a PIP feature, you
Tip 1:
can have the camera images displayed in
the PIP window. Check your TV manual
for info on PIP feature (if available).
Tip 2: Connect to RCA input on a VCR,
DVD recorder or Surveillance DVR to
record video from the LW2002 system.
NOTE: The purpose of the AV output is for convenience only. When using with large
screen TV/Monitor, the picture might be grainy as the camera limits video resolution to
VGA (640x480 pixels). This is not a product defect. For best performance use with
TV/Monitor PIP (Picture in Picture) function. Check your TV/Monitor product manual to
see if this feature is available on your TV/Monitor. This allows you to view TV or other
video source and see video from the camera in a small window on the same screen.
LW2002 Series Quick Start Guide_R3
under 60 minutes over 60 minutes Route
Skill Level
Hardware Hi Speed
Skills - Easy
Router
Plug & Play connections,
Intermediate
easy
On screen set up
advanced
