LW Scientific MiniVID RCA Quick Start Manual

Introduction

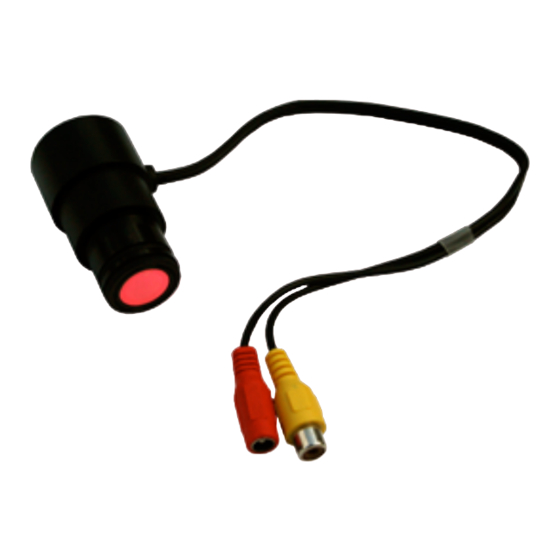

The MiniVID eyepiece camera is available with an RCA output
connection. Plug it in to your TV or monitor with RCA video input.
Then, attach it to any microscope for instant video micrography.
The innovative MiniVID eyepiece camera slips into any standard
microscope eyepiece tube, in place of the eyepiece, for crisp
imaging in an instant.

Unpacking and Setup

The MiniVID RCA comes delivered in a blue case with the following parts. If any parts aremissing, please contact your
distributor or LW Scientific.
•1-MiniVID Camera
•1-Power Cord
•1-30mm adapter
•1-30.5mm adapter

Setup

First, connect the power cable into the plug on the cable from the MiniVID. Then plug the transformer into a 110v wall
outlet. The red light on the top of the MiniVID should light up. If it does not, please ensure the outlet is working properly
then call LW Scientific.
Now connect the RCA connector from the Minivid into the "Video In" jack on a TV, VCR, projector, or other video
device. Change the setting on your TV or other device to recognize the input from the RCA jack.
