LW Scientific BioVID HD/SD Instruction Manual

Depress the "CURSOR" button to graphically show cross hairs
for calibrated measuring.
Screen shot of HDTV with graph (after depressing the
"CURSOR" button).

Specifications

RESOLUTION
1280 x 720
IMAGE SENSOR
1 / 2.5" 5mo Aptina MT9P003 CMOS color
Pixel size: 2.2um x 2.2um
VIDEO OUTPUT
30 frames per second at 720p
1280 (H) x 720 (V)
Spectral range: 380 - 650nm
POWER
AC Input: 100-240Vac 50/60Hz adapter
DC Output: 5Vdc 1 amp to camera
OPERATING CONDITION
0°C ~ 40°C (32°F to 104°F)
OUTPUT
HDMI connector
SD card slot
P. 770.270.1394 F. 770.270.2389
BUTTONS
Red: Cursor on/off
Blue: Save to SD card
Yellow: Auto exposure and white balance
White: Freeze / stream
WEIGHT AND DIMENSIONS
Height: 2.7" (68mm)
Length: 2.7" (68mm)
Width: 3.6" (92mm)
Weight: 0.55lbs (0.24kg)
MKT-7.5.3-L-153 | Rev 0
865 Marathon Parkway Lawrenceville GA 30046
BioVID HD/SD BioVID HD/SD
The BioVID HD/SD camera from LW Scientific has incredible 720p resolution, allows you to freeze images, and take
crystal clear digital pictures, all with very simple buttons. Images are stored on the included SD card that allows you
to easily transfer images to your Mac, PC, or Tablet (with SD card slot).
Included with your camera:
• 6 foot HDMI cable
• 4G SD card
• Power adapter
• 5mm C-Mount adapter ring
Please read and complete the warranty form online at LWScientific.com/warranty_form. The warranty form
documents your purchase. Failure to fill out the warranty form may void any warranty claims on the unit.
P. 770.270.1394 F. 770.270.2389
Instruction Manual

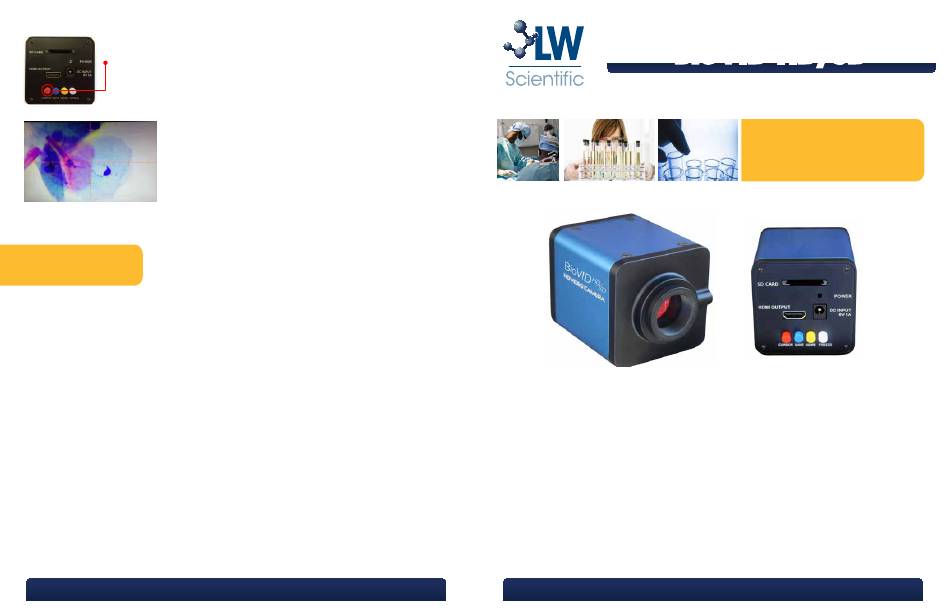

Model pictured:
BioVID HD/SD Microscope Camera
